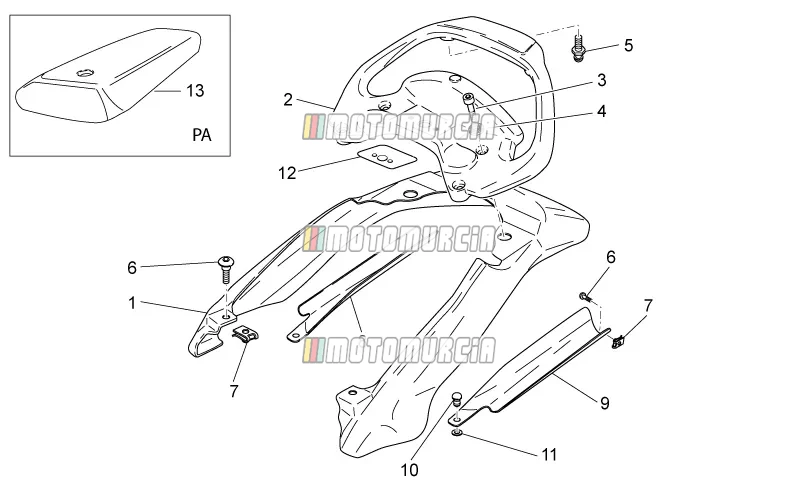

Exploded view Rear Body - Undersaddle — Moto Guzzi Breva IE 750 2003
‹ Back to model
Moto Guzzi Breva IE 750 2003
Products
1 Rear tail black Backorder
-
- Colour: Guzzi Black 2006
- Colour: Guzzi Black/Light Grey 2007
- Year of manufacture: 2006
- Year of manufacture: 2007
Fairing, rear, black Piaggio Group · 977322 Backorder · Shipped in 2–4 weeks€ 333,72 -
- Colour: Cyan 2006
- Year of manufacture: 2006
Rear Fairing, blue Piaggio Group · 977458 Backorder · Shipped in 2–4 weeks€ 329,23 -
977537 Rear fairing, white
- Colour: Mica White 2006 ica White 2006
- Year of manufacture: 2006
-
- Colour: Public Authorities Mauritius
Rear Fairing, white Piaggio Group · GU32472681 Backorder · Shipped in 2–4 weeks€ 894,94 -
Rear Fairing, primed Piaggio Group · GU32573110 Backorder · Shipped in 2–4 weeks€ 182,30
-
GU32573111 Rear tail red
- Colour: Breva Red 2003
Rear Fairing, primed Piaggio Group · GU32573110 ↻ Replaces GU32573111, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 182,30 -
- Colour: Ollare Black 2003
Rear Fairing, black Piaggio Group · GU32573112 Backorder · Shipped in 2–4 weeks€ 229,90 -
- Colour: Grigna Grey 2003
Rear Fairing, grey Piaggio Group · GU32573113 Backorder · Shipped in 2–4 weeks€ 229,90 -
- Colour: Race Red 2005
- Colour: Race Red 2006
Rear Fairing, red Piaggio Group · GU32573114 Backorder · Shipped in 2–4 weeks€ 316,46
2 Handle Backorder
-
- Year of manufacture: 2006
- Year of manufacture: 2007
Handle Piaggio Group · 977302 Backorder · Shipped in 2–4 weeks€ 133,10 -
- Colour: Breva Red 2003
- Colour: Grigna Grey 2003
- Colour: Ollare Black 2003
- Colour: Race Red 2005
Grab Handle Piaggio Group · GU32464310 Backorder · Shipped in 2–4 weeks€ 254,31
3 10 - Screw (M8x30) Available
-
- Colour: Public Authorities Mauritius
Screw M8x30 Piaggio Group · GU98682430 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 0,99
4 Washer 8.4x15 Available
-
- Second series
- See spare parts comm. no. 010 of 1999
- Touring version
- Year of manufacture: 2009
Shim 8,4x15 mm Piaggio Group · GU03270300 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 0,99
5 Stud bolt Available
-
Stud Screw Piaggio Group · GU03467343 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 9,56
6 Screw Available
-
- Country: Australia
Flanged Screw M5x9 Piaggio Group · AP8152339 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,35
7 Clip nuts (M5) Available
-
Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,47
8 Right tool box Backorder
-
Tool Box right Piaggio Group · GU32479611 Backorder · Shipped in 2–4 weeks€ 8,70
9 Left tool box Backorder
-
Tool Box left Piaggio Group · GU32479610 Backorder · Shipped in 2–4 weeks€ 6,38
10 Pin
-
AP8220396 Pin Quantity needed: 2No longer available
11 Washer Available
-
- ETV Capo Nord Standard version
Shim 7x15x1,5 mm Piaggio Group · AP8120592 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 3,99
12 Guard decal Backorder
-
Decal Piaggio Group · GU32944210 Backorder · Shipped in 2–4 weeks€ 10,87
13 Saddle cover Backorder
-
- Colour: Public Authorities Mauritius
Seat Cowl Piaggio Group · GU32472881 Backorder · Shipped in 2–4 weeks€ 254,10
