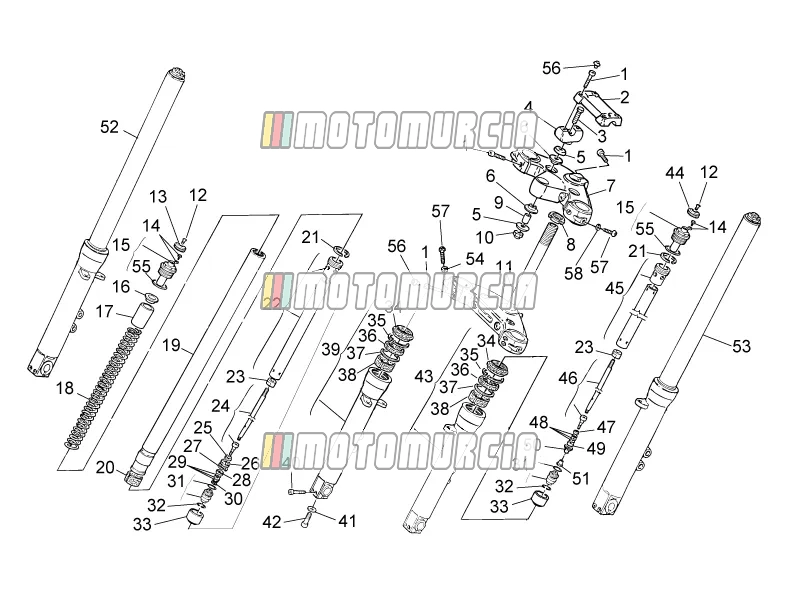

Exploded view — Front Fork

‹ Back to model
Moto Guzzi California Black Eagle 1100 2009 Moto Guzzi California Black Eagle 1100 2009
Front Fork

Products

1 Screw Backorder GU98622430
  • Screw M8x30 Piaggio Group · GU98622430 · Quantity needed: 11 Backorder
    € 1,77
2 U-bolt Backorder GU03500645
3 Screw (M10x60) Available GU98052560
  • Screw M10x60 Piaggio Group · GU98052560 · Quantity needed: 2 Available
    € 5,59
4 Lower U-bolt Backorder GU0350024515
5 Washer Available AP8123721
  • Sleeve Piaggio Group · AP8123721 · Quantity needed: 4 Available
    € 7,82
6 Spacer (rubber) Available AP8144222
  • Rubber Piaggio Group · AP8144222 · Quantity needed: 4 Available
    € 8,41
7 Fork head black Backorder GU03493145
  • Yoke black Piaggio Group · GU03493145 Backorder
    € 350,90
8 Ring nut Backorder GU03498100
  • Standard nut Piaggio Group · GU03498100 Backorder
    € 27,53
9 Spacer Available GU91181039
  • Spacer Piaggio Group · GU91181039 · Quantity needed: 2 Available
    € 11,36
10 Nut M10X1,5 Backorder GU92630110
  • Standard nut Piaggio Group · GU92630110 · Quantity needed: 2 Backorder
    € 4,84
11 Fork base black Backorder GU03494045
12 Screw Available GU03530504
  • Screw Piaggio Group · GU03530504 · Quantity needed: 2 Available
    € 2,18
13 RH adjustment knob rebound Backorder GU03530505
  • Lid, right Piaggio Group · GU03530505 Backorder
    € 71,16
14 Screw complete M4x6 Available AP8163369
  • Screw M4x6 Piaggio Group · AP8163369 · Quantity needed: 2 Available
    € 5,60
15 Plug cpl. GU03530507 No longer available
  • GU03530507 Plug cpl. Quantity needed: 2
    No longer available
16 Cup Backorder GU03530508
  • Spring Guide Piaggio Group · GU03530508 · Quantity needed: 2 Backorder
    € 10,72
17 Preload tube Backorder GU03530509
  • Preload Tube Piaggio Group · GU03530509 · Quantity needed: 2 Backorder
    € 12,32
18 Spring Backorder GU03526600
  • Return Spring Piaggio Group · GU03526600 · Quantity needed: 2 Backorder
    € 75,49
19 Sleeve Available GU03525400
  • Front Forks Piaggio Group · GU03525400 · Quantity needed: 2 Available
    € 341,53
20 Bush AP8163098 No longer available
  • AP8163098 Bush Quantity needed: 2
    No longer available
21 Ring Backorder GU03530511
  • Slide Bushing Piaggio Group · GU03530511 · Quantity needed: 2 Backorder
    € 19,71
22 RH hub Backorder GU03530512
23 Return nut GU03530513 No longer available
  • GU03530513 Return nut Quantity needed: 2
    No longer available
24 RH shock absorber GU03530514 No longer available
  • GU03530514 RH shock absorber
    No longer available
25 Return spring Backorder GU03530515
  • Return Spring Piaggio Group · GU03530515 Backorder
    € 2,35
26 RH piston rebound GU03530516 No longer available
  • GU03530516 RH piston rebound
    No longer available
27 RH piston segmentrebound Available GU03530517
  • Locking Ring Piaggio Group · GU03530517 Available
    € 18,13
28 RH needle rebound Backorder GU03530518
  • Cone Piaggio Group · GU03530518 Backorder
    € 31,44
29 Calibration blade Backorder GU03530519
  • Shim Piaggio Group · GU03530519 · Quantity needed: 5 Backorder
    € 2,47
30 Nut M6x1 h.6 AP8163350 No longer available
  • AP8163350 Nut M6x1 h.6
    No longer available
31 Stroke limit stop Backorder GU03530521
  • Plug Piaggio Group · GU03530521 · Quantity needed: 2 Backorder
    € 67,09
32 O-Ring Backorder GU03530522
  • O-Ring Piaggio Group · GU03530522 · Quantity needed: 2 Backorder
    € 6,32
33 Adaptor Backorder GU03530523
  • Sleeve Piaggio Group · GU03530523 · Quantity needed: 2 Backorder
    € 46,09
34 Fork dust seal (D=45) Available AP8163097
35 Stop ring D.63 Available AP8163096
36 Fork oil seal Available AP8163095
37 Cup 58x46x3 Available AP8163094
  • Sleeve 58x46x3 Piaggio Group · AP8163094 · Quantity needed: 2 Available
    € 14,07
38 Bush AP8163093 No longer available
  • AP8163093 Bush Quantity needed: 2
    No longer available
39 RH sleeve Backorder GU03522501001
40 Screw GU98620340 No longer available
  • GU98620340 Screw Quantity needed: 4
    No longer available
41 Seal washer Available AP8123206
  • Sealing Disk Piaggio Group · AP8123206 · Quantity needed: 2 Available
    € 15,28
42 Screw Available AP8203200
  • Screw Piaggio Group · AP8203200 · Quantity needed: 2 Available
    € 14,34
43 LH sleeve Available GU03522601001
44 LH adjustment knob comp. Backorder GU03530531
  • Lid, left Piaggio Group · GU03530531 Backorder
    € 65,80
45 LH hub Backorder GU03530532
46 LH shock absorber Backorder GU03530533
  • Bar left Piaggio Group · GU03530533 Backorder
    € 66,55
47 Cup Backorder GU03530534
  • Sleeve Piaggio Group · GU03530534 Backorder
    € 12,90
48 Calibration blade 17 mm GU03530537 No longer available
49 LH needle compression Available GU03530538
  • Cone Piaggio Group · GU03530538 Available
    € 34,34
50 LH piston compression GU03530539 No longer available
  • GU03530539 LH piston compression
    No longer available
51 Nut Backorder GU03530540
  • Standard nut Piaggio Group · GU03530540 Backorder
    € 16,29
52 RH hub cpl. Backorder GU03490611
  • Fork Leg right Piaggio Group · GU03490611 Backorder
    € 417,45
53 LH hub cpl. Backorder GU03490711
  • Fork Leg left Piaggio Group · GU03490711 Backorder
    € 417,45
54 Washer (6,4x13x1,5) Available GU95005306
  • Shim Piaggio Group · GU95005306 · Quantity needed: 6 Available
    € 1,48
55 O-Ring Available AP8163104
  • O-Ring Piaggio Group · AP8163104 · Quantity needed: 2 Available
    € 2,53
56 Plug Available GU23943410
  • Plug Piaggio Group · GU23943410 · Quantity needed: 8 Available
    € 3,98
57 Screw Available GU98370619
  • Screw Piaggio Group · GU98370619 · Quantity needed: 6 Available
    € 1,77
58 Spring Backorder GU03526601
  • Spring Piaggio Group · GU03526601 Backorder
    € 11,14

More drawings of this model

View all →
