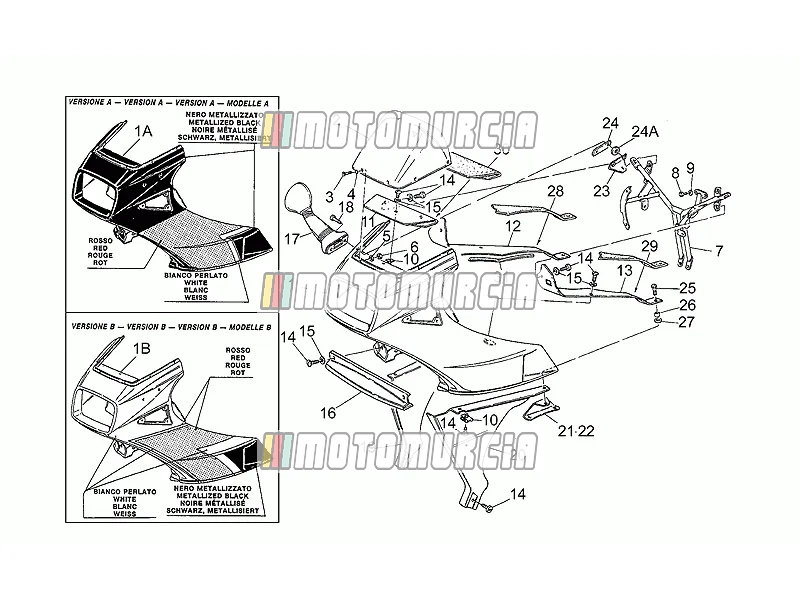

Exploded view Fairing 1988 — Moto Guzzi Le Mans 1000 1983

‹ Back to model

Moto Guzzi Le Mans 1000 1983

Products

Position: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

1 Windshield GU28575490 No longer available

GU28575490 Windshield
- Colour: Red
No longer available
GU28575479 Naked fairing
- Letter "A" in drawing
No longer available
GU285754781 Naked fairing
- Colour: Unpainted
No longer available
GU28575491 Naked fairing
- Letter "B" in drawing
No longer available

2 Windshield GU28577278 No longer available

GU28577278 Windshield
No longer available

3 Screw Available GU98260416

Screw Piaggio Group · GU98260416 · Quantity needed: 6 Available · Shipped in 3–5 working days

€ 0,99

4 O-Ring Backorder GU90706035

O-Ring Piaggio Group · GU90706035 · Quantity needed: 6 Backorder · Shipped in 2–4 weeks

€ 1,61

5 Washer Available GU95007204

Washer Piaggio Group · GU95007204 · Quantity needed: 6 Available · Shipped in 3–5 working days

€ 1,73

6 Nut Backorder GU92781040

- Titanium version 2003
- V11 Scura
- V11 Sport Naked
Standard nut Piaggio Group · GU92781040 · Quantity needed: 6 Backorder · Shipped in 2–4 weeks

€ 1,29

7 Upper fairing supp. GU28578678 No longer available

GU28578678 Upper fairing supp.
No longer available

8 Screw Available GU98084316

Hexagon Screw M6x16 Piaggio Group · GU98084316 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 1,44

9 Washer Available GU95000206

- Country: United States of America
Washer Piaggio Group · GU95000206 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 1,29

10 Clip GU28576590 No longer available

GU28576590 Clip Quantity needed: 3
- See spare parts comm. no. 005 of 1998
- See spare parts comm. no. 016 of 1997
No longer available

11 Central dashboard GU28571778 No longer available

GU28571778 Central dashboard
No longer available

12 RH Dashboard GU28576278 No longer available

GU28576278 RH Dashboard
No longer available

13 LH Dashboard GU28576378 No longer available

GU28576378 LH Dashboard
No longer available

14 Screw GU98326016 No longer available

GU98326016 Screw Quantity needed: 13
- Colour: Milk white 410
- First series
- See technical communication no. 296 of 1995
- Country: Germany
No longer available

15 Washer (plastic) Available GU66478610

- Touring version
Washer 6x17x1 mm Piaggio Group · GU66478610 · Quantity needed: 9 Available · Shipped in 3–5 working days

€ 2,13

16 Fairing lower support GU28576990 No longer available

GU28576990 Fairing lower support
- Colour: Red
No longer available
GU285769781 Fairing lower support
- Colour: Unpainted
No longer available
GU28576991 Fairing lower support
- Colour: Black
No longer available
GU28576979 Fairing lower support
- Colour: White
No longer available

17 Rearview mirror GU17769861 No longer available

GU17769861 Rearview mirror Quantity needed: 2
- Carabinieri
- Carabinieri version
- Country: Germany
No longer available

18 Screw GU98822320 No longer available

GU98822320 Screw Quantity needed: 4
No longer available

19 Lower RH fairing sect. GU28570379 No longer available

GU28570379 Lower RH fairing sect.
- Colour: Red
No longer available
GU28570378 RH Under-fairing
- Colour: Black
No longer available

20 Lower LH fairing sect. GU28570478 No longer available

GU28570478 Lower LH fairing sect.
- Colour: Black
No longer available
GU28570479 LH Under-fairing
- Colour: Red
No longer available

21 RH fairing fixing plate GU285708781 No longer available

GU285708781 RH fairing fixing plate
No longer available

22 LH support GU285708791 No longer available

GU285708791 LH support
No longer available

23 Plate GU28579478 No longer available

GU28579478 Plate Quantity needed: 2
No longer available

24 Spacer (rubber) Available GU93110060

Rubber Piaggio Group · GU93110060 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 1,51

25 Screw GU98326021 No longer available

GU98326021 Screw Quantity needed: 2
- See technical communication no. 304 of 1995
No longer available

26 Spacer GU91180607 No longer available

GU91180607 Spacer Quantity needed: 2
- Digiplex ignition unit
- Second series
- See spare parts comm. no. 015 of 1997
- Country: Germany
No longer available

27 Spacer (rubber) Available GU91551086

Rubber Bush Piaggio Group · GU91551086 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 8,59

28 RH vibration damper GU28576878 No longer available

GU28576878 RH vibration damper
No longer available

29 LH vibration damper GU28576778 No longer available

GU28576778 LH vibration damper
No longer available

30 Central vibr. damper GU28571878 No longer available

GU28571878 Central vibr. damper
No longer available

31 Dashboard gasket GU28579778 No longer available

GU28579778 Dashboard gasket Quantity needed: 2
No longer available
