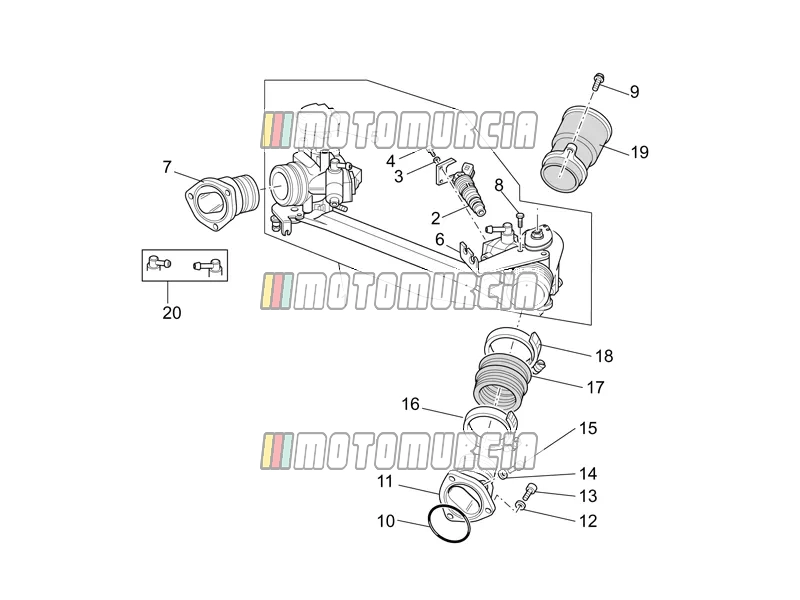

Exploded view — Throttle Body

Products

1 Throttle body GU02112550 No longer available

• GU02112550 Throttle body
  No longer available

2 Injector IW724 GU30530500 No longer available

• GU30530500 Injector IW724 Quantity needed: 2
  No longer available

3 Washer GU95020104 No longer available

• GU95020104 Washer Quantity needed: 4
  No longer available

4 Screw Backorder GU98200410

•

  Screw Piaggio Group · GU98200410 · Quantity needed: 4 Backorder

  € 1,88

  Add to cart

5 Throttle body sensor Available GU30530501

•

  Throttle valve sensor Piaggio Group · GU30530501 Available

  € 229,90

  Add to cart

6 Maintenance Backorder GU02110550

•

  Bracket for flap body Piaggio Group · GU02110550 Backorder

  € 30,25

  Add to cart

7 Intake Manifold Right GU02115050 No longer available

• GU02115050 Intake Manifold Right
  No longer available

8 Screw Available AP8152272

•

  Flanged Screw M5x12 Piaggio Group · AP8152272 · Quantity needed: 2 Available

  € 2,18

  Add to cart

9 Screw Available AP8152273

•

  Flanged Screw M5x15 Piaggio Group · AP8152273 · Quantity needed: 4 Available

  € 2,18

  Add to cart

10 Gasket GU90706552 No longer available

• GU90706552 Gasket Quantity needed: 2
  No longer available

11 Intake Manifold Left GU02115051 No longer available

• GU02115051 Intake Manifold Left
  No longer available

12 Washer Available GU95008206

•

  Shim 6,15x11x0,8 mm Piaggio Group · GU95008206 · Quantity needed: 6 Available

  € 2,78

  Add to cart

13 Screw Backorder GU98622325

•

  Screw M6x25 Piaggio Group · GU98622325 · Quantity needed: 6 Backorder

  € 1,29

  Add to cart

14 Washer 6,25x10x1,5 Available GU95100116

•

  Washer 6,25x10x1,5 mm Piaggio Group · GU95100116 · Quantity needed: 2 Available

  € 1,79

  Add to cart

15 Screw Backorder GU98310610

•

  Screw Piaggio Group · GU98310610 · Quantity needed: 2 Backorder

  € 1,82

  Add to cart

16 Clamp Backorder GU12548401

•

  Clamp Piaggio Group · GU12548401 · Quantity needed: 2 Backorder

  € 15,32

  Add to cart

17 Intake hose GU02114350 No longer available

• GU02114350 Intake hose Quantity needed: 2
  No longer available

18 Clamp GU12548201 No longer available

• GU12548201 Clamp Quantity needed: 2
  No longer available

19 Intake hose Available GU01114450

•

  Intake Boot Piaggio Group · GU01114450 · Quantity needed: 2 Available

  € 11,59

  Add to cart

20 Sparkplug caps kit Backorder GU02999200

•

  Nozzle Piaggio Group · GU02999200 Backorder

  € 47,19
