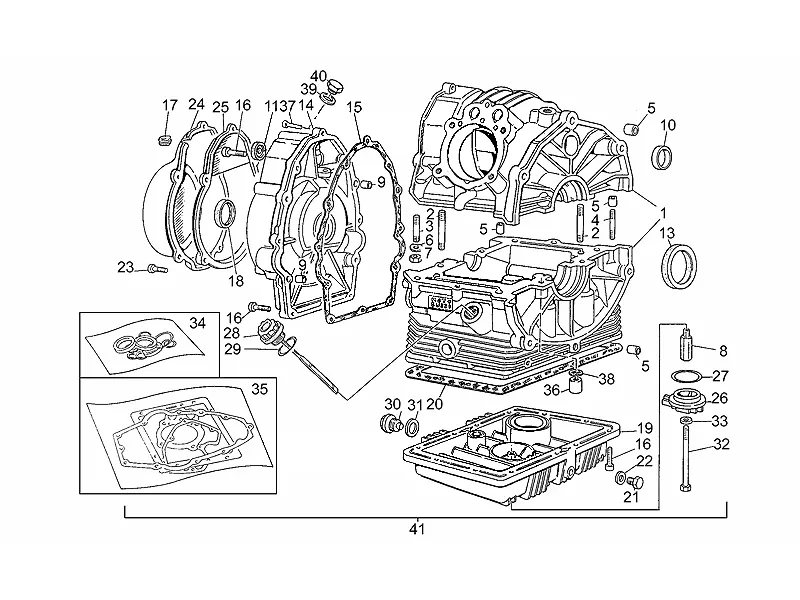

Exploded view — Crankcase

Products

1 Crankcase, grey GU31000380 No longer available

• GU31000380 Crankcase, grey
  No longer available

2 Stud bolt Available GU96451560

•

  Stud Screw Piaggio Group · GU96451560 · Quantity needed: 4 Available

  € 11,88

  Add to cart

3 Stud bolt Available GU96451430

•

  Stud Screw Piaggio Group · GU96451430 · Quantity needed: 4 Available

  € 5,58

  Add to cart

4 Stud bolt Available GU96508055

•

  Stud Screw Piaggio Group · GU96508055 · Quantity needed: 2 Available

  € 10,13

  Add to cart

5 Bushing Available GU19015020

•

  Adapter Sleeve Piaggio Group · GU19015020 · Quantity needed: 4 Available

  € 11,36

  Add to cart

6 Spring washer 8x15x0,3 Available GU61270300

•

  Snap Ring 8x15x0,3 mm Piaggio Group · GU61270300 · Quantity needed: 6 Available

  € 2,30

  Add to cart

7 Nut GU92602208 No longer available

• GU92602208 Nut Quantity needed: 6
  No longer available

8 Joint GU19003800 No longer available

• GU19003800 Joint
  No longer available

9 Bushing 6,6x9x13 Available GU19002020

•

  Adapter Sleeve 6,6x9x13 Piaggio Group · GU19002020 · Quantity needed: 2 Available

  € 8,71

  Add to cart

10 Cover GU19016320 No longer available

• GU19016320 Cover
  No longer available

11 Gasket GU90401530 No longer available

• GU90401530 Gasket
  No longer available

13 Oil seal Available GU90405367

•

  Oil seal Piaggio Group · GU90405367 Available

  € 37,32

  Add to cart
•

  Shaft Seal 53x72x10 mm Piaggio Group · 886365 Available

  € 61,46

  Add to cart

14 Timing cover, grey GU19001460 No longer available

• GU19001460 Timing cover, grey
  No longer available

15 Gasket - generator cover Available 887003

•

  Cover Gasket Piaggio Group · 887003 Available

  € 14,92

  Add to cart

16 Screw Backorder GU98622325

•

  Screw M6x25 Piaggio Group · GU98622325 · Quantity needed: 22 Backorder

  € 1,29

  Add to cart

17 Spacer (rubber) Available GU19007700

•

  Rubber Piaggio Group · GU19007700 Available

  € 5,31

  Add to cart

18 Oil seal (28x38x7) Available GU90402840

•

  Shaft Seal Piaggio Group · GU90402840 Available

  € 16,04

  Add to cart

19 Engine oil sump, blank GU27003585 No longer available

• GU27003585 Engine oil sump, blank
  No longer available

20 Sump gasket Available 887004

•

  Oil sump gasket Piaggio Group · 887004 Available

  € 12,20

  Add to cart

21 Oil drain plug (Magnetic) Available GU31003766

•

  Oil drain screw M10x1 Piaggio Group · GU31003766 Available

  € 16,82

  Add to cart

22 Washer gasket Available GU10528900

•

  Gasket Piaggio Group · GU10528900 Available

  € 5,05

  Add to cart

23 Screw 6x35 Available GU98620335

•

  Screw M6x35 Piaggio Group · GU98620335 · Quantity needed: 5 Available

  € 1,43

  Add to cart

24 Cover GU32001610 No longer available

• GU32001610 Cover
  No longer available

25 Flange Backorder GU27001136

•

  Gasket Piaggio Group · GU27001136 Backorder

  € 13,92

  Add to cart

26 Cover, blank GU19003400 No longer available

• GU19003400 Cover, blank
  No longer available

27 O-Ring Available GU90706444

•

  O-Ring Piaggio Group · GU90706444 Available

  € 1,61

  Add to cart

28 Oil load plug Available 883826

•

  Oil dipstick Piaggio Group · 883826 Available

  € 39,88

  Add to cart

29 Gasket GU90706282 No longer available

• GU90706282 Gasket
  No longer available

30 Oil unload plug Available GU12003702

•

  Screw Plug Piaggio Group · GU12003702 Available

  € 13,52

  Add to cart

31 Washer gasket (20,1x28x2) Available GU95100709

•

  Gasket 20,1x28x2 mm Piaggio Group · GU95100709 Available

  € 5,74

  Add to cart

32 Screw Available GU27152885

•

  Threaded bolts Piaggio Group · GU27152885 Available

  € 11,36

  Add to cart

33 Washer gasket (8,25x15x1) Available GU12154200

•

  Gasket 8,25x15x1 mm Piaggio Group · GU12154200 Available

  € 3,00

  Add to cart

34 Oil seals - set GU19999580 No longer available

• GU19999580 Oil seals - set
  No longer available

35 Engine gasket set GU19999021 No longer available

• GU19999021 Engine gasket set
  No longer available

36 Column nut Available GU13021900

•

  Knurled nut Piaggio Group · GU13021900 · Quantity needed: 4 Available

  € 16,37

  Add to cart

37 Screw (M6x30) Available GU98680330

•

  Screw M6x30 Piaggio Group · GU98680330 · Quantity needed: 2 Available

  € 2,78

  Add to cart

38 Washer Available GU95129180

•

  Shim 10,5x18x0,8 mm Piaggio Group · GU95129180 · Quantity needed: 4 Available

  € 1,29

  Add to cart

39 Gasket Available GU10154200

•

  Copper Flange Gasket Piaggio Group · GU10154200 Available

  € 5,00

  Add to cart

40 Cover GU95980119 No longer available

• GU95980119 Cover
  No longer available

41 Engine w/o gearbox MOTOPLAT GU31991080 No longer available

• GU31991080 Engine w/o gearbox MOTOPLAT
  No longer available
