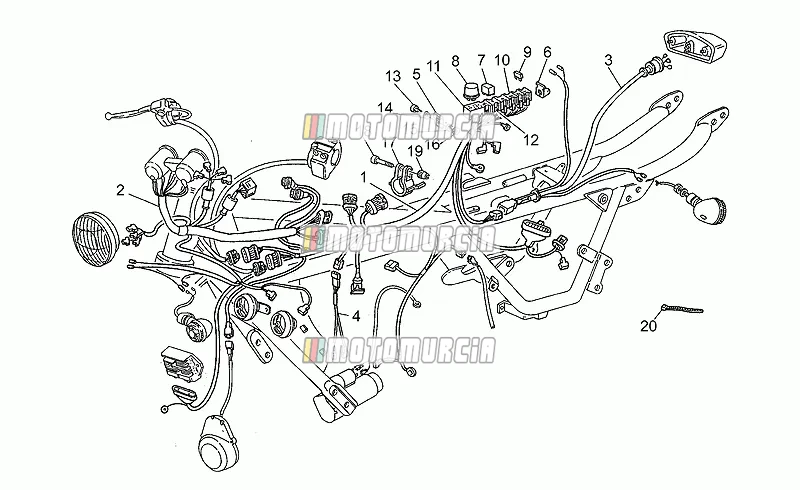

Exploded view — Electrical System I

Products

1 Electrical system GU31747167 No longer available

• GU31747167 Electrical system
  • From frame LF13200
  • Up to frame LG12199
  No longer available

2 Dashboard cable GU31747267 No longer available

• GU31747267 Dashboard cable
  • From frame LF13200
  • Up to frame LG12199
  No longer available

3 Taillight wiring harn. GU31747365 No longer available

• GU31747365 Taillight wiring harn.
  No longer available

4 Neutral sensor cable GU31724540 No longer available

• GU31724540 Neutral sensor cable
  No longer available

5 Right side clamp Backorder GU30477101

• GU30477101 Right side clamp
  • From frame LF13200
  • Up to frame LG12199


  Bracket right Piaggio Group · GU304771015 ↻ Replaces GU30477101, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 24,78

  Add to cart

6 LH plate Backorder GU30477200

• • From frame LF13200
  • Up to frame LG12199


  Bracket left Piaggio Group · GU30477200 Backorder · Shipped in 2–4 weeks

  € 10,87

  Add to cart

7 Relay Siemens A302/B1008 GU30732560 No longer available

• GU30732560 Relay Siemens A302/B1008 Quantity needed: 4
  No longer available

8 Flasher unit GU17750520 No longer available

• GU17750520 Flasher unit
  No longer available

9 FUSE 15A Available GU28742560

• GU28742560 FUSE 15A Quantity needed: 4


  Fuse 15 A Piaggio Group · 290860 ↻ Replaces GU28742560, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 2,86

  Add to cart

10 Fuse holder box Backorder GU30732200

•

  Fuse Box Piaggio Group · GU30732200 · Quantity needed: 4 Backorder · Shipped in 2–4 weeks

  € 10,43

  Add to cart

11 Maintenance Backorder GU30756100

• • From frame LF13200
  • Up to frame LG12199


  Bracket for relay carrier Piaggio Group · GU30756100 Backorder · Shipped in 2–4 weeks

  € 14,69

  Add to cart

12 Relais support GU30732400 No longer available

• GU30732400 Relais support Quantity needed: 4
  No longer available

13 Screw GU98622318 No longer available

• GU98622318 Screw Quantity needed: 2
  No longer available

14 Washer 6.15x11x0.8 mm Available GU95004206

• GU95004206 Washer 6.15x11x0.8 mm Quantity needed: 2
  • Country: United States of America


  Shim 6,15x11x0,8 mm Piaggio Group · GU95008206 ↻ Replaces GU95004206, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 2,78

  Add to cart

15 Washer GU95100120 No longer available

• GU95100120 Washer Quantity needed: 2
  No longer available

16 Nut (M6x1) Available GU92630206

• • Country: United States of America


  Standard nut Piaggio Group · GU92630206 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,78

  Add to cart

17 Clamp Backorder GU31749765

• • From frame LF13200
  • Up to frame LG12199


  Clamp Piaggio Group · GU31749765 Backorder · Shipped in 2–4 weeks

  € 60,90

  Add to cart

18 Screw Available GU61127520

• GU61127520 Screw
  • From frame LF13200
  • Up to frame LG12199


  Screw M6x25 Piaggio Group · GU98692325 ↻ Replaces GU61127520, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 5,59

  Add to cart

19 Ring nut Backorder GU61127220

• • From frame LF13200
  • Up to frame LG12199


  Standard nut Piaggio Group · GU61127220 Backorder · Shipped in 2–4 weeks

  € 15,32

  Add to cart

20 Clamp Available GU14609650

• • Country: Canada
  • Country: United States of America


  Clamp 3,6x20,6 mm Piaggio Group · GU14609650 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart
