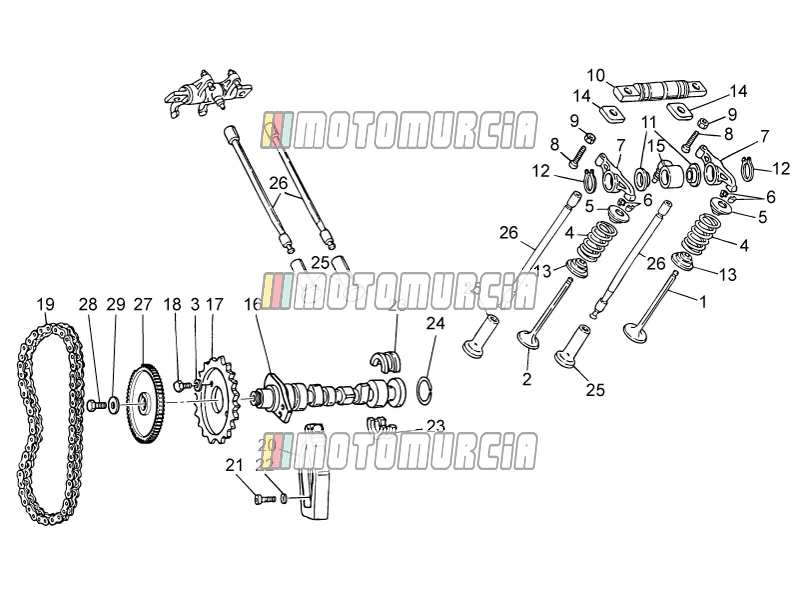

Exploded view — Timing System

Products

1 Valve (IN) Available 2A000146

•

  Inlet valve Piaggio Group · 2A000146 · Quantity needed: 2 Available

  € 12,75

  Add to cart

2 Valve (EX) 2A000147 No longer available

• 2A000147 Valve (EX) Quantity needed: 2
  No longer available

3 Safety washer Backorder GU23217800

•

  Locking Plate Piaggio Group · GU23217800 · Quantity needed: 2 Backorder

  € 1,29

  Add to cart

4 Spring Available GU27037521

•

  Valve spring Piaggio Group · GU27037521 · Quantity needed: 4 Available

  € 12,17

  Add to cart

5 Upper cup Available GU31038015

•

  Spring holder Piaggio Group · GU31038015 · Quantity needed: 4 Available

  € 27,53

  Add to cart

6 Half-cone Available GU61038100

•

  Valve Half Cone Piaggio Group · GU61038100 · Quantity needed: 8 Available

  € 13,19

  Add to cart

7 Rocker arm assy. Backorder 82985R

•

  Rocker Arm Piaggio Group · 82985R · Quantity needed: 4 Backorder

  € 42,04

  Add to cart

8 Screw Available GU19034000

•

  Screw Piaggio Group · GU19034000 · Quantity needed: 4 Available

  € 30,93

  Add to cart

9 Nut (M6x1) Available GU92602406

•

  Standard nut M6x1 Piaggio Group · GU92602406 · Quantity needed: 4 Available

  € 1,29

  Add to cart

10 Rocker shaft Backorder GU19032080

•

  Rocker Arm Shaft Piaggio Group · GU19032080 · Quantity needed: 2 Backorder

  € 142,57

  Add to cart

11 Thrust washer Available GU32032310

•

  Sleeve Piaggio Group · GU32032310 · Quantity needed: 4 Available

  € 27,41

  Add to cart

12 Seeger Available GU90271018

•

  Circlip Piaggio Group · GU90271018 · Quantity needed: 4 Available

  € 1,02

  Add to cart

13 Lower cup Available GU31037015

•

  Spring holder Piaggio Group · GU31037015 · Quantity needed: 4 Available

  € 13,92

  Add to cart

14 Spacer Available GU19032980

•

  Washer Piaggio Group · GU19032980 · Quantity needed: 4 Available

  € 3,40

  Add to cart

15 Hose Available 2B000579

•

  Sleeve Piaggio Group · 2B000579 · Quantity needed: 2 Available

  € 47,83

  Add to cart

16 Camshaft Backorder GU320534104

•

  Camshaft Piaggio Group · GU320534104 Backorder

  € 500,77

  Add to cart

17 Timing system gear Backorder GU32054510

•

  Gear Wheel Piaggio Group · GU32054510 Backorder

  € 141,28

  Add to cart

18 Screw Available GU61054900

•

  Threaded bolts Piaggio Group · GU61054900 · Quantity needed: 2 Available

  € 14,07

  Add to cart

19 Timing chain Available GU19058021

•

  Timing chain Piaggio Group · GU19058021 Available

  € 217,07

  Add to cart

20 Compl. chain tensioner brake pad Available 1A0263195

•

  Chain Tensioner Piaggio Group · 1A0263195 Available

  € 94,94

  Add to cart

21 Screw Backorder GU98882316

•

  Screw Piaggio Group · GU98882316 Backorder

  € 1,21

  Add to cart

22 Washer Backorder GU95129115

•

  Washer Piaggio Group · GU95129115 Backorder

  € 1,32

  Add to cart

23 Sector Backorder GU19055700

•

  Plain bearing half shell Piaggio Group · GU19055700 · Quantity needed: 2 Backorder

  € 29,77

  Add to cart

24 Snap ring Backorder GU90353029

•

  Snap-in Ring Piaggio Group · GU90353029 Backorder

  € 1,65

  Add to cart

25 Tappet Available GU19045861

•

  Cup tappet Piaggio Group · GU19045861 · Quantity needed: 4 Available

  € 251,52

  Add to cart

26 Rocker arm rod Backorder GU31045015

•

  Rocker Arm Push Rod Piaggio Group · GU31045015 · Quantity needed: 4 Backorder

  € 58,08

  Add to cart

27 Phonic wheel Backorder GU32051710

•

  Speed sensor, left, front Piaggio Group · GU32051710 Backorder

  € 64,49

  Add to cart

28 Screw M8x22 Available GU98054422

•

  Screw M8x22 Piaggio Group · GU98054422 Available

  € 1,29

  Add to cart

29 Washer Available GU95100244

•

  Shim Piaggio Group · GU95100244 Available

  € 2,46

  Add to cart
