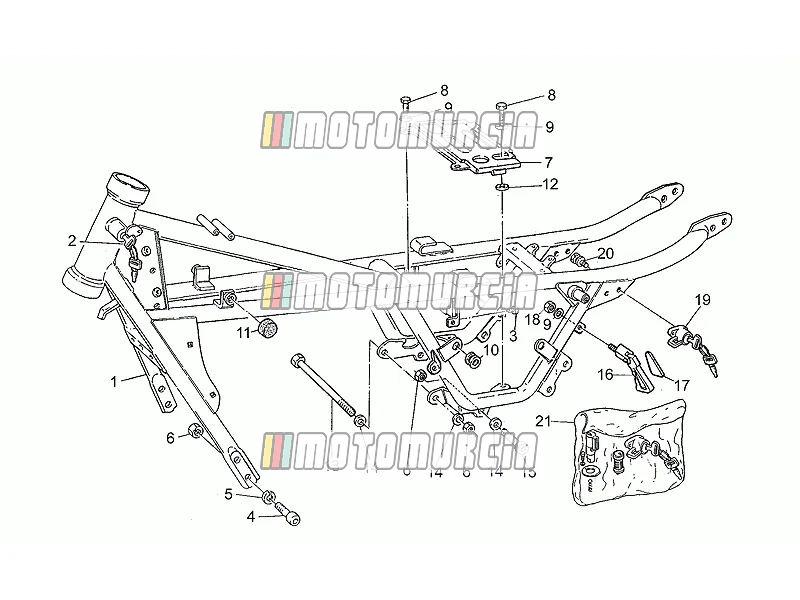

Exploded view — Frame

Products

1 Frame GU31400181 No longer available

• GU31400181 Frame
  No longer available

2 Steering lock Backorder GU31782581

•

  Steering Lock Piaggio Group · GU31782581 Backorder

  € 88,92

  Add to cart

3 Pad Available GU19705900

•

  Buffer Piaggio Group · GU19705900 · Quantity needed: 2 Available

  € 5,57

  Add to cart

4 Screw 25 mm Backorder GU98622525

•

  Allen screw length: 25mm Piaggio Group · GU98622525 · Quantity needed: 4 Backorder

  € 2,31

  Add to cart

5 Washer Available GU95120105

•

  Shim Piaggio Group · GU95120105 · Quantity needed: 4 Available

  € 1,48

  Add to cart

6 Nut GU92602210 No longer available

• GU92602210 Nut Quantity needed: 6
  No longer available

7 Plate GU27418210 No longer available

• GU27418210 Plate
  No longer available

8 Screw Available 031117

•

  Screw M8x18 Piaggio Group · 031117 · Quantity needed: 4 Available

  € 2,77

  Add to cart

9 Washer GU95004208 No longer available

• GU95004208 Washer Quantity needed: 5
  No longer available

10 Spacer (rubber) Available GU91551086

•

  Rubber Bush Piaggio Group · GU91551086 · Quantity needed: 4 Available

  € 8,59

  Add to cart

11 Pad Available GU39103400

•

  Buffer Piaggio Group · GU39103400 · Quantity needed: 2 Available

  € 10,87

  Add to cart

12 Washer 8,4x15x1,8 Backorder GU95100253

•

  Washer Piaggio Group · GU95100253 · Quantity needed: 7 Backorder

  € 4,08

  Add to cart

13 Pin M10x205 Available GU98110199

•

  Screw M10x205 Piaggio Group · GU98110199 Available

  € 38,44

  Add to cart

14 Washer 10,2x18x2 Available GU95004210

•

  Washer Piaggio Group · GU95004210 · Quantity needed: 7 Available

  € 1,26

  Add to cart

15 Screw Backorder GU98620555

•

  Screw Piaggio Group · GU98620555 · Quantity needed: 2 Backorder

  € 3,29

  Add to cart

16 Handle GU30464310 No longer available

• GU30464310 Handle
  No longer available

17 Transfer GU30920810 No longer available

• GU30920810 Transfer Quantity needed: 2
  No longer available

18 Nut Available GU92630108

•

  Standard nut Piaggio Group · GU92630108 Available

  € 1,29

  Add to cart

19 Helmet lock GU66466815 No longer available

• GU66466815 Helmet lock
  No longer available

20 Shear rivet Backorder GU66468115

•

  Shear / Snap Off Screw Piaggio Group · GU66468115 · Quantity needed: 2 Backorder

  € 4,63

  Add to cart

21 Lock kit GU31736881 No longer available

• GU31736881 Lock kit
  No longer available
