Exploded view — Front Wheel
‹ Back to model
Moto Guzzi STELVIO 1200 8V E3 ABS STD-NTX 2015
Products
1 Front wheel 2,50x19" Backorder
-
- BEHR brand wheel
- Wheel with CR spokes
Rim 2.50x19, front, chrome, Behr Piaggio Group · 883009 Backorder · Shipped in 2–4 weeks€ 520,30 -
884093 Front wheel 2,50x19"
- BEHR brand wheel
- Wheel with ZN spokes
-
884168 Front wheel 2,50x19"
- GIANT brand wheel
- Wheel with ZN spokes
2 Bearing Available
-
Wheel bearing 6005 2RS1, 25x47x12 mm Piaggio Group · AP8125777 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 10,88
Alternatives from other brands
Wheel Bearing 6005DDU/C3 NSK · 03480349 Available · Shipped in 4–7 working days€ 9,496005 2RS C3 Koyo · 60052RSC3 Available · Shipped in 4–7 working days€ 11,27Bearing 6005/2RSH C3 Athena · MS250470120M3 Available · Shipped in 4–7 working days€ 11,27
3 Gasket ring 30x47x7 Available
-
Shaft Seal 30x47x7 mm Piaggio Group · AP8125773 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,72
4 Spacer Available
-
- Special Edition version
Spacer Piaggio Group · 978516 Available · Shipped in 3–5 working days€ 43,50
5 Spoke Backorder
-

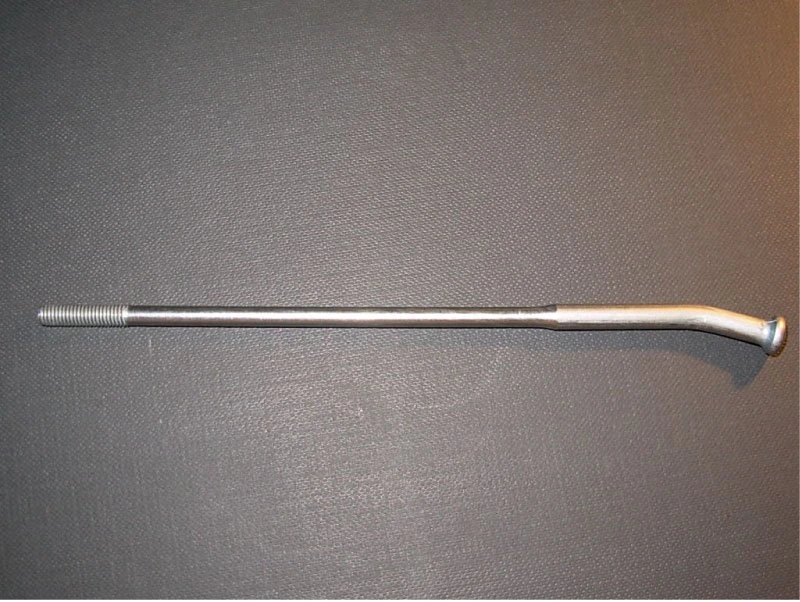

- Galvanized
Spoke galvanised Piaggio Group · 887085 · Quantity needed: 36 Backorder · Shipped in 2–4 weeks€ 10,43 -

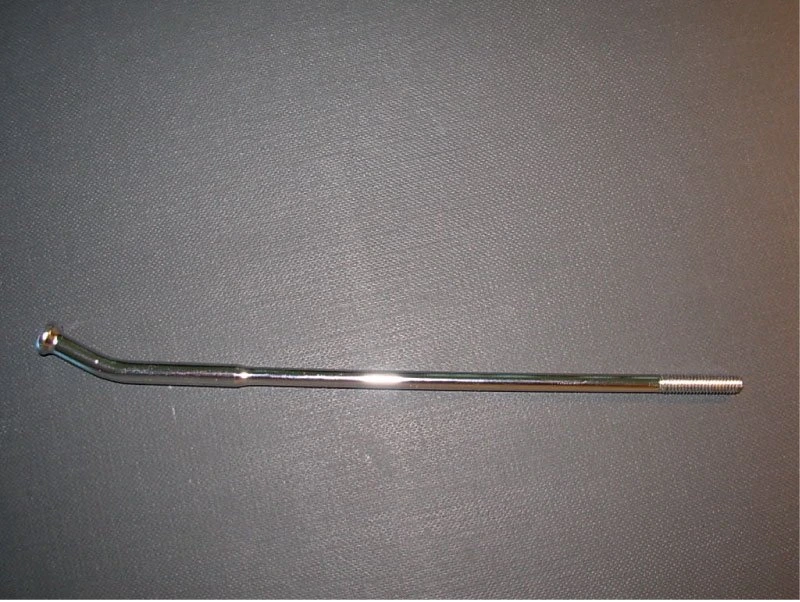

- Polished chrome
Spoke chrome plated Piaggio Group · 978864 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 9,56
6 Nipples L=34 Available
-
- Special Edition version
Spoke Nipples length: 34mm Piaggio Group · 978810 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 14,13
7 Tubeless tyre valve Available
-
Tyre valves Piaggio Group · AP8101744 Available · Shipped in 3–5 working days€ 16,01
8 Snap ring Available
-
- Special Edition version
Snap-in Ring Piaggio Group · 978811 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 2,76
9 O-ring OR2025 Available
-
- Special Edition version
O-Ring Piaggio Group · GU90706061 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 2,76
10 Fairlead Available
-
- ABS version
- ABS version
- Year of manufacture: 2010
Cable Guide Piaggio Group · 894704 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 15,03
11 Brake disc
-
896012 Brake disc
- Grimeca
- Tmb
- Year of manufacture: 2010
Alternatives from other brands
Brake Disc Brembo · 78B40870 Available · Shipped in 1–2 working days€ 364,68BRAKE DISC HALO FLOAT FT - BRAKE ROTOR FLOATING HALO ROUND BLACK Moto Master · 113101 Available · Shipped in 4–7 working days€ 228,65Brake Disc Ferodo · FMD0111RX Available · Shipped in 4–7 working days€ 326,39 -
B044280 Brake disc
- Longzhong
Alternatives from other brands
Brake Disc Brembo · 78B40870 Available · Shipped in 1–2 working days€ 364,68BRAKE DISC HALO FLOAT FT - BRAKE ROTOR FLOATING HALO ROUND BLACK Moto Master · 113101 Available · Shipped in 4–7 working days€ 228,65X-Series Full Circle Brake Disc EBC · MD2003X Available · Shipped in 4–7 working days€ 287,33
12 Brake disc
-
896011 Brake disc
- Grimeca
- Tmb
- Year of manufacture: 2010
-
B044279 Brake disc
- Longzhong
13 Phonic wheel Available
-
- ABS Shiver version
- ABS version
- ABS version
- Year of manufacture: 2010
Hall sensor for ABS, (phonic wheel) Piaggio Group · AP8128189 Available · Shipped in 3–5 working days€ 108,43
14 Screw Available
-
- Colour: Tuscany Tibet 2003
Flanged Screw M8x20 Piaggio Group · AP8152286 · Quantity needed: 12 Available · Shipped in 3–5 working days€ 2,93
15 Front wheel spindle Front Available
-
Wheel Axle front Piaggio Group · 978030 Available · Shipped in 3–5 working days€ 118,39
16 Nut Available
-
GU01612190 NutStandard nut Piaggio Group · AP8152335 ↻ Replaces GU01612190, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 12,17
17 Spacer Backorder
-
- Standard version
Spacer Piaggio Group · GU06616300 Backorder · Shipped in 2–4 weeks€ 14,07
18 Counterweight Backorder
-
- Special Edition version
- Standard version
Balance Weight Piaggio Group · GU14616150 Backorder · Shipped in 2–4 weeks€ 20,06
19 ABS sensor Available
-
859792 ABS sensor
- ABS version
- Year of manufacture: 2010
ABS Sensor Piaggio Group · 1D003350 ↻ Replaces 859792, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 33,05
20 Screw Available
-
Flanged Screw M5x15 Piaggio Group · AP8152273 Available · Shipped in 3–5 working days€ 2,18
21 Fairlead Available
-
- Year of manufacture: 2010
Clamp Piaggio Group · 859777 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 8,86
22 Screw Available
-
- Year of manufacture: 2010
Oval Head Screw M4x6 Piaggio Group · AP8201749 Available · Shipped in 3–5 working days€ 1,26
23 Clamp Available
-
- ABS version
- Version without ABS
Clamp 2,4x92 mm Piaggio Group · GU49609601 Available · Shipped in 3–5 working days€ 1,22
24 Front tyre 110/80 R19
-
886311 Front tyre 110/80 R19No longer available
