Exploded view — Lefthand cylinder timing system (roller)
‹ Back to model
Moto Guzzi STELVIO 1200 8V E3 ABS STD-NTX 2015
Products
1 Pad Available
-
Shim Valve Piaggio Group · 878574 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 13,88
2 Tappet Available
-
B016785 Tappet Quantity needed: 2Cup tappet Piaggio Group · B0170675 ↻ Replaces B016785, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 135,77
3 Rockers axle support left side Available
-
B017026 Rockers axle support left sideMount for rocker arm shaft, left Piaggio Group · 2A0000646 ↻ Replaces B017026, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 438,92
4 Pin D. 2,5 Backorder
-
Gauge pin Piaggio Group · 872759 · Quantity needed: 4 Backorder · Shipped in 2–4 weeks€ 17,53
5 Screw Available
-
Screw M8x30 Piaggio Group · 015792 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 1,48
6 2 - Plug M6x10 (M6x10) Available
-
Screw Plug M6x10 Piaggio Group · 842360 Available · Shipped in 3–5 working days€ 2,86
7 Cam axle Backorder
-
B014576 Cam axleCamshaft Piaggio Group · B0145765 ↻ Replaces B014576, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 241,99
8 Pin Available
-
Pin Piaggio Group · 976589 Available · Shipped in 3–5 working days€ 0,99
9 Right exhaust left intake rocker Available
-
B0136034 Right exhaust left intake rockerRocker Arm Piaggio Group · 2A000251 ↻ Replaces B0136034, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 217,80
10 Rocker arm adjuster nut Available
-
- New rocker control rod
Standard nut Piaggio Group · 879916 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 8,91
11 Adjuster screw Available
-
- New rocker control rod
Adjustment Screw Piaggio Group · 879707 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 46,04
12 Left exhaust right intake rocker Available
-
B0136054 Left exhaust right intake rockerRocker Arm Piaggio Group · 2A000252 ↻ Replaces B0136054, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 217,80
13 Spring washer 5,3X10X0,5 Available
-
Snap Ring Piaggio Group · GU95129100 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99

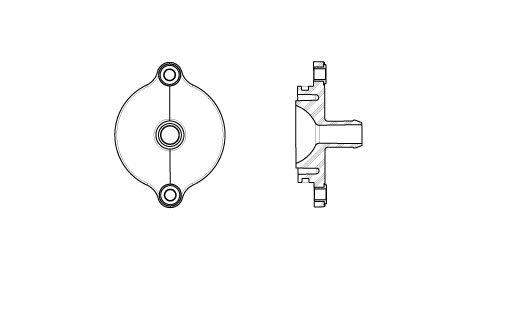

14 Breather cover complete Available
-
B013479 Breather cover completeLid Piaggio Group · 2A000082 ↻ Replaces B013479, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 26,93
15 Screw Available
-
Screw Piaggio Group · GU98622214 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,28
16 Plate Available
-
Cover Plate Piaggio Group · B013661 Available · Shipped in 3–5 working days€ 21,02
17 Flanged hexagon screw M6x25 Available
-
414837 Flanged hexagon screw M6x25
- ABS version
- Year of manufacture: 2009
Hexagon Screw M6x25 Piaggio Group · B016774 ↻ Replaces 414837, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,48
18 Belleville spring Backorder
-
Cup Spring Piaggio Group · 879938 Backorder · Shipped in 2–4 weeks€ 7,55
19 Washer Available
-
Washer Piaggio Group · 879936 Available · Shipped in 3–5 working days€ 4,74
20 Washer Backorder
-
Washer Piaggio Group · 879937 Backorder · Shipped in 2–4 weeks€ 7,42
21 Roller Available
-
- Engine NEW with roller tappet timing system
- Engine with roller tappet timing system
Ball Piaggio Group · B013552 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 3,56
22 Nut Available
-
Standard nut Piaggio Group · 833520 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 0,99
23 Screw w/ flange M6x120 Available
-
Screw M6x120 Piaggio Group · 487444 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 24,90
24 Plain washer 12x6,1x2 Available
-
Washer 12x6,1x2 mm Piaggio Group · 976674 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,83
25 Timing gear Backorder
-
Rear Sprocket Piaggio Group · 976350 Backorder · Shipped in 2–4 weeks€ 303,35
26 Sheet oil breather Backorder
-
874601 Sheet oil breatherOil breather Piaggio Group · 2A000080 ↻ Replaces 874601, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 18,50
27 Screw Available
-
843060 Screw
- 400 cc version
Screw Piaggio Group · 1A000425 ↻ Replaces 843060, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 10,55
28 Gasket ring 2,62x46,52 Available
-
Oil seal 2,62x46,52 mm Piaggio Group · 880965 Available · Shipped in 3–5 working days€ 8,83
29 Timing chain Backorder
-
Control chain for valves Piaggio Group · 976341 Backorder · Shipped in 2–4 weeks€ 127,66
30 Chain guide plate Available
-
Guide Rail Piaggio Group · 976338 Available · Shipped in 3–5 working days€ 17,19
31 Timing chain guide Available
-
Guide Rail Piaggio Group · 976337 Available · Shipped in 3–5 working days€ 17,39
32 Spacer screw M8 Available
-
Screw M8 Piaggio Group · 878868 Available · Shipped in 3–5 working days€ 9,11
33 Spacer Available
-
Spacer disc Piaggio Group · 244585 Available · Shipped in 3–5 working days€ 2,18
