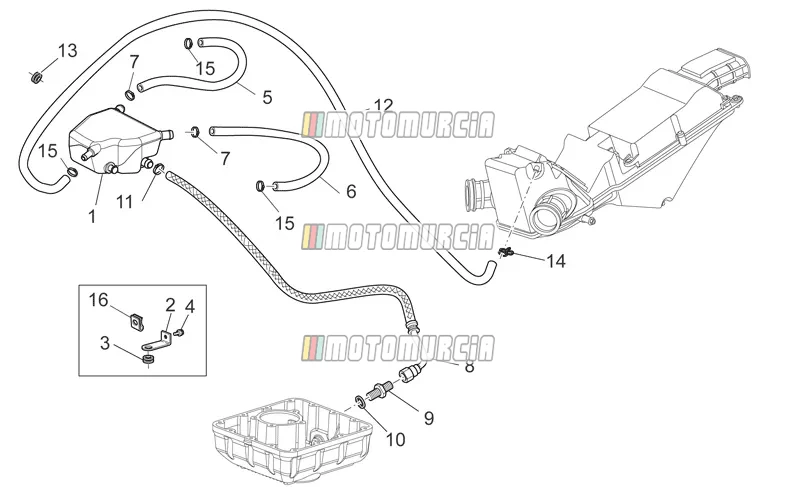

Exploded view — Crankcase Ventilation System
‹ Back to model
Moto Guzzi STELVIO 1200 E3 2008
Products
1 Housing
-
978047 HousingNo longer available
2 Plate Backorder
-
Shackle Piaggio Group · GU06412300 Backorder · Shipped in 2–4 weeks€ 15,22
3 Rubber spacer Available
-
Buffer Piaggio Group · AP8120030 Available · Shipped in 3–5 working days€ 1,83
4 Screw with flange Available
-
Flanged Screw M6x16 Piaggio Group · AP8152278 Available · Shipped in 3–5 working days€ 2,35
5 RH pipe Available
-
Hose, right Piaggio Group · 883034 Available · Shipped in 3–5 working days€ 75,52
6 LH pipe Available
-
Hose, left Piaggio Group · 883035 Available · Shipped in 3–5 working days€ 58,09
7 Clamp Backorder
-
Clamp Piaggio Group · GU93306017 · Quantity needed: 4 Backorder · Shipped in 2–4 weeks€ 14,24
8 Pipe Available
-
883036 PipeNo description available Piaggio Group · 2B001408 ↻ Replaces 883036, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 155,41
9 Reduction Available
-
Pin Piaggio Group · GU01161331 Available · Shipped in 3–5 working days€ 19,47
10 Washer gasket Available
-
Gasket Piaggio Group · GU01154230 Available · Shipped in 3–5 working days€ 2,52
11 Clamp Available
-
Clamp Click white, green, 17,5x8 mm Piaggio Group · AP8102765 Available · Shipped in 3–5 working days€ 7,27
12 Breather pipe Available
-
Breather Pipe Piaggio Group · GU00823955080 Available · Shipped in 3–5 working days€ 38,12
13 Spacer (rubber) Available
-
Rubber Piaggio Group · AP8220162 Available · Shipped in 3–5 working days€ 6,27
14 Clamp Available
-
Hose Clamp Piaggio Group · AP8102520 Available · Shipped in 3–5 working days€ 2,35
15 Clamp Available
-
Clamp Click white, green, 17,5x8 mm Piaggio Group · AP8102765 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 7,27
16 Clip M6 Available
-
GU28576591 Clip M6Sheet nut Piaggio Group · 254485 ↻ Replaces GU28576591, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 2,04
