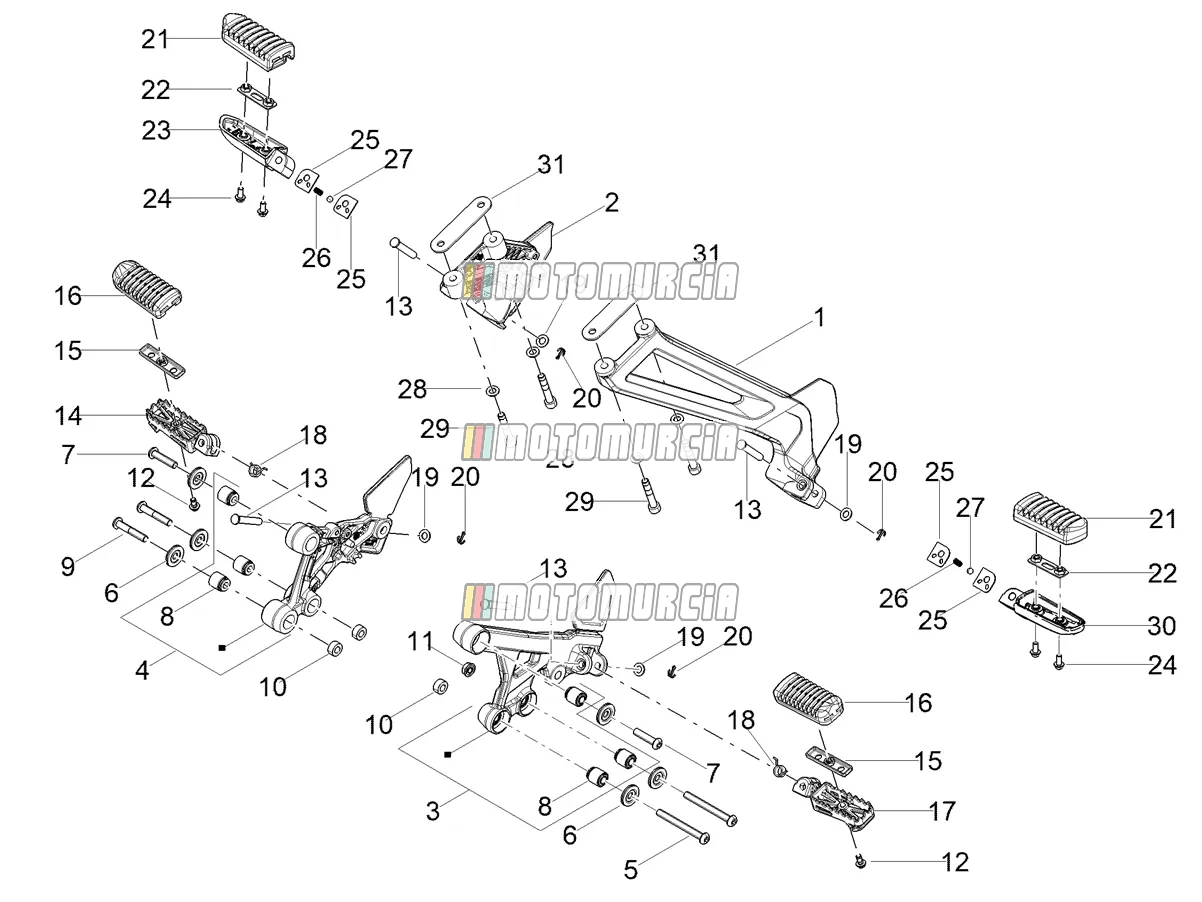

Exploded view — Foot Rests

Products

1 Left pass. footrest support Left pass. footrest support No longer available

• Left pass. footrest support
  No longer available

2 Right pass. footrest support Right pass. footrest support No longer available

• Right pass. footrest support
  No longer available

3 LH front footrest bracket LH front footrest bracket No longer available

• LH front footrest bracket
  No longer available

4 RH front footrest bracket RH front footrest bracket No longer available

• RH front footrest bracket
  No longer available

5 Tbei torx screw m8x75 Available 2B010013

•

  Torx screw M8x75 Piaggio Group · 2B010013 · Quantity needed: 2 Available

  € 18,16

  Add to cart

6 Washer Available 2B009891

•

  Washer Piaggio Group · 2B009891 · Quantity needed: 6 Available

  € 0,99

  Add to cart

7 Screw Available 599208

•

  Torx screw M8x30 Piaggio Group · 599208 · Quantity needed: 2 Available

  € 2,77

  Add to cart

8 Silent-block Available 853215

•

  Silentblock Piaggio Group · 853215 · Quantity needed: 6 Available

  € 22,42

  Add to cart

9 Vite TB TORX M8x45 Vite TB TORX M8x45 No longer available

• Vite TB TORX M8x45
  No longer available

10 Spacer 8,1x16x8 Available 2B009639

•

  Spacer Piaggio Group · 2B009639 · Quantity needed: 3 Available

  € 3,79

  Add to cart

11 Nut Available 2B004511

•

  Standard nut Piaggio Group · 2B004511 Available

  € 0,99

  Add to cart

12 Screw (M6x12) Available 2B005143

•

  Flanged Screw M6x12 Piaggio Group · 2B005143 · Quantity needed: 2 Available

  € 0,99

  Add to cart

13 Footrest pin Footrest pin No longer available

• Footrest pin
  No longer available

14 Footrest Right Available 886184

•

  Footrest right Piaggio Group · 886184 Available

  € 72,24

  Add to cart

15 Plate Available AP8134276

•

  Shims Piaggio Group · AP8134276 · Quantity needed: 2 Available

  € 11,83

  Add to cart

16 Footrest rubber Available AP8120831

•

  Footrest rubber Piaggio Group · AP8120831 · Quantity needed: 2 Available

  € 20,62

  Add to cart

17 Footrest Left Available 886185

•

  Footrest left Piaggio Group · 886185 Available

  € 72,24

  Add to cart

18 Footrest return spring Available AP8221277

•

  Spring Piaggio Group · AP8221277 · Quantity needed: 2 Available

  € 11,97

  Add to cart

19 Washer 8,4X15X1,5 Available GU95008208

•

  Shim 8,4x15x1,8 mm Piaggio Group · GU95008208 · Quantity needed: 4 Available

  € 1,48

  Add to cart

20 Split pin Available AP8101928

•

  Split Pin Piaggio Group · AP8101928 · Quantity needed: 4 Available

  € 2,01

  Add to cart

21 Footrest rubber Available 2B002225

•

  Footrest rubber Piaggio Group · 2B002225 · Quantity needed: 2 Available

  € 10,70

  Add to cart

22 Plate Available GU32441210

•

  Bracket Piaggio Group · GU32441210 · Quantity needed: 2 Available

  € 11,19

  Add to cart

23 Footrest Right 2B010712 No longer available

• 2B010712 Footrest Right
  No longer available

24 Screw (6x12) Available AP8152277

•

  Flanged Screw M6x12 Piaggio Group · AP8152277 · Quantity needed: 4 Available

  € 2,18

  Add to cart

25 Footrest plate Available AP8134451

•

  Plate Piaggio Group · AP8134451 · Quantity needed: 4 Available

  € 6,69

  Add to cart

26 Spring Available AP8121133

•

  Spring Piaggio Group · AP8121133 · Quantity needed: 2 Available

  € 3,46

  Add to cart

27 Ball d.7 Available AP8110110

•

  Ball Ø 7,00 mm Piaggio Group · AP8110110 · Quantity needed: 2 Available

  € 0,99

  Add to cart

28 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 · Quantity needed: 4 Available

  € 1,84

  Add to cart

29 Screw TC TORX M8x45 Available 2B004172

•

  Torx screw Piaggio Group · 2B004172 · Quantity needed: 4 Available

  € 1,23

  Add to cart

30 Footrest l.h. Footrest l.h. No longer available

• Footrest l.h.
  No longer available

31 Bracket Bracket No longer available

• Bracket
  No longer available
