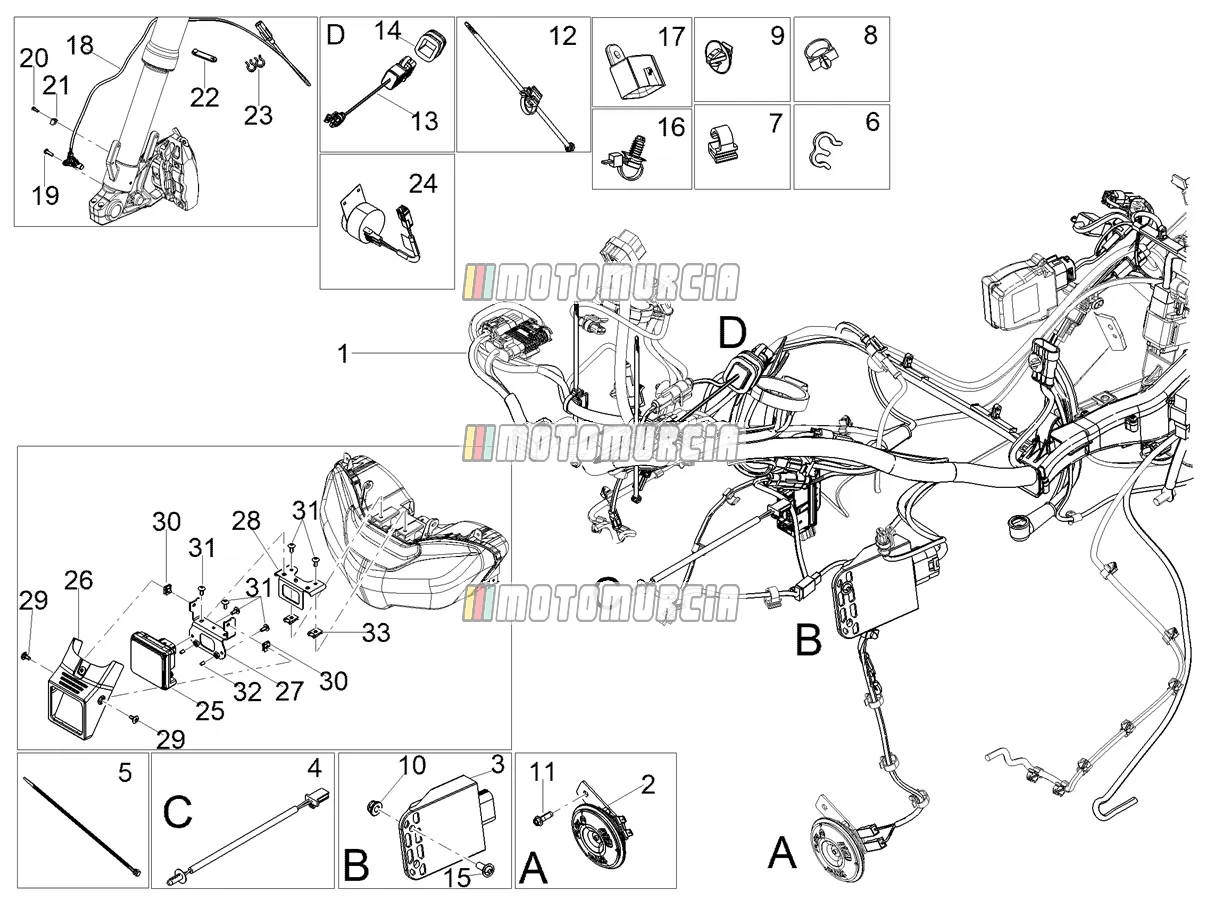

Exploded view — Front Electrical System

Products

1 Main wiring harness Backorder 2D000789

•

  Main wiring harness Piaggio Group · 2D000789 Backorder

  € 557,41

  Add to cart

2 Horn Available 2D000762

•

  Horn Piaggio Group · 2D000762 Available

  € 43,69

  Add to cart

3 Variable aerodynamic control unit Backorder 2D000724

•

  Control unit Piaggio Group · 2D000724 Backorder

  € 320,71

  Add to cart

4 Ambient temperature sensor Available 581142

•

  Air temperature probe Piaggio Group · 581142 Available

  € 33,66

  Add to cart

5 Clamp Available AP8102386

•

  Clamp 155x2 mm Piaggio Group · AP8102386 · Quantity needed: 2 Available

  € 0,99

  Add to cart

6 Fairlead Available 894704

•

  Cable Guide Piaggio Group · 894704 · Quantity needed: 10 Available

  € 15,03

  Add to cart

7 Black cable guide Available AP8201727

•

  Cable Guide Piaggio Group · AP8201727 · Quantity needed: 2 Available

  € 1,65

  Add to cart

8 Elastic spring Available 231590

•

  Clip Piaggio Group · 231590 · Quantity needed: 8 Available

  € 0,99

  Add to cart

9 Instrument support Available 890760

•

  Clip Piaggio Group · 890760 · Quantity needed: 8 Available

  € 18,14

  Add to cart

10 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 Available

  € 2,18

  Add to cart

11 TE flanged screw M6x20 Available 2B002569

•

  Hexagon Screw M6x20 Piaggio Group · 2B002569 Available

  € 3,82

  Add to cart

12 Clamp Available 1D002265

•

  Clamp Piaggio Group · 1D002265 · Quantity needed: 2 Available

  € 3,92

  Add to cart

13 USB port Available 1D003323

•

  USB socket Piaggio Group · 1D003323 Available

  € 171,53

  Add to cart

14 Fairlead Available 1B001591

•

  Bracket rubber Piaggio Group · 1B001591 Available

  € 4,82

  Add to cart

15 Screw Available AP8152246

•

  Screw M6x16 Piaggio Group · AP8152246 Available

  € 4,37

  Add to cart

16 Wiring clip Available 1D001143

•

  Clamp Piaggio Group · 1D001143 · Quantity needed: 2 Available

  € 1,45

  Add to cart

17 Radar connector cap Backorder 2B010679

•

  Cap Piaggio Group · 2B010679 Backorder

  € 2,34

  Add to cart

18 ABS front sensor Available 1D003350

•

  ABS Sensor Piaggio Group · 1D003350 Available

  € 33,05

  Add to cart

19 Screw Available 1C001499

•

  Screw M5x16 Piaggio Group · 1C001499 Available

  € 3,64

  Add to cart

20 Screw Available 621914

•

  Screw Piaggio Group · 621914 Available

  € 2,77

  Add to cart

21 Fairlead Available 859777

•

  Clamp Piaggio Group · 859777 Available

  € 8,86

  Add to cart

22 Clamp Available GU03609600

•

  Clamp length: 36mm Piaggio Group · GU03609600 Available

  € 2,31

  Add to cart

23 Spring Available AP9100519

•

  Clip Piaggio Group · AP9100519 Available

  € 4,71

  Add to cart

24 Buzzer Available 1D002867

•

  Ignal transmitter acoustical Piaggio Group · 1D002867 Available

  € 50,44

  Add to cart

25 Radar Backorder 2D000777

•

  Radar Piaggio Group · 2D000777 Backorder

  € 584,60

  Add to cart

26 Frame Backorder 2B010052

•

  Frame Piaggio Group · 2B010052 Backorder

  € 26,55

  Add to cart

27 Bracket Backorder 2B010575

•

  Bracket Piaggio Group · 2B010575 Backorder

  € 26,55

  Add to cart

28 Support clamp Backorder 2B010574

•

  Support clamp Piaggio Group · 2B010574 Backorder

  € 33,19

  Add to cart

29 Screw Available AP8150500

•

  Screw M5x9 Piaggio Group · AP8150500 · Quantity needed: 2 Available

  € 2,47

  Add to cart

30 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 · Quantity needed: 2 Available

  € 1,48

  Add to cart

31 Screw Available 896174

•

  Screw M5x12 Piaggio Group · 896174 · Quantity needed: 6 Available

  € 2,77

  Add to cart

32 Screw Available 288611

•

  Screw Piaggio Group · 288611 · Quantity needed: 2 Available

  € 0,99

  Add to cart

33 Clip nuts (M5) Available AP8102375

•

  Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available

  € 2,47

  Add to cart
