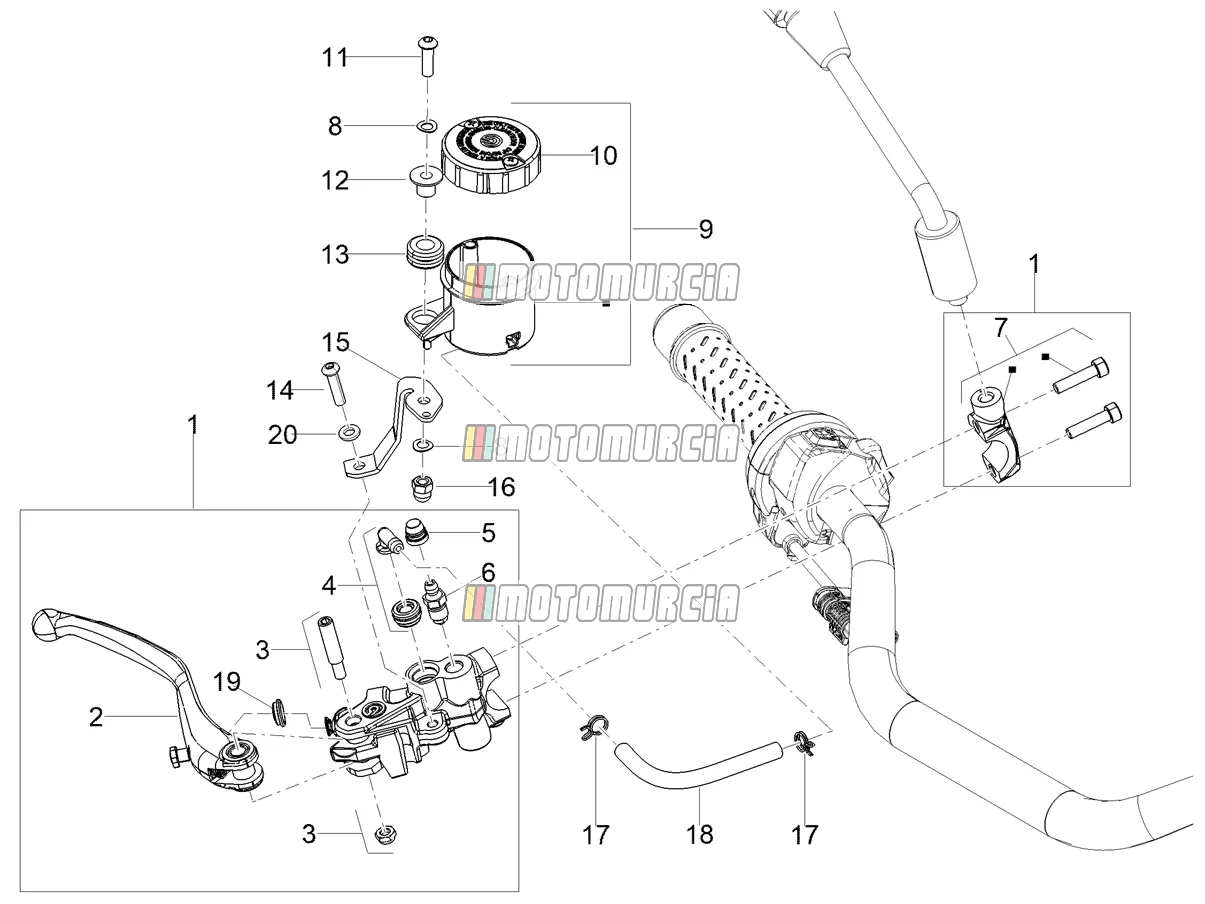

Exploded view — Front Master Cilinder

‹ Back to model
Moto Guzzi Stelvio E5+ (EU) 2024 Moto Guzzi Stelvio E5+ (EU) 2024
Front Master Cilinder

Products

1 Brake hydraulic pump Available 2B008781
2 Fr. br. lever Available 2B011181
3 Lever pin Available AP8133666
4 Joint Available AP8213057
  • Nozzle Piaggio Group · AP8213057 Available
    € 32,02
5 Bleed valve cap Available AP8113230
6 Air bleed valve Available AP8133502
7 U-bolt Available 2B010032
8 Washer (spring) Available AP8150182
  • Snap Ring Piaggio Group · AP8150182 · Quantity needed: 2 Available
    € 2,77
9 RESERVOIR, BRAKE FLUID 58540341A No longer available
  • 58540341A RESERVOIR, BRAKE FLUID
    No longer available
10 Pil brake tank plug Available 2B007234
11 Screw Available AP8152137
  • Screw M6x20 Piaggio Group · AP8152137 Available
    € 2,63
12 Spacer Available AP8221023
  • Sleeve Piaggio Group · AP8221023 Available
    € 1,84
13 Rubber spacer Available AP8120030
  • Buffer Piaggio Group · AP8120030 Available
    € 1,83
14 Screw Available AP8152117
  • Screw M6x25 Piaggio Group · AP8152117 Available
    € 2,93
15 Oil brake tank supp. Backorder 2B009450
  • Bracket Piaggio Group · 2B009450 Backorder
    € 19,25
16 Nut Available 479175
  • Dome nut Piaggio Group · 479175 Available
    € 1,48
17 Clamp Available AP8101595
  • Clamp Ø 10,10 mm Piaggio Group · AP8101595 · Quantity needed: 2 Available
    € 4,71
18 Oil tank pipe Backorder 2B009458
  • Oil Pipe Piaggio Group · 2B009458 Backorder
    € 3,13
19 Dust guard Available 2B007074
  • Dust guard Piaggio Group · 2B007074 Available
    € 27,31
20 Washer Available AP8150178
