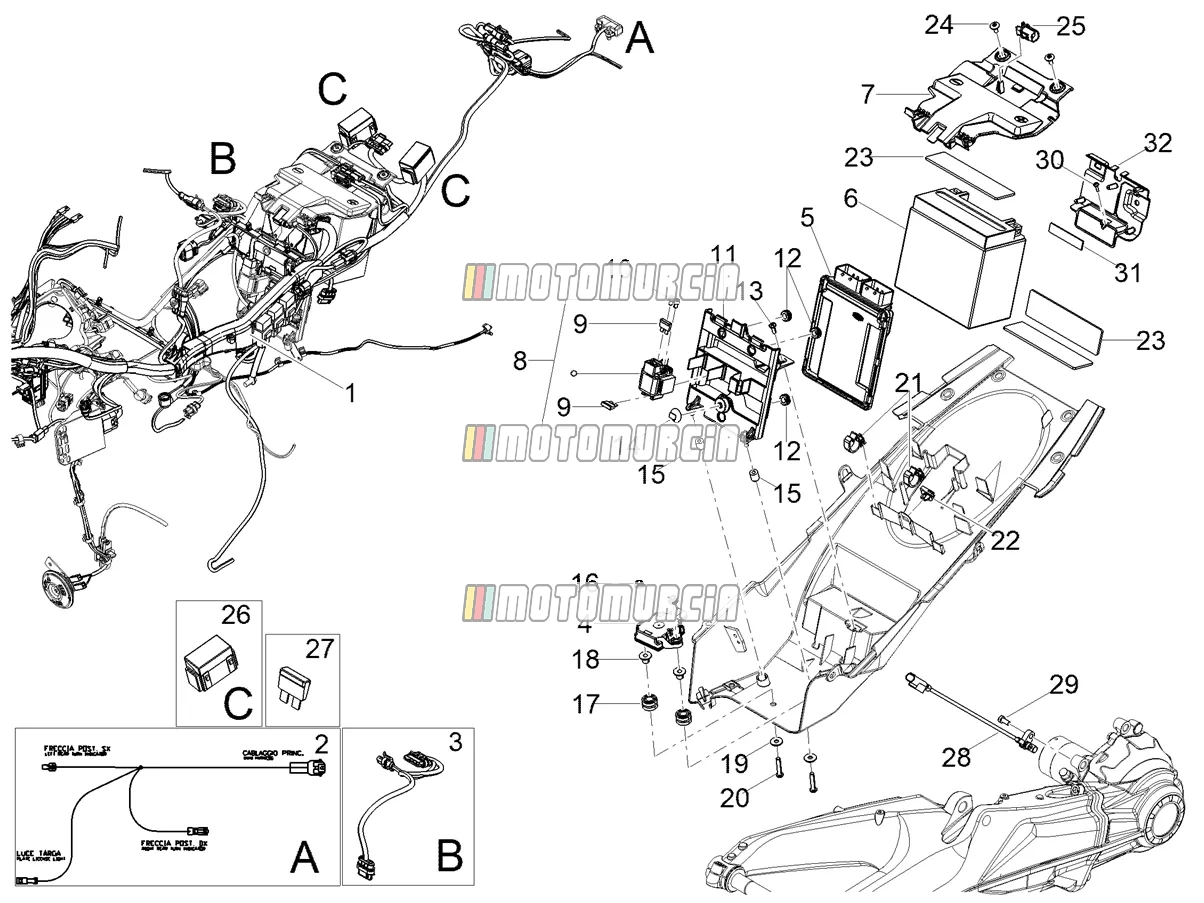

Exploded view — Rear Electrical System

‹ Back to model
Moto Guzzi Stelvio (EU) 2024 Moto Guzzi Stelvio (EU) 2024
Rear Electrical System

Products

1 Main wiring harness Backorder 2D000789
  • Main wiring harness Piaggio Group · 2D000789 Backorder · Shipped in 2–4 weeks
    € 557,41
2 Taillight wiring harn. Available 2D000761
3 Fuel pump wiring Backorder 2D000790
  • Fuel pump wiring Piaggio Group · 2D000790 Backorder · Shipped in 2–4 weeks
    € 22,57
4 Ecu imu Backorder 2D000713
5 Electronic control unit ECU for injection Backorder CM3018497
6 Battery Available 638733
7 Battery cover Backorder 2B010020
  • Battery Cover Piaggio Group · 2B010020 Backorder · Shipped in 2–4 weeks
    € 24,07
8 Relay - starter Available 1D001697R
  • Starting Relay Piaggio Group · 1D001697R Available · Shipped in 3–5 working days
    € 62,99

    Alternatives from other brands

    Start Relay Piaggio Beverly Athena · S410480402001 Backorder · Shipped in 2–5 weeks
    € 39,93
9 Fuse 30A Available CM225730
    • Year of manufacture: 2010
    • Country: Australia
    Fuse 30 A Piaggio Group · CM225730 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 5,11
10 Screw Available 581596
  • Screw Piaggio Group · 581596 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,31
11 Holder Backorder 2B010019
12 Spacer (rubber) Available AP8220186
  • Rubber Piaggio Group · AP8220186 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 2,78
13 Screw Available AP8150509
    • Colour: Special Edition
    • "GTL" version
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Thread Screw Piaggio Group · AP8150509 Available · Shipped in 3–5 working days
    € 2,35
14 Instrument support Available 890760
  • Clip Piaggio Group · 890760 Available · Shipped in 3–5 working days
    € 18,14
15 Spacer (rubber) Available AP8120712
    • ETV Capo Nord Standard version
    • Country: Canada
    • Country: United States of America
    Rubber Piaggio Group · AP8120712 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,17
16 Nut Available AP8152299
    • Colour: Limited Edition green 2013
    • Colour: Public Authorities China
    • Colour: Tuscany Tibet 2003
    Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
17 Spacer (rubber) Available AP8144662
  • Vibrations Damper Piaggio Group · AP8144662 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 7,66
18 Spacer Available AP8221023
    • Country: Canada
    • Country: Italy
    • Country: United States of America
    Sleeve Piaggio Group · AP8221023 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,84
19 Washer Available AP8150015
    • Colour: """GARDA"" Bluevert 2001"
    • Colour: Tuscany Tibet 2003
    Shim Piaggio Group · AP8150015 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
20 Screw (M6x30) Available AP8152128
    • Base
    • Challenge version United States
    • Old fastening
    • Year of manufacture: 1998
    • Year of manufacture: 2003
    • Country: United States of America
    Screw M6x30 Piaggio Group · AP8152128 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
21 Pipes/cables retainer spring Available CM013202
  • Clamp Piaggio Group · CM013202 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 3,13
22 Clamp Available 1D000129
  • Clip Piaggio Group · 1D000129 Available · Shipped in 3–5 working days
    € 2,27
23 Lat.battery support rubber Available AP8144552
  • Rubber Piaggio Group · AP8144552 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 37,03
24 Screw Available AP8150500
  • Screw M5x9 Piaggio Group · AP8150500 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,47
25 Cover Available 1D002384
  • Cap Piaggio Group · 1D002384 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 5,38
26 Fuse holder box Available 894603
  • Fuse Box Piaggio Group · 894603 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 25,26
27 Fuse (20A) Available CM225620
  • Fuse 20 A Piaggio Group · CM225620 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 10,62
  • Fuse 7,5 A Piaggio Group · CM225607 · Quantity needed: 7 Available · Shipped in 3–5 working days
    € 5,11
    • Year of manufacture: 2010
    Fuse 10 A Piaggio Group · CM225610 · Quantity needed: 3 Backorder · Shipped in 2–4 weeks
    € 7,74
    • Year of manufacture: 2010
    Fuse 3 A Piaggio Group · CM225603 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks
    € 1,92
  • Fuse 5 A Piaggio Group · CM225605 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 5,03
    • Year of manufacture: 2010
    Fuse 15 A Piaggio Group · CM225615 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 6,27
28 Speed sensor abs Available 2D000051
  • ABS Sensor Piaggio Group · 2D000051 Available · Shipped in 3–5 working days
    € 35,85
29 Screw Available AP8152156
  • Screw M6x14 Piaggio Group · AP8152156 Available · Shipped in 3–5 working days
    € 2,18
30 Screw Available AP8150413
    • Colour: Alitalia (t.s.899864)
    • Colour: Replica Alitalia (t.s.899863)
    • Colour: Replica MY13
    • Colour: Replica SBK MY12
    Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 Available · Shipped in 3–5 working days
    € 1,80
31 Adhesive sponge Backorder 2B013126
  • Adhesive sponge Piaggio Group · 2B013126 Backorder · Shipped in 2–4 weeks
    € 1,33
32 Holder Backorder 2B011247
  • Holder Piaggio Group · 2B011247 Backorder · Shipped in 2–4 weeks
    € 19,92

More drawings of this model
