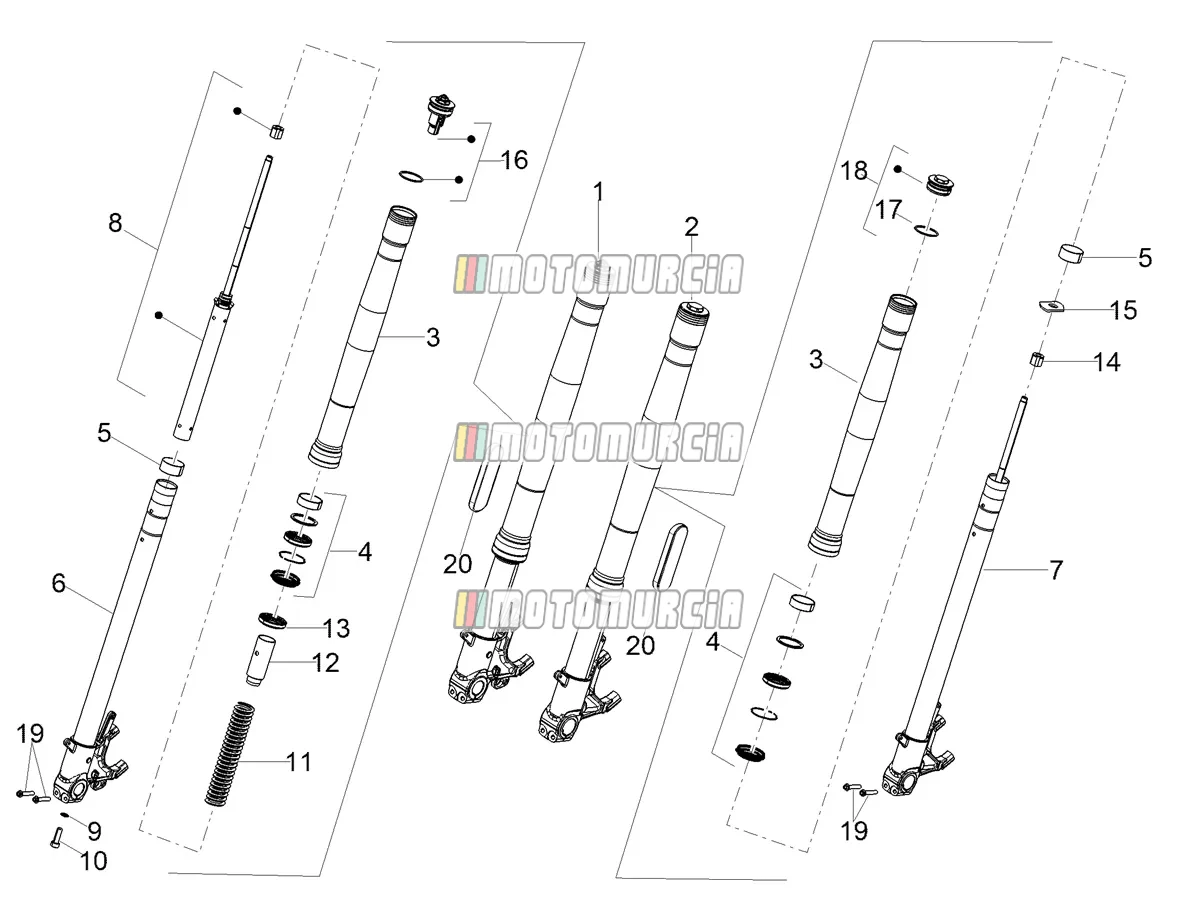

Exploded view — Front Fork Kayaba
‹ Back to model
Moto Guzzi V100 Mandello E5+ ABS 2026
Products
1 Rh hub cpl. Backorder
-
Front Forks right Piaggio Group · 2B008609 Backorder · Shipped in 2–4 weeks€ 1.017,61
2 Lh hub cpl. Backorder
-
Front Forks left Piaggio Group · 2B008452 Backorder · Shipped in 2–4 weeks€ 1.017,61
3 Sleeve Backorder
-
Sleeve Piaggio Group · 2B011400 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 594,91
4 Fork oil seal (Repair kit cpl.) Available
-
O-ring Set Piaggio Group · 2B004402 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 81,64
5 Bush Backorder
-
Slide Bushing Piaggio Group · 2B004403 Backorder · Shipped in 2–4 weeks€ 12,33
6 Right stem Backorder
-
Right stem Piaggio Group · 2B004898 Backorder · Shipped in 2–4 weeks€ 350,08
7 Left stem Backorder
-
Left stem Piaggio Group · 2B004897 Backorder · Shipped in 2–4 weeks€ 350,08
8 Plunger, complete Backorder
-
Plunger, complete Piaggio Group · 2B011406 Backorder · Shipped in 2–4 weeks€ 391,39
9 Plain washer Available
-
Spring Washer Piaggio Group · 2B004406 Available · Shipped in 3–5 working days€ 1,54
10 Screw Available
-
Screw Piaggio Group · 2B004407 Available · Shipped in 3–5 working days€ 1,75
11 Spring Backorder
-
Fork spring Piaggio Group · 2B011403 Backorder · Shipped in 2–4 weeks€ 37,57
12 Preload tube Backorder
-
Preload Tube Piaggio Group · 2B004409 Backorder · Shipped in 2–4 weeks€ 12,79
13 Washer Available
-
Washer Piaggio Group · 2B004422 Available · Shipped in 3–5 working days€ 1,14
14 Buffer Available
-
Buffer Piaggio Group · 2B004410 Available · Shipped in 3–5 working days€ 3,21
15 Nut Available
-
Standard nut Piaggio Group · 2B004411 Available · Shipped in 3–5 working days€ 2,84
16 RH sleeve plug Backorder
-
Screw Plug right Piaggio Group · 2B004412 Backorder · Shipped in 2–4 weeks€ 179,55
17 Ring Available
-
2B004414 RingO-Ring Piaggio Group · 2B009631 ↻ Replaces 2B004414, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 11,92
18 Plug with OR Backorder
-
Screw Plug left Piaggio Group · 2B004413 Backorder · Shipped in 2–4 weeks€ 31,81
19 Screw Available
-
Flanged Screw M6x40 Piaggio Group · AP8152283 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,47
20 Reflector, amber Available
-
Reflector yellow Piaggio Group · GU05781630 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 19,67
