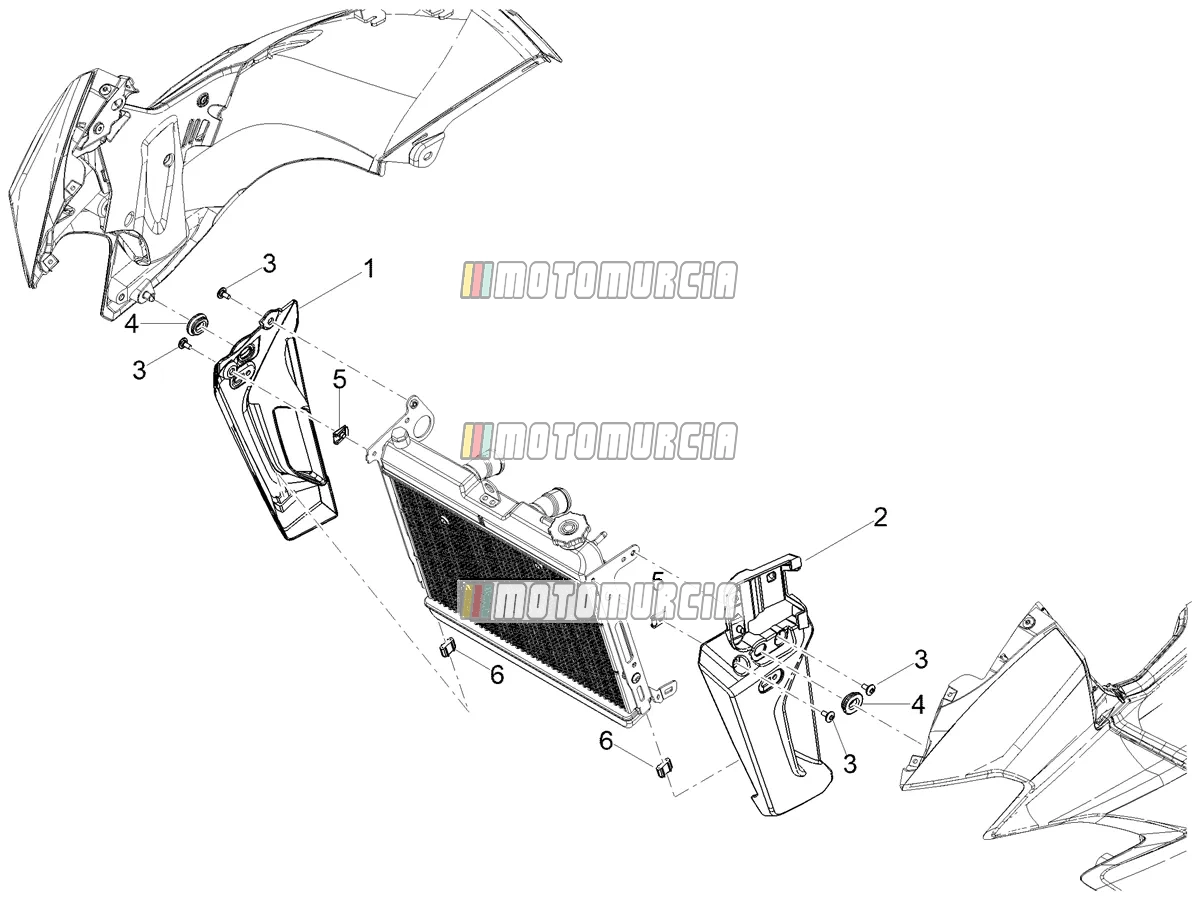

Exploded view — Front Body

‹ Back to model
Moto Guzzi V100 Mandello S 2022 Moto Guzzi V100 Mandello S 2022
Front Body

Products

1 Radiator cover dx Backorder 2B009854
2 Radiator cover sx Available 2B009855
3 Screw Available AP8150500
  • Screw M5x9 Piaggio Group · AP8150500 · Quantity needed: 4 Available
    € 2,47
4 Elastic drift Available 1B000888
  • Buffer Piaggio Group · 1B000888 · Quantity needed: 2 Available
    € 3,84
5 Clip nuts (M5) Available AP8102375
  • Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available
    € 2,47
6 Rubber spacer Available 2B007247
  • Rubber Piaggio Group · 2B007247 · Quantity needed: 2 Available
    € 3,28
