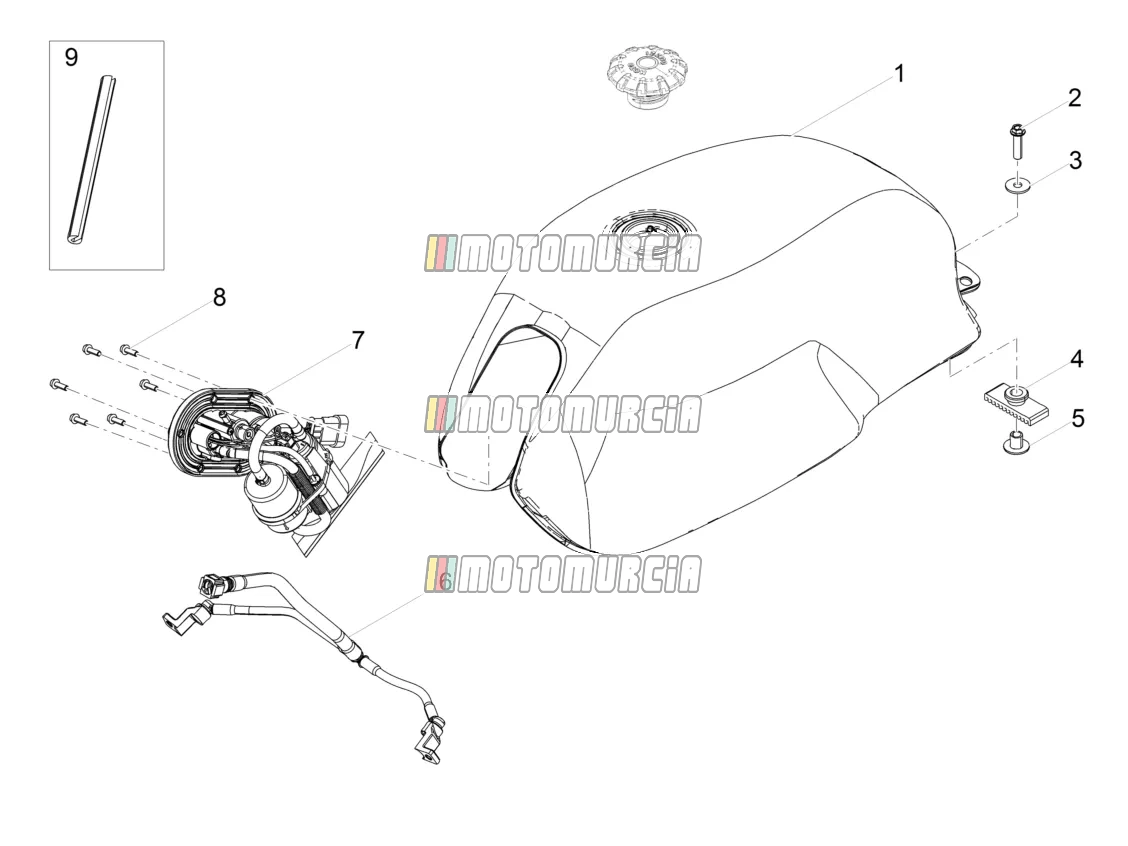

Exploded view — Fuel Tank

Products

1 Fuel tank Backorder 2H002591500YB4

•

  Petrol Tank blue, Suffix: YB4_blu pungente, with decals Piaggio Group · 2H002591500YB4 Backorder

  € 1.077,05

  Add to cart
• 2H002591600YM4 Fuel tank
  No longer available
•

  Petrol Tank primed Piaggio Group · 2B003435 Available

  € 734,75

  Add to cart
•

  Petrol Tank black, Suffix: XN6_black matt 168, with decals Piaggio Group · 2H002591500XN6 Backorder

  € 1.077,05

  Add to cart

2 Screw Available AP8152288

•

  Flanged Screw M8x30 Piaggio Group · AP8152288 Available

  € 2,47

  Add to cart

3 Washer Available GU95005312

•

  Washer 8,5x24x2 mm Piaggio Group · GU95005312 Available

  € 2,31

  Add to cart

4 Damper Available AP8120557

•

  Plug Piaggio Group · AP8120557 Available

  € 19,08

  Add to cart

5 Spacer Available AP8121332

•

  Sleeve Piaggio Group · AP8121332 Available

  € 3,80

  Add to cart

6 Fuel system pipes Available 2B002486

•

  Petrol Hose Piaggio Group · 2B002486 Available

  € 118,46

  Add to cart

7 Fuel pump 2D000492 No longer available

• 2D000492 Fuel pump
  No longer available

8 Screw TEFL M5X16 Available 2B002567

•

  Screw Piaggio Group · 2B002567 · Quantity needed: 6 Available

  € 0,99

  Add to cart

9 Gasket Available 2B000909

•

  Gasket Piaggio Group · 2B000909 Available

  € 2,98

  Add to cart
