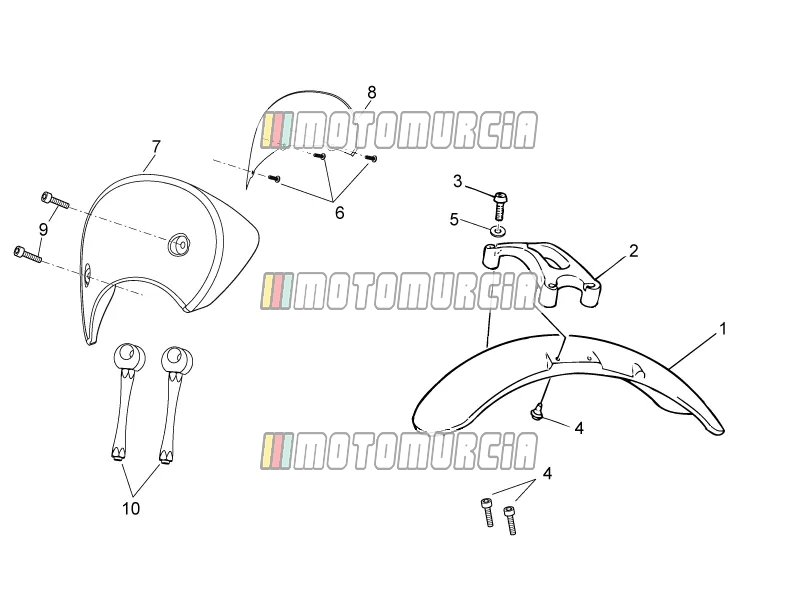

Exploded view — Front Body - Front Mudguard

Products

1 Front mudguard Available 88673000Y02

•

  Mudguard front, black, Suffix: Y02_Guzzi black Piaggio Group · 88673000Y02 Available

  € 66,55

  Add to cart

2 Stabilization plate 883266 No longer available

• 883266 Stabilization plate
  No longer available

3 Screw Available GU98350440

•

  Screw Piaggio Group · GU98350440 · Quantity needed: 4 Available

  € 2,89

  Add to cart

4 Screw (spec) GU31439565 No longer available

• GU31439565 Screw (spec) Quantity needed: 4
  No longer available

5 Washer Available GU14615901

•

  Shim 8,4x13x0,8 mm Piaggio Group · GU14615901 · Quantity needed: 4 Available

  € 2,78

  Add to cart

6 Screw Available AP8150413

•

  Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 3 Available

  € 1,69

  Add to cart

7 Headlight windshield blank Available 898179

•

  Air Deflector, primed Piaggio Group · 898179 Available

  € 330,38

  Add to cart
• 88673100Y02 Front fairing white
  No longer available

8 Windshield Available 898180

•

  Air Deflector Piaggio Group · 898180 Available

  € 72,75

  Add to cart

9 Screw (M6x16 inox) Available GU98370616

•

  Screw M6x16, inox Piaggio Group · GU98370616 · Quantity needed: 2 Available

  € 2,78

  Add to cart

10 Winndshield support 886724 No longer available

• 886724 Winndshield support Quantity needed: 2
  No longer available
