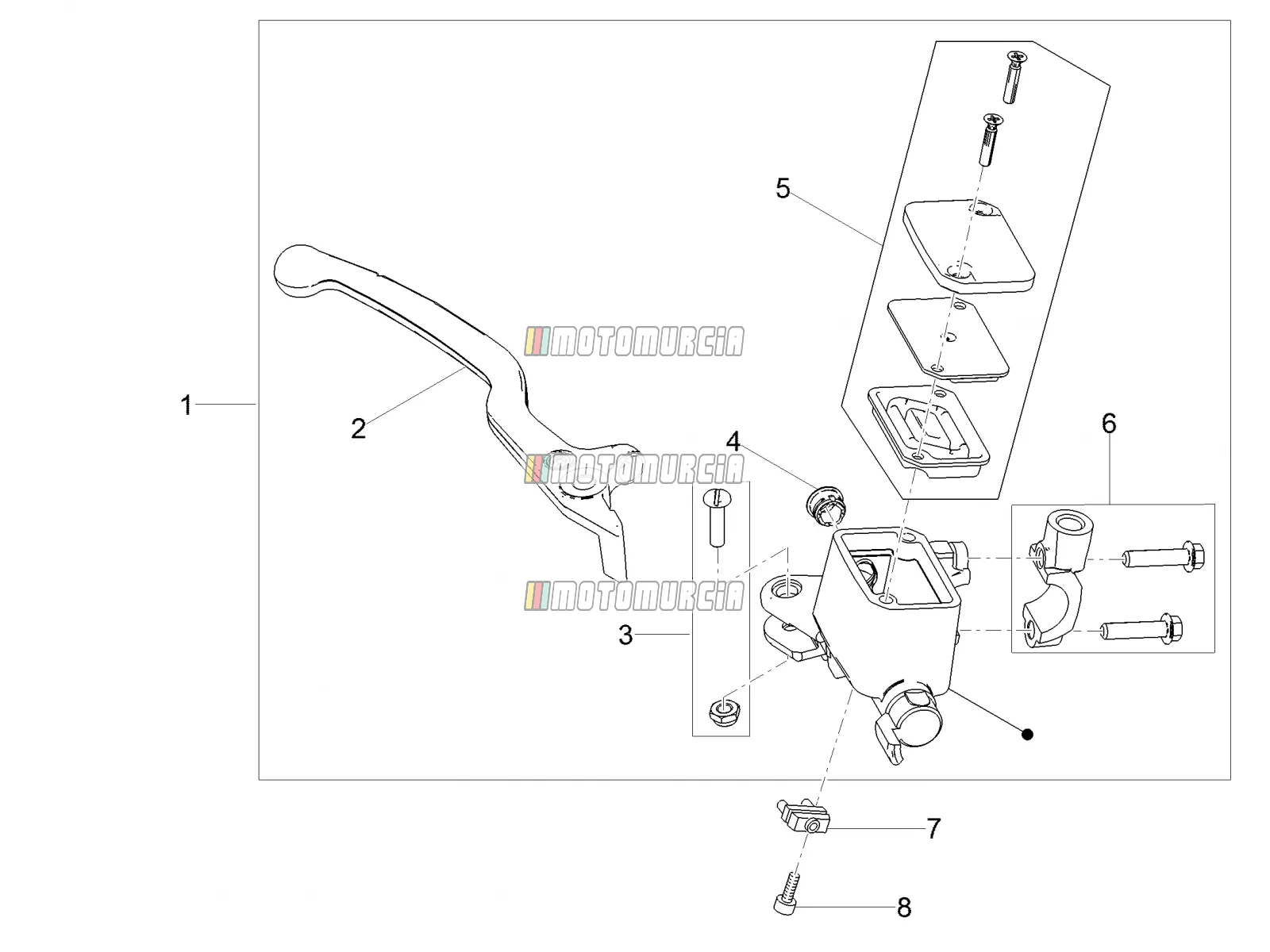

Exploded view — Front Master Cilinder

‹ Back to model

Moto Guzzi V7 Stone 850 (EU, GSO) 2021

Moto Guzzi V7 Stone 850 (EU, GSO) 2021

Front Master Cilinder

Products

1 Front master cilinder Available 2B003543

Master brake cylinder right Piaggio Group · 2B003543 Available

€ 300,98

2 Brake lever Available GU03605645

Brake Lever right Piaggio Group · GU03605645 Available

€ 60,20

3 Lever pin cpl. Available 2B003040

Bolts Piaggio Group · 2B003040 Available

€ 17,36

4 Replacement front brake master cylinder sight glass Backorder 2B001930

Plug Piaggio Group · 2B001930 Backorder

€ 19,41

5 Replacement cap complete with membrane and screws Available GU03661145

Lid Piaggio Group · GU03661145 Available

€ 71,27

6 Bracket Available 2B001929

Handlebar clamp bracket Piaggio Group · 2B001929 Available

€ 39,92

7 Brake light switch Available AP8224192

Stop light switch Piaggio Group · AP8224192 Available

€ 24,15

8 Screw Available AP8152043

Screw M4x10 Piaggio Group · AP8152043 Available

€ 2,18
