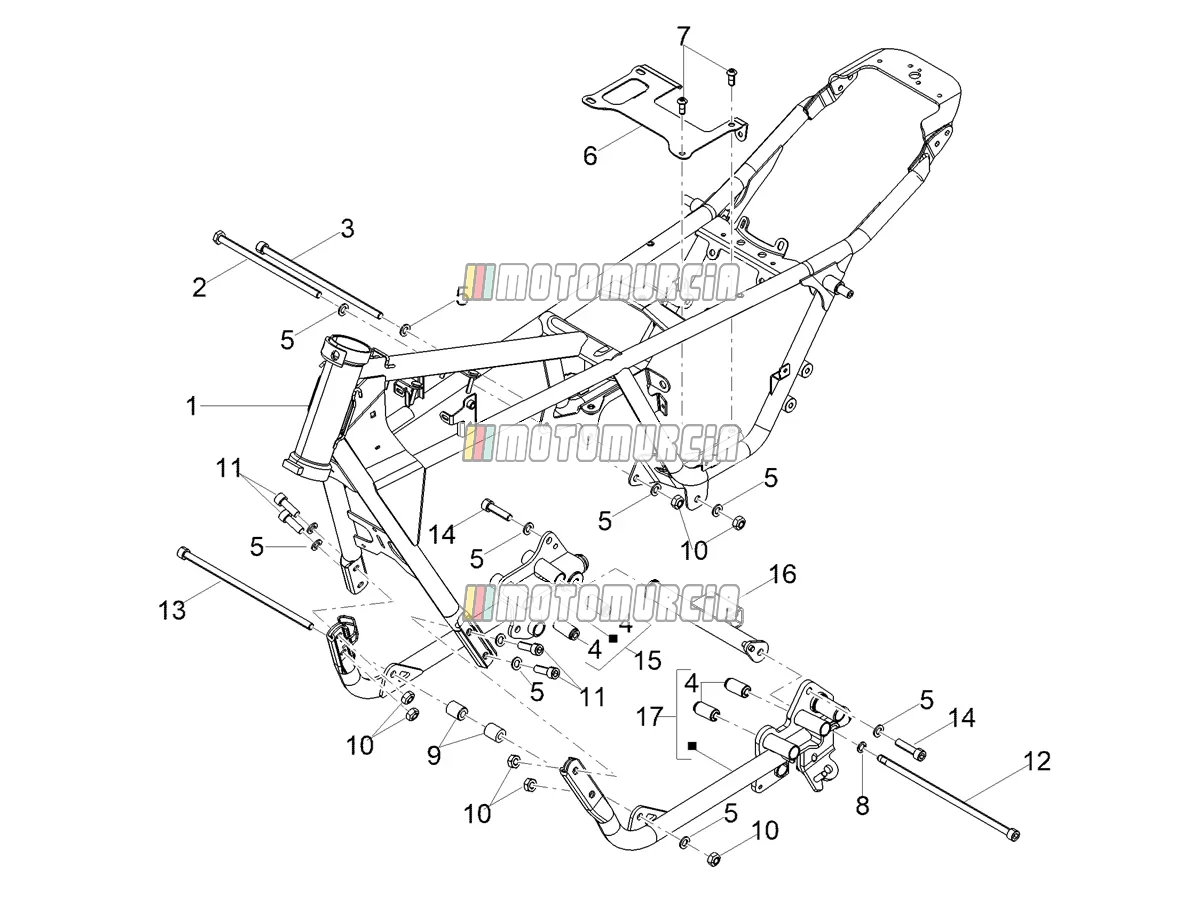

Exploded view — Frame/bodywork

‹ Back to model

Moto Guzzi V7 Stone E5+ (EU) 2025

Products

1 Frame Frame No longer available

Frame
No longer available

2 Pin M10x205 Available GU98110199

Screw M10x205 Piaggio Group · GU98110199 Available

€ 38,44

3 Pin 234X10 Available 2B001035

Screw M10x234 Piaggio Group · 2B001035 Available

€ 23,74

4 Silent-block Available 2B007415

Anti-Vibration Mount Piaggio Group · 2B007415 · Quantity needed: 4 Available

€ 11,83

5 Washer 10,2X18X2 Available GU95008210

Shim 10,2x18x2 mm Piaggio Group · GU95008210 · Quantity needed: 11 Available

€ 1,32

6 Frame union plate Frame union plate No longer available

Frame union plate
No longer available

7 Oval head torx screw M8X20 Available 2B002311

Screw M8x20 Piaggio Group · 2B002311 · Quantity needed: 4 Available

€ 2,53

8 Washer Available AP8152220

Washer 10,5x16x1 mm Piaggio Group · AP8152220 Available

€ 3,82

9 Bushing Available GU19017000

Spacer Bush Piaggio Group · GU19017000 · Quantity needed: 2 Available

€ 11,36

10 Nut M10x1,5 Available GU92630510

Standard nut M10x1.5 Piaggio Group · GU92630510 · Quantity needed: 4 Available

€ 1,77

11 Screw (M10x30) Available AP8150195

Screw M10x30 Piaggio Group · AP8150195 · Quantity needed: 4 Available

€ 2,18

12 M10 pin Available 2B002817

Screw M10 Piaggio Group · 2B002817 Available

€ 23,03

13 Pin M10X253 Available 2B001612

Screw M10x253 Piaggio Group · 2B001612 Available

€ 24,35

14 Screw Available AP8150048

Screw Piaggio Group · AP8150048 · Quantity needed: 2 Available

€ 2,77

15 RH cradle arm RH cradle arm No longer available

RH cradle arm
No longer available

16 Chassis crossbeam Chassis crossbeam No longer available

Chassis crossbeam
No longer available

17 LH cradle arm LH cradle arm No longer available

LH cradle arm
No longer available
