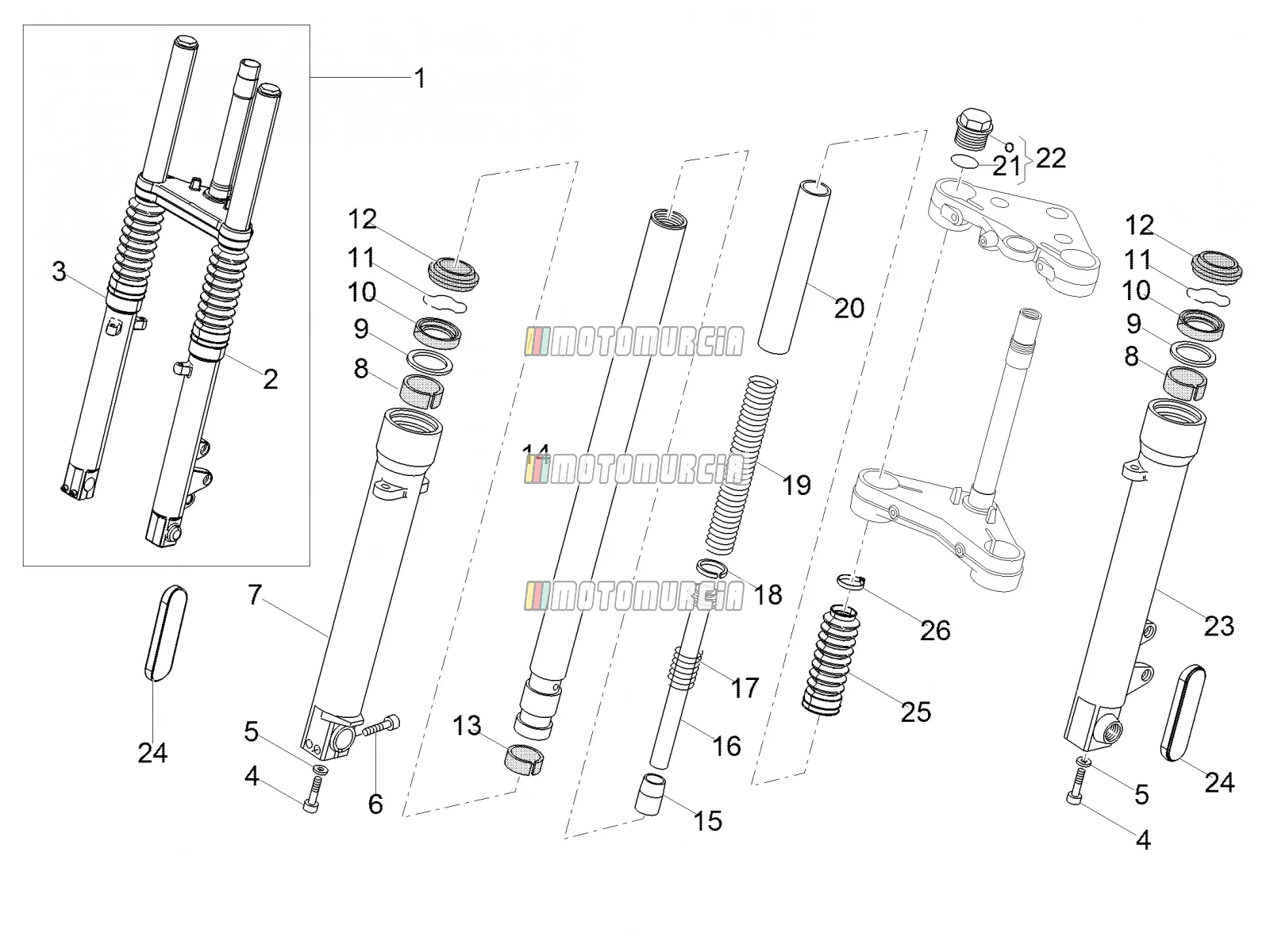

Exploded view — Front Fork Kaifa
‹ Back to model
Moto Guzzi V7 Stone E5+ (EU) 2025
Products
1 Front fork Available
-
Fork Piaggio Group · 2B003251 Available · Shipped in 3–5 working days€ 2.510,82
2 LH sleeve and rod Backorder
-
Front Forks left Piaggio Group · 2B003952 Backorder · Shipped in 2–4 weeks€ 616,45
3 RH sleeve and rod Available
-
Front Forks right Piaggio Group · 2B003948 Available · Shipped in 3–5 working days€ 623,53
4 Screw M10x30 Available
-
- Kaifa
Screw M10x30 Piaggio Group · 887878 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 7,22
5 Washer Available
-
- Kaifa
Washer Piaggio Group · 887879 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 7,22
6 10 - Screw Available
-
- Colour: """GARDA"" Bluevert 2001"
- Colour: Limited Edition green 2013
- Colour: Tuscany Tibet 2003
- Year of manufacture: 1999
- Country: Europe
- Country: Germany
Screw M6x35 Piaggio Group · AP8150285 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,35
7 RH sleeve Available
-
Front Forks right Piaggio Group · 2R000109 Available · Shipped in 3–5 working days€ 555,66
8 Upper bush Available
-
- Kaifa
Sleeve Piaggio Group · 887882 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 19,63
9 Washer Available
-
- Kaifa
Shim Piaggio Group · 887883 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,49
10 Fork oil seal (Kaifa) Available
-
- Kaifa
Fork Seal 38x52x11 mm Piaggio Group · 887884 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 16,24
11 Stop ring Available
-
- Kaifa
Locking Ring Piaggio Group · 887885 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,46
12 Fork dust seal Available
-
- Kaifa
Dust guard Piaggio Group · 887886 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 7,56
13 Bush Available
-
- Kaifa
Sleeve Piaggio Group · 887888 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 29,39
14 Sleeve Available
-
Front Forks Piaggio Group · 2B001591 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 303,46
15 Pad Backorder
-
- Kaifa
Buffer Piaggio Group · 887889 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 15,78
16 Plunger, complete Backorder
-
- Kaifa
Shock absorber Piaggio Group · 887891 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 16,71
17 Return spring Backorder
-
- Kaifa
Fork spring Piaggio Group · 887890 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 7,25
18 Ring Available
-
- Kaifa
Ring Piaggio Group · 887905 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,11
19 Spring Backorder
-
Fork spring Piaggio Group · 2R000243 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 13,16
20 Pipe Available
-
- Kaifa
Pipe Piaggio Group · 887893 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 19,38
21 O-ring 4118 Available
-
- Kaifa
O-Ring Piaggio Group · 887916 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,34
22 Plug cpl. Available
-
- Kaifa
Screw Plug for front fork Kaifa Piaggio Group · 887894 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 33,58
23 LH sleeve Available
-
Front Forks left Piaggio Group · 2R000110 Available · Shipped in 3–5 working days€ 555,66
24 Reflector, amber Available
-
- Colour: Public Authorities China
- Colour: Royal Hashemite Court
- Marzocchi
- Showa
- Standard version
- Year of manufacture: 2011
Reflector yellow Piaggio Group · GU05781630 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 19,67
25 Anti-dust tube Available
-
Rubber bellows Piaggio Group · 2B003514 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 25,03
26 Clamp Available
-
Clamps Piaggio Group · 2B004068 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 9,92
