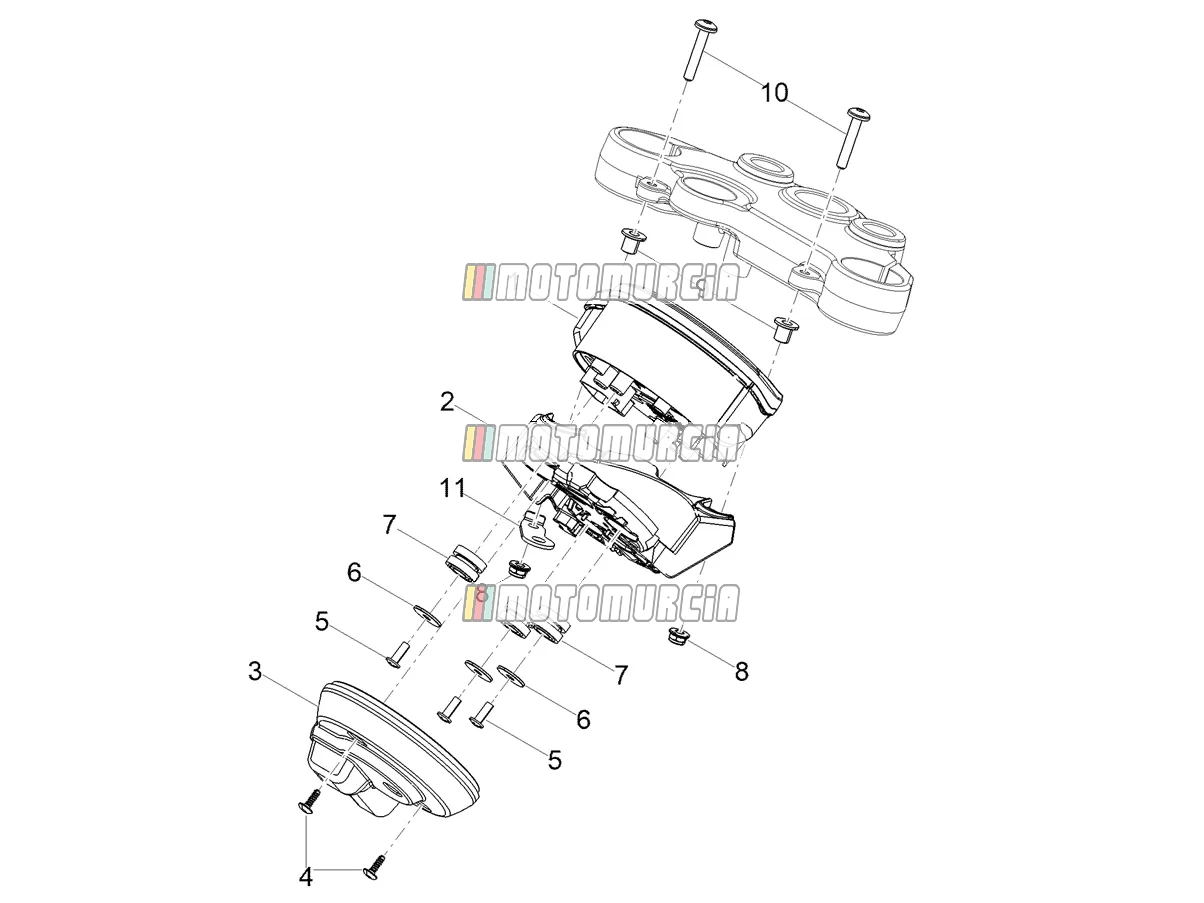

Exploded view — Instruments

‹ Back to model
Moto Guzzi V7 Stone E5+ (EU) 2025 Moto Guzzi V7 Stone E5+ (EU) 2025
Instruments

Products

1 Dashboard Dashboard No longer available
  • Dashboard
    No longer available
2 Socket support Available 2B007543
  • Bracket Piaggio Group · 2B007543 Available · Shipped in 3–5 working days
    € 29,63
3 Instrument panel cover Available 2B007559
  • Cover Piaggio Group · 2B007559 Available · Shipped in 3–5 working days
    € 19,70
4 Screw Available CM178603
  • Sheet Metal Screw Piaggio Group · CM178603 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
5 Screw Available AP8150509
    • Colour: Special Edition
    • "GTL" version
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Thread Screw Piaggio Group · AP8150509 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 2,35
6 Washer Available AP8150255
    • ETV Capo Nord Standard version
    Shim 5x20x1,5 mm Piaggio Group · AP8150255 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 1,26
7 Damper Available AP8220150
  • Buffer Piaggio Group · AP8220150 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 4,20
8 Nut Available AP8152299
    • Colour: Limited Edition green 2013
    • Colour: Public Authorities China
    • Colour: Tuscany Tibet 2003
    Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
9 Bush Available 2B005916
  • Sleeve Piaggio Group · 2B005916 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 5,06
10 Screw Available CM179307
    • 70° version
    Screw Piaggio Group · CM179307 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,48
11 Connector support bracket Connector support bracket No longer available
  • Connector support bracket
    No longer available
