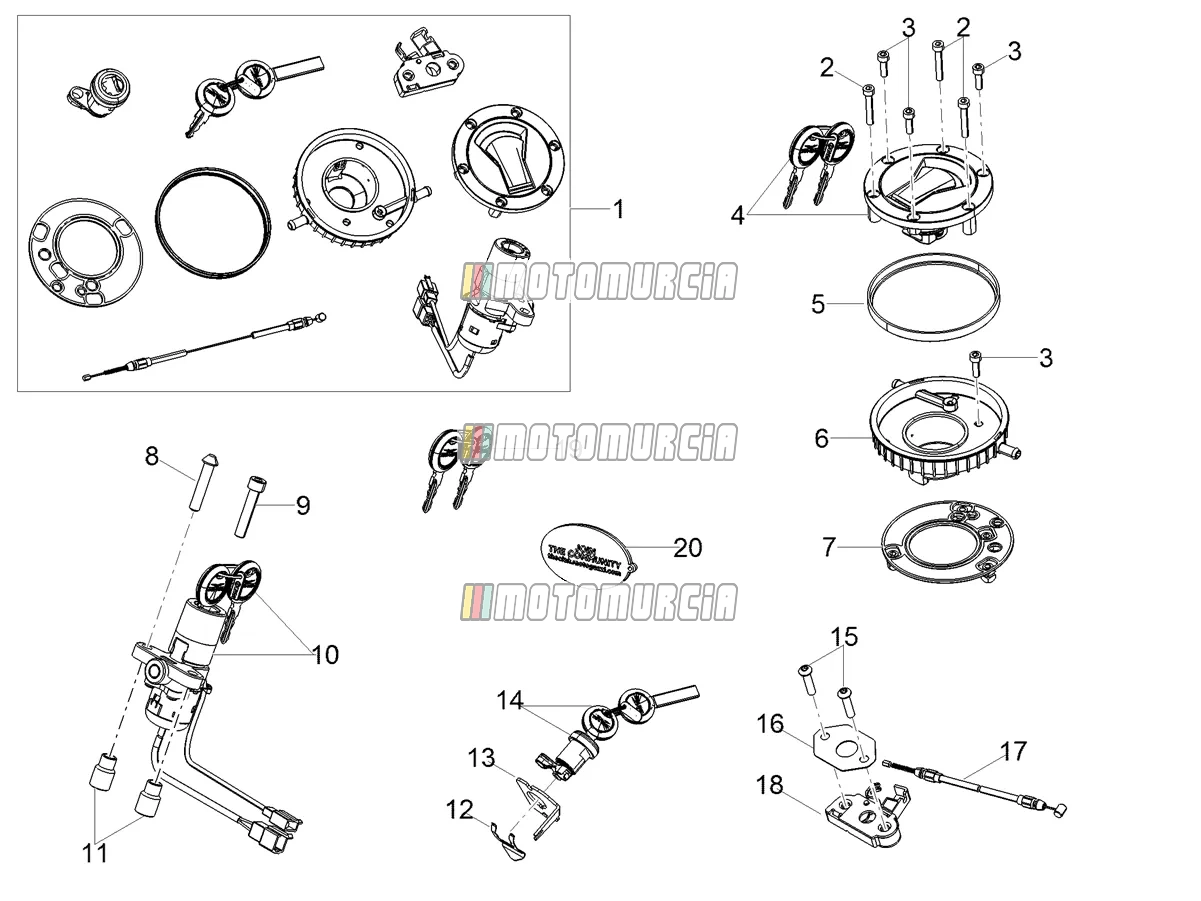

Exploded view — Locks

‹ Back to model
Moto Guzzi V85 TT 850 (EU, GSO) 2023 Moto Guzzi V85 TT 850 (EU, GSO) 2023
Locks

Products

1 Lock kit Available 2B005579
2 Screw (M5x30) Available AP8150453
  • Screw M5x30 Piaggio Group · AP8150453 · Quantity needed: 3 Available
    € 2,78
3 Screw (M5x16) Available AP8150454
  • Screw M5x16 Piaggio Group · AP8150454 · Quantity needed: 4 Available
    € 2,78
4 Fuel filler cap and lock Available 2B005681
  • Tank Cap Piaggio Group · 2B005681 Available
    € 117,38
5 Fuel filler cap gasket Available 899105
6 Fuel chamber Available 899107
  • Drip tray Piaggio Group · 899107 Available
    € 37,75
7 Gasket Available 899106
  • Gasket Piaggio Group · 899106 Available
    € 40,96
8 Shear rivet M8x40 Available AP8150351
9 Screw Available 149104
10 Key switch Backorder 2D000496
  • Steering Lock Piaggio Group · 2D000496 Backorder
    € 250,70
11 Spacer Available 856180
  • Sleeve Piaggio Group · 856180 · Quantity needed: 2 Available
    € 11,83
12 Fork spring Available AP8121420
  • Spring Piaggio Group · AP8121420 Available
    € 16,76
13 Cable fixing plate Available 978415
  • Hooks Piaggio Group · 978415 Available
    € 14,85
14 Seat lock with key Available 2B005680
  • Seat Lock Piaggio Group · 2B005680 Available
    € 57,08
15 Screw Available GU98370625
  • Screw M6x25 Piaggio Group · GU98370625 Available
    € 5,59
16 Saddle lock fix.plate Available 886820
  • Plate Piaggio Group · 886820 Available
    € 20,70
17 Saddle release cable Available 2B005651
18 Lock attachment plate Available 899543
  • Plate Piaggio Group · 899543 Available
    € 17,93
19 Key blank (with transpo.) Available 2B005184
20 Key-fob "THE CLAN" Available 2B004276
