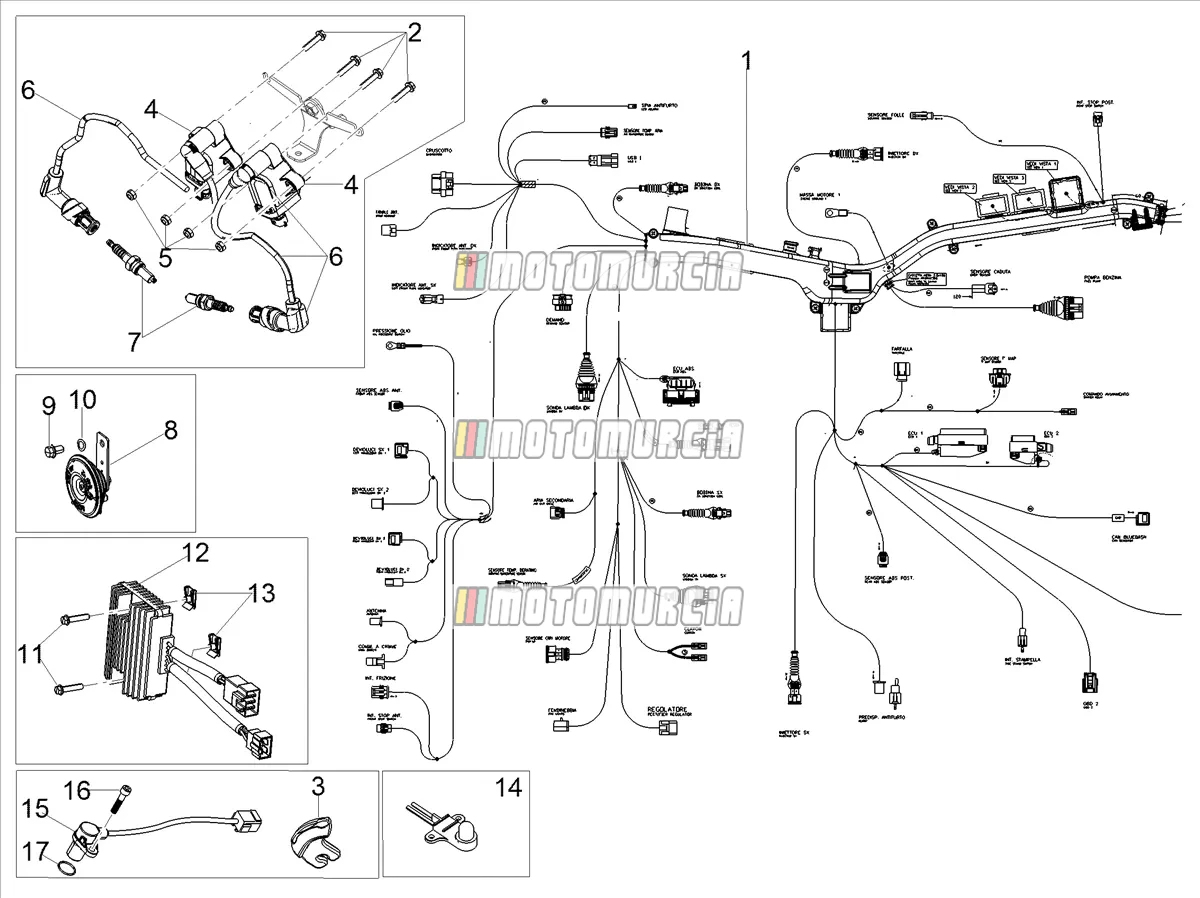

Exploded view — Front Electrical System
‹ Back to model
Moto Guzzi V85 TT E4 ABS (NAFTA) 2020
Products
1 Main wiring harness Backorder
-
Wiring harness Piaggio Group · 2D000444 Backorder · Shipped in 2–4 weeks€ 729,16
2 Screw Available
-
Flanged Screw M6x25 Piaggio Group · AP8152280 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,77
3 Fairlead Backorder
-
Cable Guide Piaggio Group · 1A014724 Backorder · Shipped in 2–4 weeks€ 9,14
4 Ignition coil Available
-
Ignition Coil Piaggio Group · 641901 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 128,79
5 Nut Available
-
Standard nut Piaggio Group · AP8150430 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 1,48
6 Complete H.V. cable Available
-
Ignition Lead Piaggio Group · CM277103 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 160,14
7 Spark plug Available
-
Spark Plugs Iridium, MR8BI-8 Piaggio Group · 1A010638 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 40,73
8 Horn Available
-
Horn Piaggio Group · 2D000454 Available · Shipped in 3–5 working days€ 45,85
9 Screw Available
-
Flanged Screw M8x16 Piaggio Group · AP8152285 Available · Shipped in 3–5 working days€ 2,18
10 Washer Available
-
Washer Piaggio Group · 658837 Available · Shipped in 3–5 working days€ 2,99
11 Screw Available
-
Flanged Screw M6x30 Piaggio Group · AP8152281 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,18
12 Voltage regulator Available
-
Regulator Piaggio Group · 640698 Available · Shipped in 3–5 working days€ 157,09
Alternatives from other brands
REGULATOR, 67 3430 GHMparts · ESR430 Available · Shipped in 4–7 working days€ 157,53
13 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,04
14 Air temp. Sensor Available
-
Air temperature probe Piaggio Group · AP8124936 Available · Shipped in 3–5 working days€ 90,59
15 Encoder sensor Available
-
832029 Encoder sensorStage and R.P.M sensor Piaggio Group · 6389915 ↻ Replaces 832029, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 74,62
16 Screw (M6x14) Available
-
Screw M6x14 Piaggio Group · GU98682314 Available · Shipped in 3–5 working days€ 1,48
17 O-Ring Available
-
O-Ring Piaggio Group · 847180 Available · Shipped in 3–5 working days€ 3,84
