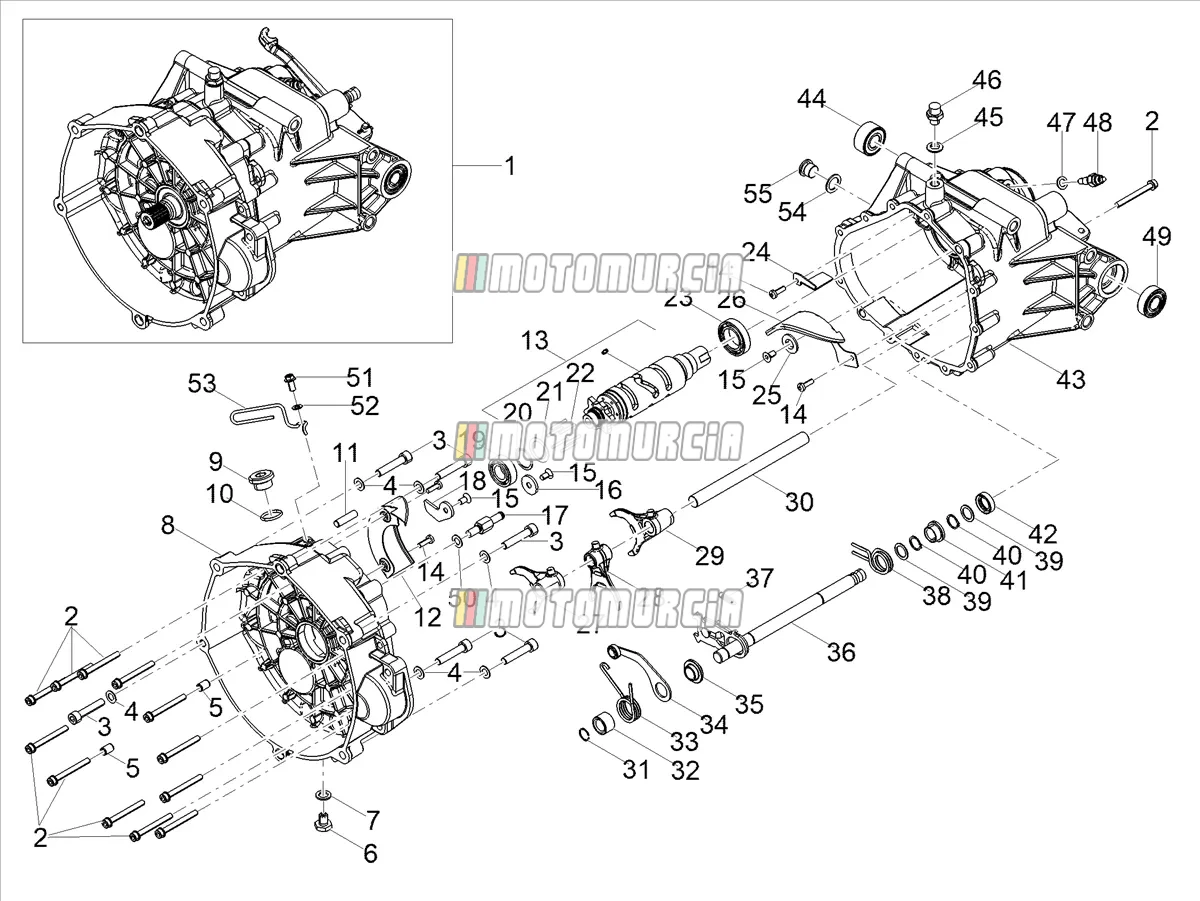

Exploded view — Transmission / Shift drum / Shift Fork

‹ Back to model
Moto Guzzi V85 TT E4 ABS (NAFTA) 2020 Moto Guzzi V85 TT E4 ABS (NAFTA) 2020
Transmission / Shift drum / Shift Fork

Products

1 Transmission, assy 2A0010035 No longer available
  • 2A0010035 Transmission, assy
    No longer available
2 Screw (spec) Backorder 2A000591
  • Screw Piaggio Group · 2A000591 · Quantity needed: 13 Backorder · Shipped in 2–4 weeks
    € 1,69
3 Screw (M8x40) Available GU98680440
  • Screw M8x40 Piaggio Group · GU98680440 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 1,29
4 Washer Available 658837
  • Washer Piaggio Group · 658837 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 2,99
5 Bushing 6,6x9x13 Available GU19002020
  • Adapter Sleeve 6,6x9x13 Piaggio Group · GU19002020 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 8,71
6 Oil drain plug (Magnetic) Available GU31003766
  • Oil drain screw M10x1 Piaggio Group · GU31003766 Available · Shipped in 3–5 working days
    € 16,82
7 Washer gasket Available GU10528900
  • Gasket Piaggio Group · GU10528900 Available · Shipped in 3–5 working days
    € 5,05
8 Clutch drum Backorder 2A0009545
  • Clutch Case Piaggio Group · 2A0009545 Backorder · Shipped in 2–4 weeks
    € 444,98
9 Oil plug Available GU12022600
  • Screw Plug Piaggio Group · GU12022600 Available · Shipped in 3–5 working days
    € 38,22
10 O-Ring Available GU90706203
  • O-Ring 20,24x2,62 mm Piaggio Group · GU90706203 Available · Shipped in 3–5 working days
    € 1,61
11 Threaded pin Available B064079
  • Bolts Piaggio Group · B064079 Available · Shipped in 3–5 working days
    € 5,06
12 Oil separator Backorder 2A001022
  • Oil Separator Piaggio Group · 2A001022 Backorder · Shipped in 2–4 weeks
    € 30,98
13 Shift cam cpl. Available 2A000991
  • 2A000991 Shift cam cpl.
    Gear shift drum Piaggio Group · 2A001047 ↻ Replaces 2A000991, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 164,97
14 Screw (M5x16) Backorder 2A000241
  • Screw M5x16 Piaggio Group · 2A000241 · Quantity needed: 4 Backorder · Shipped in 2–4 weeks
    € 0,99
15 Screw Available B013608
  • Screw Piaggio Group · B013608 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,26
16 Washer Available 873928
  • Washer Piaggio Group · 873928 Available · Shipped in 3–5 working days
    € 11,83
17 Set screw Backorder 2A001042
  • Screw Piaggio Group · 2A001042 Backorder · Shipped in 2–4 weeks
    € 18,89
18 Plate Backorder 2A001006
  • Plate Piaggio Group · 2A001006 Backorder · Shipped in 2–4 weeks
    € 6,53
19 Bearing Available 834764
  • Ball bearing Piaggio Group · 834764 Available · Shipped in 3–5 working days
    € 8,47
20 Seeger Available GU90271022
  • Circlip Piaggio Group · GU90271022 Available · Shipped in 3–5 working days
    € 1,62
21 Spacer Backorder GU05235531
  • Shim Piaggio Group · GU05235531 Backorder · Shipped in 2–4 weeks
    € 58,99
22 Pin Backorder 2A000938
  • Pin Piaggio Group · 2A000938 · Quantity needed: 6 Backorder · Shipped in 2–4 weeks
    € 9,35
23 Bearing Backorder 857250
  • Ball bearing Piaggio Group · 857250 Backorder · Shipped in 2–4 weeks
    € 12,86
24 Plate Backorder 2A001018
  • Plate Piaggio Group · 2A001018 Backorder · Shipped in 2–4 weeks
    € 10,64
25 Washer Backorder 2A001013
  • Shim Piaggio Group · 2A001013 Backorder · Shipped in 2–4 weeks
    € 9,21
26 Oil separator Backorder 2A001025
  • Oil Separator Piaggio Group · 2A001025 Backorder · Shipped in 2–4 weeks
    € 26,89
27 Fork for secondary shaft Available 2A000225
  • Shift fork Piaggio Group · 2A000225 Available · Shipped in 3–5 working days
    € 40,43
28 5-6 gear fork Available 2A000832
29 Fork 2-3 speed Available 2A000226
30 Rod Backorder 2A000224
  • Bolts Piaggio Group · 2A000224 Backorder · Shipped in 2–4 weeks
    € 18,11
31 Seeger Available GU90353014
  • Screw Piaggio Group · GU90353014 Available · Shipped in 3–5 working days
    € 8,47
32 Spacer Available GU05234230
  • Sleeve Piaggio Group · GU05234230 Available · Shipped in 3–5 working days
    € 9,98
33 Index spring Available B064113
  • Clamping Spring Piaggio Group · B064113 Available · Shipped in 3–5 working days
    € 4,49
34 Index assy. lever Backorder B064112
  • Index Lever Piaggio Group · B064112 Backorder · Shipped in 2–4 weeks
    € 13,76
35 Bushing Backorder GU05238431
  • Sleeve Piaggio Group · GU05238431 Backorder · Shipped in 2–4 weeks
    € 15,84
36 Preselection complete 2A000926 No longer available
  • 2A000926 Preselection complete
    No longer available
37 Spring Available GU05238231
  • Spring Piaggio Group · GU05238231 Available · Shipped in 3–5 working days
    € 5,55
38 Spring Available B063956
  • Clamping Spring Piaggio Group · B063956 Available · Shipped in 3–5 working days
    € 37,13
39 Fifth wheel Backorder GU05239330
  • Thrust Washer Piaggio Group · GU05239330 Backorder · Shipped in 2–4 weeks
    € 2,12
40 Seeger Available GU90271014
  • Circlip Piaggio Group · GU90271014 Available · Shipped in 3–5 working days
    € 1,21
41 Spacer Backorder 2A000467
  • Sleeve Piaggio Group · 2A000467 Backorder · Shipped in 2–4 weeks
    € 4,95
42 Gasket ring 14x24x7 Available GU90401424
  • Shaft Seal 14x24x7 mm Piaggio Group · GU90401424 Available · Shipped in 3–5 working days
    € 36,76
43 Gear box Backorder 2A0009615
  • Gearbox casing Piaggio Group · 2A0009615 Backorder · Shipped in 2–4 weeks
    € 552,86
44 Bearing Backorder 2A000981
45 Gasket (10x18x1,5) Available GU01528930
  • Oil seal 10x18x1,5 mm Piaggio Group · GU01528930 Available · Shipped in 3–5 working days
    € 5,01
46 Breather plug Available 2A000823
  • Bleeder Screw Piaggio Group · 2A000823 Available · Shipped in 3–5 working days
    € 12,25
47 Gasket 8.7x14.2x1.3 Available B063025
48 Sensor Available 1A011654
  • Sensor Piaggio Group · 1A011654 Available · Shipped in 3–5 working days
    € 95,75
49 Bearing Available 2A000097
50 Flat washer Backorder 2A001050
  • Washer Piaggio Group · 2A001050 Backorder · Shipped in 2–4 weeks
    € 2,69
51 Screw (6x12) Available AP8152277
  • Flanged Screw M6x12 Piaggio Group · AP8152277 Available · Shipped in 3–5 working days
    € 2,18
52 Washer Available GU95008206
  • Shim 6,15x11x0,8 mm Piaggio Group · GU95008206 Available · Shipped in 3–5 working days
    € 2,78
53 Fairlead Backorder 2B001138
  • Cable Guide Piaggio Group · 2B001138 Backorder · Shipped in 2–4 weeks
    € 8,95
54 Washer gasket Available 287174
  • Copper Flange Gasket Piaggio Group · 287174 Available · Shipped in 3–5 working days
    € 2,86
55 Plug Available 1A015068
  • Lid Piaggio Group · 1A015068 Available · Shipped in 3–5 working days
    € 5,15
