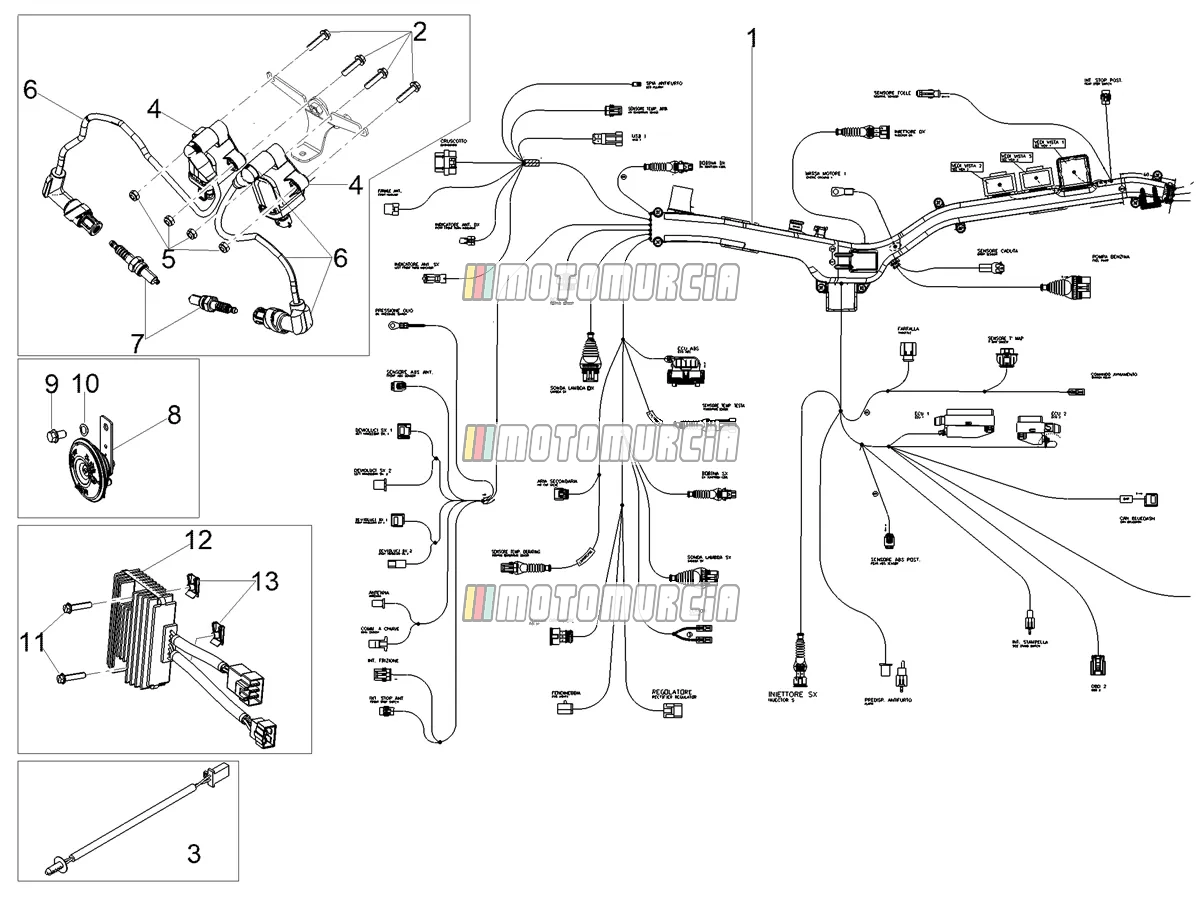

Exploded view — Front Electrical System

Products

1 Main wiring harness Backorder 2D000797

•

  Main wiring harness Piaggio Group · 2D000797 Backorder

  € 570,74

  Add to cart

2 Screw Available AP8152280

•

  Flanged Screw M6x25 Piaggio Group · AP8152280 · Quantity needed: 4 Available

  € 2,77

  Add to cart

3 Ambient temperature sensor Available 1D003720R

•

  Air temperature probe Piaggio Group · 1D003720R Available

  € 13,10

  Add to cart

4 Ignition coil Available 641901

•

  Ignition Coil Piaggio Group · 641901 · Quantity needed: 2 Available

  € 128,79

  Add to cart

5 Nut Available AP8150430

•

  Standard nut Piaggio Group · AP8150430 · Quantity needed: 4 Available

  € 1,48

  Add to cart

6 Complete H.V. cable Available CM277103

•

  Ignition Lead Piaggio Group · CM277103 · Quantity needed: 2 Available

  € 160,14

  Add to cart

7 Spark plug Available 1A010638

•

  Spark Plugs Iridium, MR8BI-8 Piaggio Group · 1A010638 · Quantity needed: 2 Available

  € 40,73

  Add to cart

8 Horn Available 2D000454

•

  Horn Piaggio Group · 2D000454 Available

  € 45,85

  Add to cart

9 Screw Available AP8152285

•

  Flanged Screw M8x16 Piaggio Group · AP8152285 Available

  € 2,18

  Add to cart

10 Washer Available 658837

•

  Washer Piaggio Group · 658837 Available

  € 2,99

  Add to cart

11 Screw Available AP8152281

•

  Flanged Screw M6x30 Piaggio Group · AP8152281 · Quantity needed: 2 Available

  € 2,18

  Add to cart

12 Voltage regulator Available 640698

•

  Regulator Piaggio Group · 640698 Available

  € 157,09

  Add to cart

13 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart
