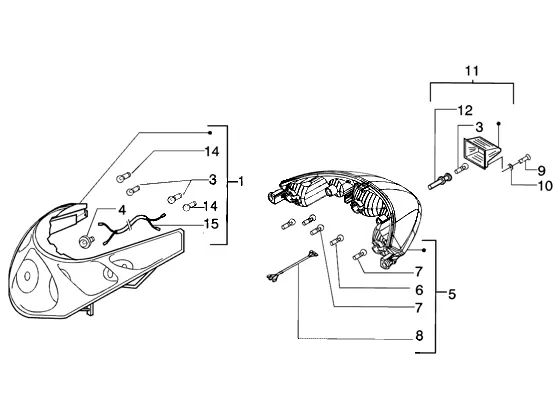

Exploded view — Headlampsand Turn Signal Lamps

Products

1 Headlight 582476 No longer available

• 582476 Headlight
  No longer available
• 583989 Headlight
  No longer available

3 Bulb (12V 5W T10) Available 2920225

•

  Bulbs Bulb, 12 V, 5 W, wedge base Piaggio Group · 2920225 · Quantity needed: 3 Available

  € 3,42

  Add to cart

4 Bulb (H7 55W 12V) Available 294353

•

  Bulbs Halogen, H7, 12 V, 55 W Piaggio Group · 294353 · Quantity needed: 2 Available

  € 37,12

  Add to cart

5 Taillight assy. Available 582596

•

  Rear light Piaggio Group · 582596 Available

  € 98,03

  Add to cart

6 Bulb (12V 3W) Available 294131

•

  Bulbs Bulb, 12 V, 3 W Piaggio Group · 294131 · Quantity needed: 2 Available

  € 2,88

  Add to cart

7 Bulb (BA15S 12V 10W) Available 181746

•

  Bulbs Bulb, 12 V, 10 W, BA15s Piaggio Group · 181746 · Quantity needed: 5 Available

  € 3,17

  Add to cart

8 Main wiring harness 583801 No longer available

• 583801 Main wiring harness
  No longer available

9 Screw Available 267115

•

  Sheet Metal Screw M4x16 Piaggio Group · 267115 Available

  € 0,99

  Add to cart

10 Washer Available 003054

•

  Washer Piaggio Group · 003054 Available

  € 1,77

  Add to cart

11 Lamp assy, number plate Available 58235R

•

  Number Plate Lights Piaggio Group · 58235R Available

  € 22,36

  Add to cart

12 Wire 583331 No longer available

• 583331 Wire
  No longer available

15 Main wiring harness 583796 No longer available

• 583796 Main wiring harness
  No longer available
