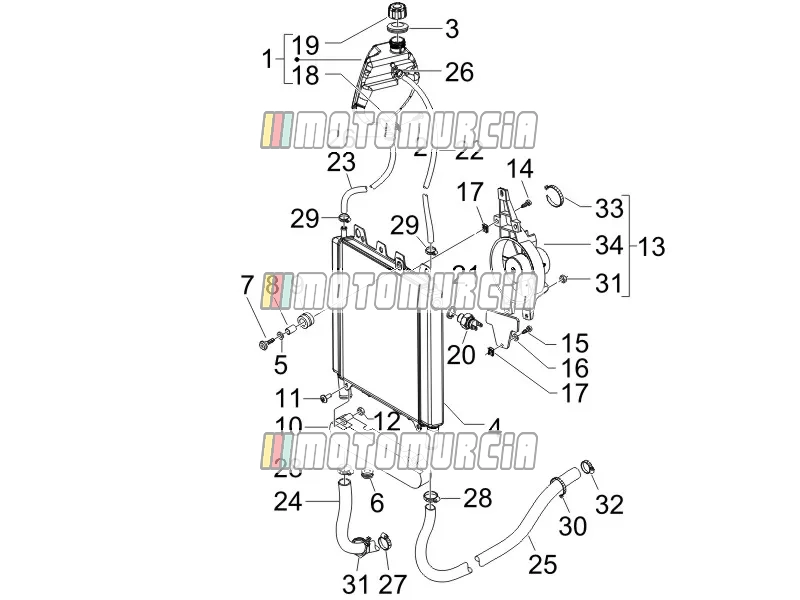

Exploded view — Cooling System

‹ Back to model
Piaggio Beverly 125 2005 Piaggio Beverly 125 2005
Cooling System

Products

1 Coolant tank 624598 No longer available
  • 624598 Coolant tank
    No longer available
3 Gasket ring Available 620737
  • Filler cap seal Piaggio Group · 620737 Available · Shipped in 3–5 working days
    € 2,60
4 Radiator - water cooler Available 57301R
  • Radiator Piaggio Group · 57301R Available · Shipped in 3–5 working days
    € 507,47
5 Washer d6,2x20x1 Available 013092
    • ABS version
    • ABS version
    Washer 6,2x20x1 mm Piaggio Group · 013092 Available · Shipped in 3–5 working days
    € 1,26
6 Damper Available 258904
  • Buffer Piaggio Group · 258904 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,17
7 Screw (M6x22) Available CM179302
    • ABS version
    • No ABS version
    • Country: Indonesia
    Screw M6x22 Piaggio Group · CM179302 Available · Shipped in 3–5 working days
    € 1,48
8 Spacer Available 273288
    • ABS version
    Spacer Piaggio Group · 273288 Available · Shipped in 3–5 working days
    € 2,18
9 Upper rubber Available 351782
  • Buffer Piaggio Group · 351782 Available · Shipped in 3–5 working days
    € 2,67
10 Radiator grill closure 624511 No longer available
  • 624511 Radiator grill closure
    No longer available
11 Screw Available 015761
  • Screw M6x30 Piaggio Group · 015761 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
12 Nut Available 288245
    • Taiwan version
    Collar nut M6 Piaggio Group · 288245 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
13 Fan engine Available 583758
  • Fan Piaggio Group · 583758 Available · Shipped in 3–5 working days
    € 138,39
14 Screw Available 272836
    • Country: United States of America
    Screw M6x16 Piaggio Group · 272836 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,39
15 Screw Available 267958
16 Washer (spring) Available 097733
    • ABS version
    • Country: Spain
    Shim 5,3x14x1 mm Piaggio Group · 097733 Available · Shipped in 3–5 working days
    € 3,22
18 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days
    € 2,04
19 Tank cap Available 623673
  • Tank Cap Piaggio Group · 623673 Available · Shipped in 3–5 working days
    € 19,66
20 Water temperature switch Backorder 584715
  • Temperature probe Piaggio Group · 584715 Backorder · Shipped in 2–4 weeks
    € 43,10
21 Copper gasket Available 168077
  • Copper Flange Gasket Piaggio Group · 168077 Available · Shipped in 3–5 working days
    € 5,63
22 Cooler-tank return pipe Backorder CM007015
  • Return Pipe Piaggio Group · CM007015 Backorder · Shipped in 2–4 weeks
    € 19,44
23 Oil delivery pipe Backorder 620685
  • Pipe Piaggio Group · 620685 Backorder · Shipped in 2–4 weeks
    € 16,89
24 Radiator-head pipe fitting link Available 57315R
  • Radiator hose Piaggio Group · 57315R Available · Shipped in 3–5 working days
    € 55,95
25 Pump-radiator pipe fitting 57319R No longer available
  • 57319R Pump-radiator pipe fitting
    No longer available
26 Clamp Available CM001904
  • Clamp Piaggio Group · CM001904 Available · Shipped in 3–5 working days
    € 1,72
27 4 - Clamp Available CM001922
    • 250 cc version (M361M)
    Hose Clamp Piaggio Group · CM001922 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,27
    • 250 cc version (M361M)
    Hose Clamp Piaggio Group · CM001908 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,35
28 Clamp Available CM001909
  • Hose Clamp Piaggio Group · CM001909 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,18
29 Clamp Available CM001914
  • Clamp Piaggio Group · CM001914 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,65
30 Hose clamp Available 257134
    • Taiwan
    • iGET version
    Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 0,99
31 Nut Available 012112
  • Standard nut Piaggio Group · 012112 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
32 Screw Available 015856
    • Injection version (C361M)
    Screw M5x21 Piaggio Group · 015856 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
33 Lock-strap L=180mm Available 145298
34 Maintenance 299382 No longer available
  • 299382 Maintenance
    No longer available

More drawings of this model
