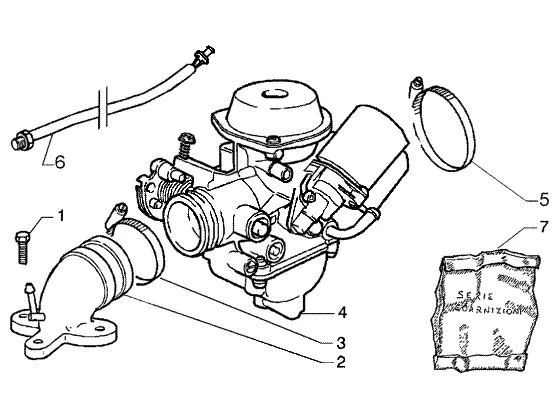

Exploded view — Carburettor

‹ Back to model

Piaggio Beverly 125 RST 1998–2005

Piaggio Beverly 125 RST 1998–2005

Carburettor

Products

1 Screw (M6x22) Available 1A000352

Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 3 Available

€ 3,71

2 Intake Manifold Available B016579

Intake manifold, with 2 connections Piaggio Group · B016579 Available

€ 37,22

3 Clamp Available 1A000833

Clamp Piaggio Group · 1A000833 Available

€ 10,74

4 Carburettor Available CM128204

Carburettor Keihin Piaggio Group · CM128204 Available

€ 923,92

5 Clamp Available 260918

Clamp Piaggio Group · 260918 Available

€ 5,13

6 Resistor Module Available 82961R6

Resistor Piaggio Group · 82961R6 Available

€ 33,64

7 Carburettor gasket set Per carburatore WALBRO 494921 No longer available

494921 Carburettor gasket set Per carburatore WALBRO
No longer available
