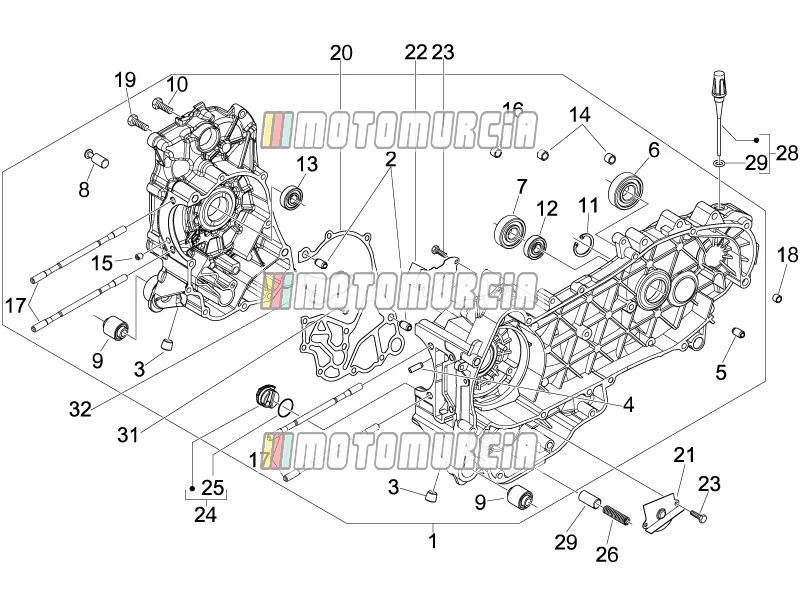

Exploded view — Crankcase

‹ Back to model
Piaggio Beverly 125 Tourer 2008 Piaggio Beverly 125 Tourer 2008
Crankcase

Products

1 Crankcase assy Available CM1529035001
  • Crankshaft Housing Cat. 1 Piaggio Group · CM1529035001 Available
    € 1.049,34
  • CM1529035002 Crankcase assy
    No longer available
2 Dowel pin Available B015956
3 Cover M12x1,5 Available B015433
  • Screw Plug M12x1.5 Piaggio Group · B015433 · Quantity needed: 2 Available
    € 8,86
4 Nozzle Available 484034
  • Jet Piaggio Group · 484034 Available
    € 8,58
5 Bush Ø8xØ12x8 Available 431860
6 Bearing Available 83018R
7 Bearing Available 1A024412R
8 Springs fixing pin Available 483785
  • Bolts Piaggio Group · 483785 Available
    € 5,78
9 Silentblock - engine mount Available 486081
  • Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available
    € 10,29
11 Seeger Available B015959
12 Oil seal Available 82878R
13 Oil seal Available 82898R
14 Dowel pin Available B015957
15 Nozzle D 1.1 Available 844582
  • Jet Piaggio Group · 844582 Available
    € 8,68
16 Dowel pin Available 484993
17 Stud bolt (125 - 200 ccm) Available 1A003629R
  • Stud Screw Piaggio Group · 1A003629R · Quantity needed: 4 Available
    € 12,02
18 Dowel pin Available 277916
19 Screw Available B016425
  • Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 11 Available
    € 1,82
20 Gasket - crankcase Available 875111
21 Lower oil bulkhead Available 483767
22 Upper oil bulkhead Available 485047
23 Screw Available 830061
24 Filter door insert Available 845861
  • Filter Insert Piaggio Group · 845861 Available
    € 11,27
25 O-Ring Available 431065
  • Oil seal Piaggio Group · 431065 Available
    € 1,21
26 Spring Available 485655
  • Spring Piaggio Group · 485655 Available
    € 1,65
27 Complete oil level dipstick Available 832130
  • Oil dipstick Piaggio Group · 832130 Available
    € 6,34
28 Gasket ring Available 827085
29 Oil pressure valve Available 829661
31 Screw Available 1A003111
  • Screw M5x10 Piaggio Group · 1A003111 Available
    € 3,06
32 Plate Backorder 876657
  • Guide Plate Piaggio Group · 876657 Backorder
    € 5,07

More drawings of this model

View all →
