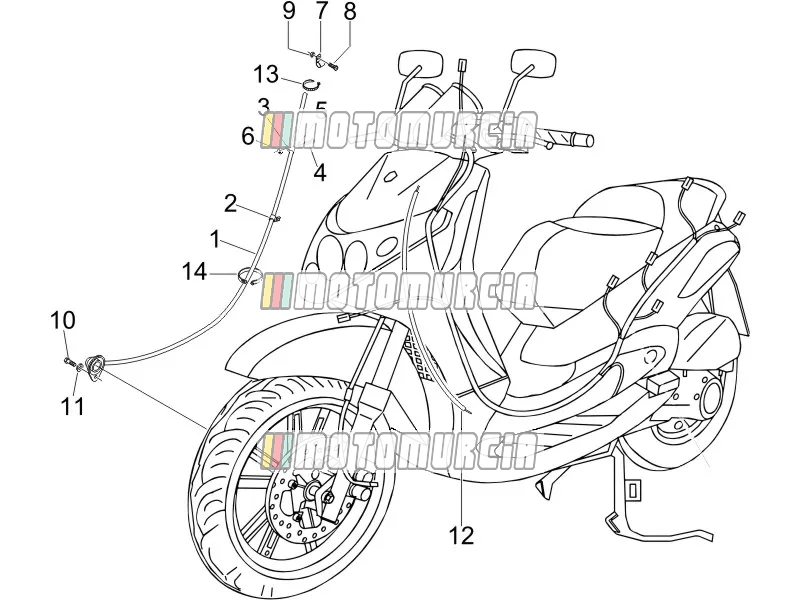

Exploded view — Transmissions

Products

1 Speedometer cable Available 648992

•

  Speedometer shaft Piaggio Group · 648992 Available

  € 24,93

  Add to cart

3 Clamp Available 600452

•

  Clamp Piaggio Group · 600452 Available

  € 13,94

  Add to cart

4 Screw Available 015585

•

  Thread Screw M5x12 Piaggio Group · 015585 Available

  € 1,39

  Add to cart

5 Washer Available 006078

•

  Washer 12x5,2x1 mm Piaggio Group · 006078 Available

  € 0,99

  Add to cart

6 Nut Available 012112

•

  Standard nut Piaggio Group · 012112 Available

  € 0,99

  Add to cart

7 Retainer clamp 487824 No longer available

• 487824 Retainer clamp
  No longer available

8 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 Available

  € 0,99

  Add to cart

9 Nut Available 012138

•

  Standard nut Piaggio Group · 012138 Available

  € 5,07

  Add to cart

10 Screw Available 598839

•

  Flanged Screw M6x16 Piaggio Group · 598839 Available

  € 1,48

  Add to cart

11 Washer Available 006966

•

  Washer 6,4x11x0,5 mm Piaggio Group · 006966 Available

  € 1,84

  Add to cart

12 Benz. flap opening transmission Available CM012803

•

  Fuel filler cable Piaggio Group · CM012803 Available

  € 10,29

  Add to cart

14 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

  € 1,43

  Add to cart
