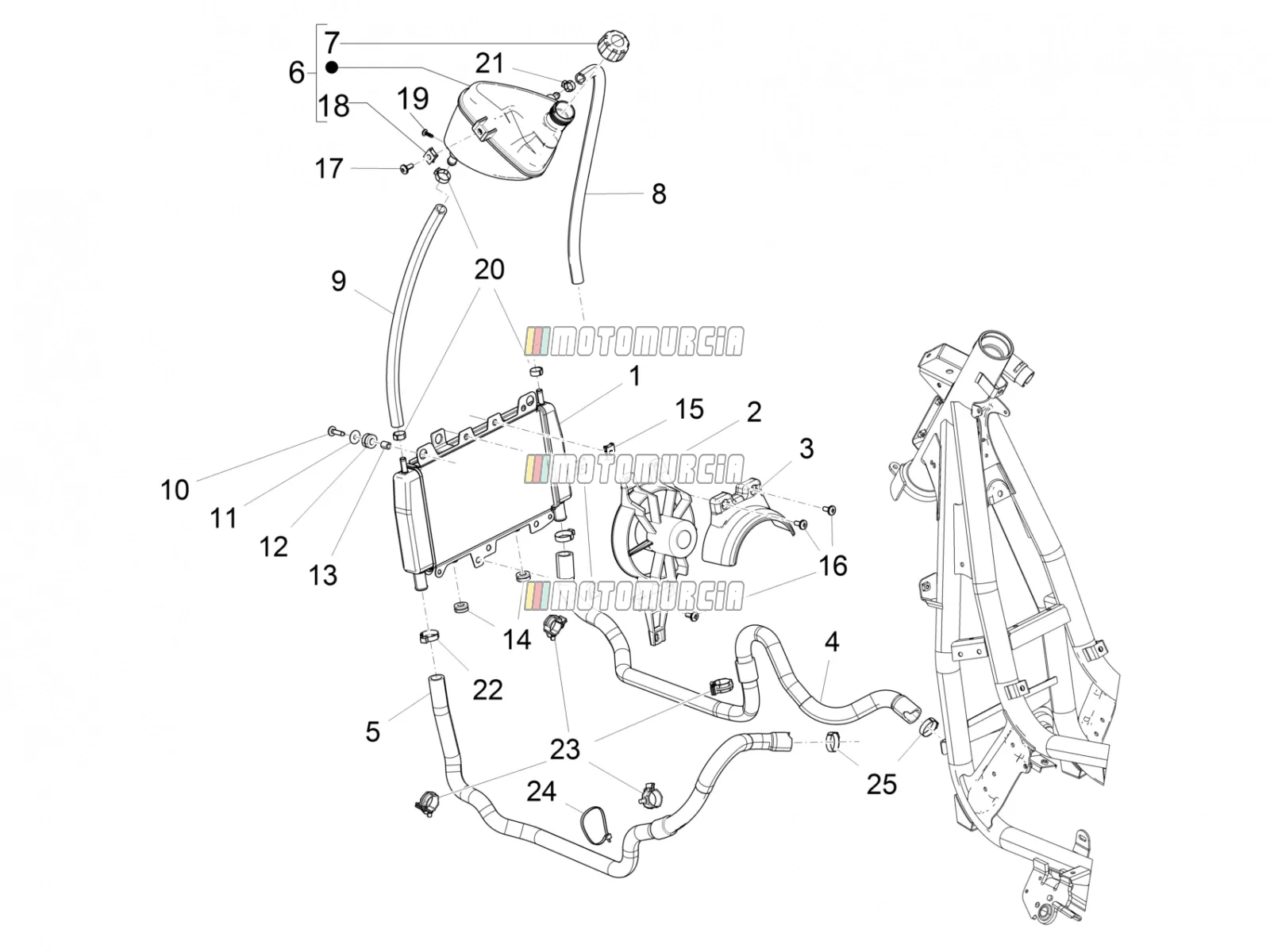

Exploded view — Cooling System

Products

1 Radiator - water cooler Available 656528

•

  Radiator Piaggio Group · 656528 Available

  € 226,77

  Add to cart

2 Cooling fan Available 58211R

•

  Fan Piaggio Group · 58211R Available

  € 235,59

  Add to cart

3 Fan shroud Available 672464

•

  Air Guide Plate Piaggio Group · 672464 Available

  € 16,30

  Add to cart

4 Radiator pump connection pipe Available 657489

•

  Radiator hose Piaggio Group · 657489 Available

  € 92,27

  Add to cart

5 Radiator big end connection pipe Available 57349R

•

  Radiator hose Piaggio Group · 57349R Available

  € 110,29

  Add to cart

6 Coolant tank Available 656807

•

  Coolant Reservoir Piaggio Group · 656807 Available

  € 82,90

  Add to cart

7 Tank cap Available 623673

•

  Tank Cap Piaggio Group · 623673 Available

  € 19,66

  Add to cart

8 Cooler-tank return pipe Backorder CM007017

•

  Radiator hose Piaggio Group · CM007017 Backorder

  € 29,12

  Add to cart

9 Water rad.feed pipe Available CM007018

•

  Radiator hose Piaggio Group · CM007018 Available

  € 15,27

  Add to cart

10 Screw M6x25 Backorder CM179305

•

  Screw M6x25 Piaggio Group · CM179305 Backorder

  € 1,45

  Add to cart

11 Washer d6,2x20x1 Available 013092

•

  Washer 6,2x20x1 mm Piaggio Group · 013092 Available

  € 1,26

  Add to cart

12 Upper rubber Available 351782

•

  Buffer Piaggio Group · 351782 Available

  € 2,67

  Add to cart

13 Spacer Available 273288

•

  Spacer Piaggio Group · 273288 Available

  € 2,18

  Add to cart

14 Damper Available 258904

•

  Buffer Piaggio Group · 258904 · Quantity needed: 2 Available

  € 2,17

  Add to cart

15 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 3 Available

  € 2,04

  Add to cart

17 Screw Available CM179301

•

  Screw M6x16 Piaggio Group · CM179301 Available

  € 1,48

  Add to cart

19 Screw (4x16) Available CM180701

•

  Sheet Metal Screw 4x16 mm Piaggio Group · CM180701 Available

  € 0,99

  Add to cart

20 Clamp CM001902 No longer available

• CM001902 Clamp Quantity needed: 3
  No longer available

21 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart

22 Clamp Available CM001909

•

  Hose Clamp Piaggio Group · CM001909 · Quantity needed: 2 Available

  € 2,18

  Add to cart

23 10 - Fairlead Available CM006903

•

  Clamp Piaggio Group · CM006903 · Quantity needed: 4 Available

  € 4,51

  Add to cart

24 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 Available

  € 0,99

  Add to cart

25 4 - Clamp Available CM001922

•

  Hose Clamp Piaggio Group · CM001922 · Quantity needed: 2 Available

  € 2,27

  Add to cart
