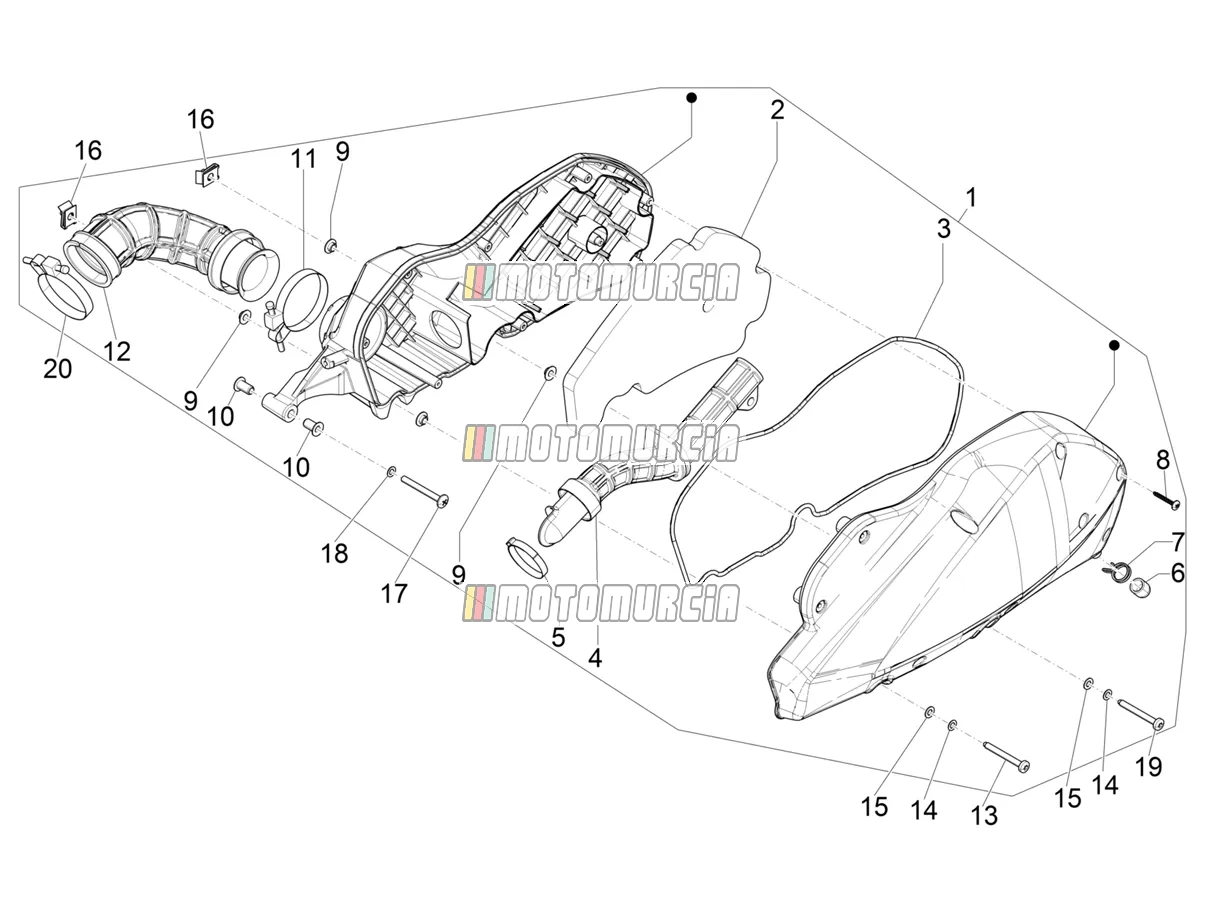

Exploded view — Air Filter

‹ Back to model
Piaggio Beverly 300 IE HPE ABS 2021 Piaggio Beverly 300 IE HPE ABS 2021
Air Filter

Products

1 Air filter box Available 1A012926
  • Air Filter complete Piaggio Group · 1A012926 Available · Shipped in 3–5 working days
    € 207,82
2 Air filter Available 8292580P
  • Air Filter Insert Premium Piaggio Group · 8292580P Available · Shipped in 3–5 working days
    € 12,15

    Alternatives from other brands

    OIL FILTER Ison · ISON184 Available · Shipped in 4–7 working days
    € 6,36
    Oil Filter Champion · COF084 Available · Shipped in 4–7 working days
    € 9,89
3 Seal air filter box Available 829259
  • Gasket Piaggio Group · 829259 Available · Shipped in 3–5 working days
    € 13,09
4 Intake hose Available 1A011539
  • Intake Boot Piaggio Group · 1A011539 Available · Shipped in 3–5 working days
    € 84,78
5 Clamp Available CM001928
    • "Stone" version
    Clamps Piaggio Group · CM001928 Available · Shipped in 3–5 working days
    € 8,91
6 Cap Available 827831
  • Cap, transparent Piaggio Group · 827831 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 5,74
7 Clamp Available CM002910
  • Clamping Spring Piaggio Group · CM002910 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,29
8 Screw Available 478533
    • Carburettor version (C364M)
    Thread Screw Piaggio Group · 478533 · Quantity needed: 9 Available · Shipped in 3–5 working days
    € 1,26
9 Spacer Available 830056
  • Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,48
10 Bushing Available 830057
  • Spacer Bush Piaggio Group · 830057 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 4,15
11 Clamp Available 260918
  • Clamp Piaggio Group · 260918 Available · Shipped in 3–5 working days
    € 5,13
12 Air bellow Available 1A012927
  • Intake Boot Piaggio Group · 1A012927 Available · Shipped in 3–5 working days
    € 64,65
13 Screw (spec) Available 1B000678
  • Screw Piaggio Group · 1B000678 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
14 Washer Available 003056
    • Enjoy 2015
    Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,84
15 Washer Available 012533
  • Washer 6,6x11 mm Piaggio Group · 012533 Available · Shipped in 3–5 working days
    € 1,45
16 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,04
17 Metric screw torx Available CM179306
  • Torx screw Piaggio Group · CM179306 Available · Shipped in 3–5 working days
    € 2,93
19 Screw M6x45 Available CM179308
  • Screw M6x45 Piaggio Group · CM179308 Available · Shipped in 3–5 working days
    € 1,61

More drawings of this model

View all →

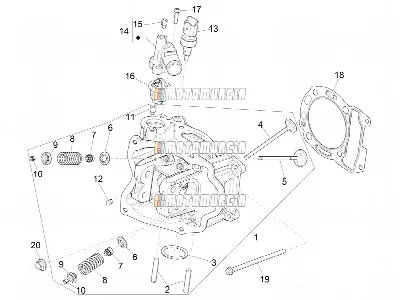

Anti-percolation System Anti-percolation System View drawings Cooler Pump Cooler Pump View drawings Cooling System Cooling System View drawings Crankcase Crankcase View drawings Crankcase Cover - Crankcase Cooling Crankcase Cover - Crankcase Cooling View drawings Crankshaft Crankshaft View drawings Cylinder Head Cover Cylinder Head Cover View drawings Cylinder Head Unit - Valve Cylinder Head Unit - Valve View drawings Cylinder-piston-wrist Pin Unit Cylinder-piston-wrist Pin Unit View drawings Driven Pulley Driven Pulley View drawings Driving Pulley Driving Pulley View drawings Engine, Assembly Engine, Assembly View drawings
