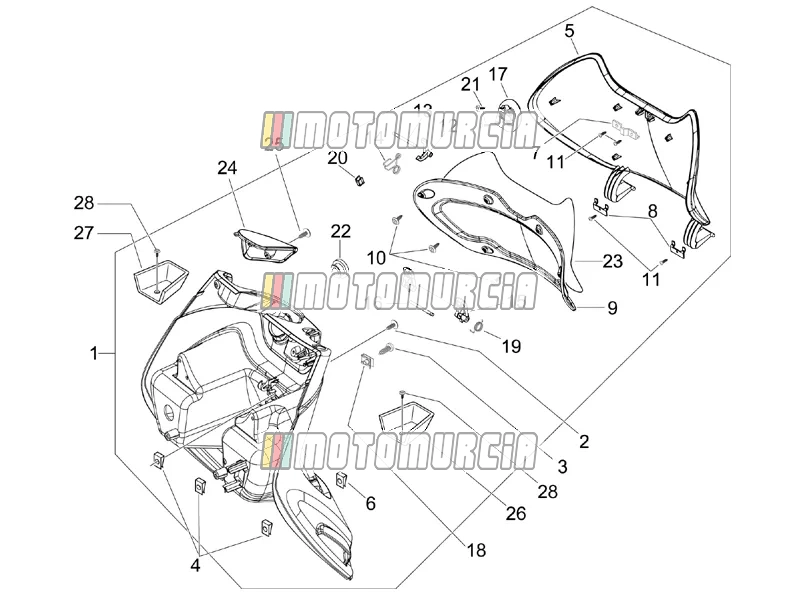

Exploded view — Front Glove-box - Knee-guard Panel

Products

1 GLOVEBOX COMPARTMENT (RAW) BV 65293900DE No longer available

• 65293900DE GLOVEBOX COMPARTMENT (RAW) BV
  No longer available
• 65293900BT Complete front top box
  No longer available
• 652939 Front glove comp.
  No longer available
• 65293900RR Complete front top box
  No longer available
• 65293900XN2 Complete front top box
  No longer available
• 65293900EU Complete front top box
  No longer available

2 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 4 Available

  € 0,99

  Add to cart

3 Screw Available 272836

•

  Screw M6x16 Piaggio Group · 272836 Available

  € 1,39

  Add to cart

4 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 6 Available

  € 0,99

  Add to cart

5 Glove compartment door 621672000C No longer available

• 621672000C Glove compartment door
  No longer available

7 Square Available 252420

•

  Bracket Piaggio Group · 252420 Available

  € 4,94

  Add to cart

8 Door fixing bracket Available 257614

•

  Bracket Piaggio Group · 257614 · Quantity needed: 2 Available

  € 2,26

  Add to cart

9 Counter flap Backorder 576794

•

  Cover Piaggio Group · 576794 Backorder

  € 39,93

  Add to cart

10 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 6 Available

  € 0,99

  Add to cart

11 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 4 Available

  € 0,99

  Add to cart

12 Pawl Available 575607

•

  Lever Piaggio Group · 575607 Available

  € 3,28

  Add to cart

13 2 - Pin Available 575021

•

  Bracket Piaggio Group · 575021 Available

  € 14,82

  Add to cart

14 Spring Available 1B003658

•

  Spring Piaggio Group · 1B003658 Available

  € 3,86

  Add to cart

15 Lever Available 577861

•

  Lever Piaggio Group · 577861 · Quantity needed: 2 Available

  € 6,59

  Add to cart

16 Pin Backorder 575062

•

  Bolts Piaggio Group · 575062 Backorder

  € 4,16

  Add to cart

17 Bag holder hook Available 575819

•

  Hooks Piaggio Group · 575819 Available

  € 17,99

  Add to cart

18 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

19 Spring 575610 No longer available

• 575610 Spring
  No longer available

20 Catch spring Available 299693

•

  Spring Piaggio Group · 299693 Available

  € 0,99

  Add to cart

21 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available

  € 0,99

  Add to cart

22 Cover Available 190567

•

  Plug Piaggio Group · 190567 Available

  € 8,66

  Add to cart

23 Gasket Available 297275

•

  Gasket Piaggio Group · 297275 Available

  € 12,43

  Add to cart

24 Coolant insp. door Backorder 621669

•

  Lid, right, primed Piaggio Group · 621669 Backorder

  € 55,50

  Add to cart
• 62166900RR Coolant insp. door
  No longer available
• 62166900DE Coolant insp. door
  No longer available
• 62166900EU Coolant insp. door
  No longer available
• 62166900XN2 Coolant insp. door
  No longer available
•

  Lid, right, white, Suffix: BT_white pearl 566 Piaggio Group · 62166900BT Backorder

  € 69,22

  Add to cart

26 LUGGAGE COMPART. FRAME CM012001 No longer available

• CM012001 LUGGAGE COMPART. FRAME
  No longer available
•

  Storage Compartment, left Piaggio Group · CM012001000C Backorder

  € 16,17

  Add to cart

27 Right top box internal frame CM012002 No longer available

• CM012002 Right top box internal frame
  No longer available
•

  Storage Compartment, right Piaggio Group · CM012002000C Backorder

  € 16,17

  Add to cart
