Piaggio Beverly 300 ie Tourer 2012 Piaggio Beverly 300 ie Tourer 2012

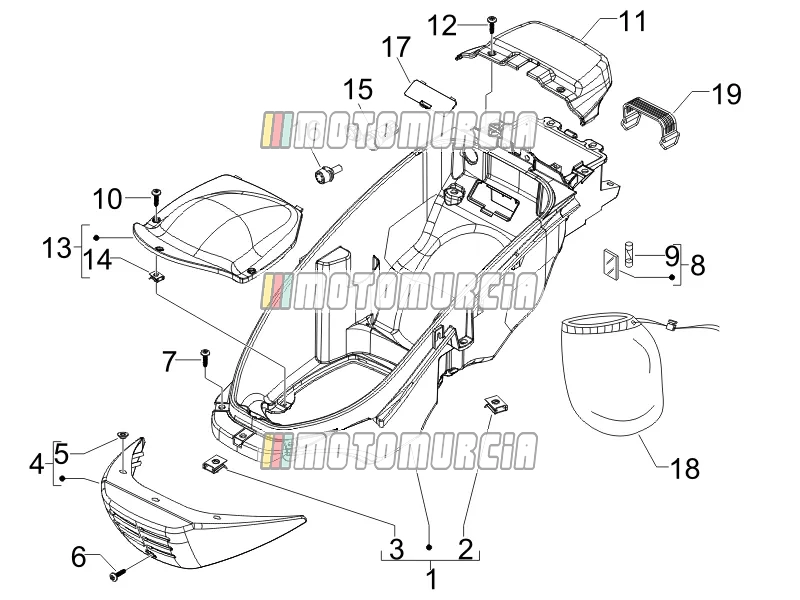

Helmet Huosing - Undersaddle

Products

1 Helmet holder assembly 621729 No longer available
  • 621729 Helmet holder assembly
    No longer available
2 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 5 Available
    € 0,99
3 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 9 Available
    € 2,04
4 Undersaddle lock 576377000C No longer available
  • 576377000C Undersaddle lock
    No longer available
5 Spacer Available 830056
  • Sleeve Piaggio Group · 830056 · Quantity needed: 3 Available
    € 1,48
7 Screw Available 272836
  • Screw M6x16 Piaggio Group · 272836 · Quantity needed: 8 Available
    € 1,39
8 Ceiling bowl Available 293154
  • Lamp Piaggio Group · 293154 Available
    € 15,63
9 Bulb (12V 5W) Available 071633
10 Screw Available CM178606
  • Sheet Metal Screw Piaggio Group · CM178606 · Quantity needed: 3 Available
    € 10,19
11 Battery cover Available 620756000C
  • Battery Cover Piaggio Group · 620756000C Available
    € 29,77
12 Screw (4,2x19) Available 258249
  • Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 2 Available
    € 0,99
13 Carburettor cover 623958 No longer available
  • 623958 Carburettor cover
    No longer available
14 Washer Available 230359
  • Washer Piaggio Group · 230359 · Quantity needed: 4 Available
    € 1,22
15 LV socket 12V Available 294770
16 Cover Available 581412
  • Lock Piaggio Group · 581412 · Quantity needed: 2 Available
    € 4,94
17 Type-testing inspection door Available 576793
  • Lid Piaggio Group · 576793 Available
    € 9,95
18 Cover helmet 623577 No longer available
  • 623577 Cover helmet
    No longer available
19 Strip Available 090854

More drawings of this model

View all →
