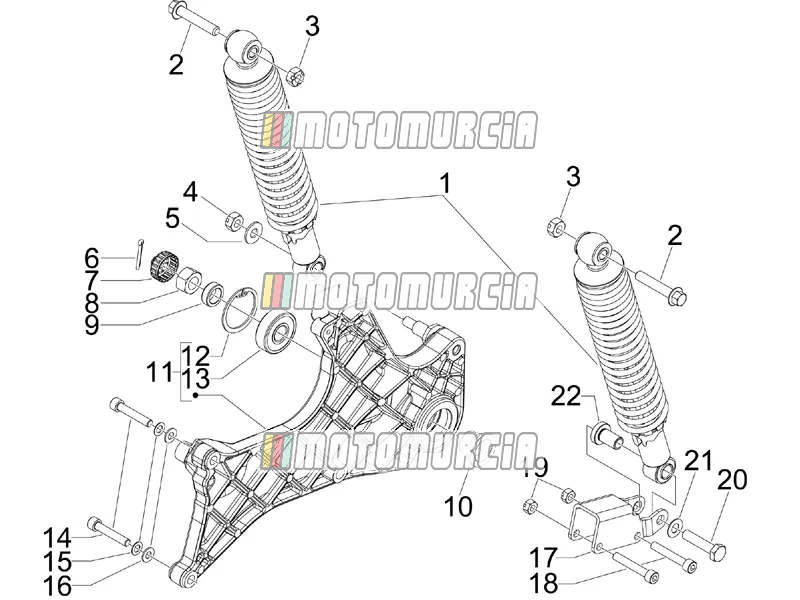

Exploded view — Rear Suspension - Shock Absorber/s

Products

1 Rear shock absorber Available 601014

•

  Shocks rear, Kayaba Piaggio Group · 601014 · Quantity needed: 2 Available

  € 135,71

  Add to cart

2 Screw Available 268158

•

  Flanged Screw M10 Piaggio Group · 268158 · Quantity needed: 2 Available

  € 2,18

  Add to cart

4 Nut Available 002440

•

  Standard nut M10 Piaggio Group · 002440 Available

  € 1,11

  Add to cart

5 Washer Available 016626

•

  Washer 10,4x18x2 mm Piaggio Group · 016626 Available

  € 1,44

  Add to cart

6 Pin, split Available 012789

•

  Split Pin Piaggio Group · 012789 Available

  € 1,66

  Add to cart

7 Nut hold cap Available 1C004746

•

  Covering Cap Piaggio Group · 1C004746 Available

  € 3,94

  Add to cart

8 Nut Available 563728

•

  Standard nut Piaggio Group · 563728 Available

  € 2,77

  Add to cart

9 Spacer Available 597528

•

  Spacer Piaggio Group · 597528 Available

  € 8,19

  Add to cart

10 Spacer Available 848039

•

  Spacer Piaggio Group · 848039 Available

  € 28,36

  Add to cart

11 Engine suspension bracket r.h. 599867 No longer available

• 599867 Engine suspension bracket r.h.
  No longer available

12 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

13 Bearing Available 82545R

•

  Radial bearing BB1-0683, 17x47x14 mm Piaggio Group · 82545R Available

  € 24,85

  Add to cart

14 Screw Available 826298

•

  Screw Piaggio Group · 826298 · Quantity needed: 2 Available

  € 1,45

  Add to cart

15 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 · Quantity needed: 2 Available

  € 1,84

  Add to cart

16 Washer Available 709047

•

  Washer Piaggio Group · 709047 · Quantity needed: 2 Available

  € 0,99

  Add to cart

17 Plate Backorder 597979

•

  Bracket Piaggio Group · 597979 Backorder

  € 14,50

  Add to cart

18 Screw Available 844483

•

  Screw M8x50 Piaggio Group · 844483 · Quantity needed: 2 Available

  € 0,99

  Add to cart

19 Nut Available 020008

•

  Standard nut M8 Piaggio Group · 020008 · Quantity needed: 2 Available

  € 1,48

  Add to cart

20 Screw (M10x45) Available 015578

•

  Hexagon Screw M10x45 Piaggio Group · 015578 Available

  € 2,18

  Add to cart

21 Washer Available 012535

•

  Washer Piaggio Group · 012535 Available

  € 1,52

  Add to cart

22 Bush 597980 No longer available

• 597980 Bush
  No longer available
