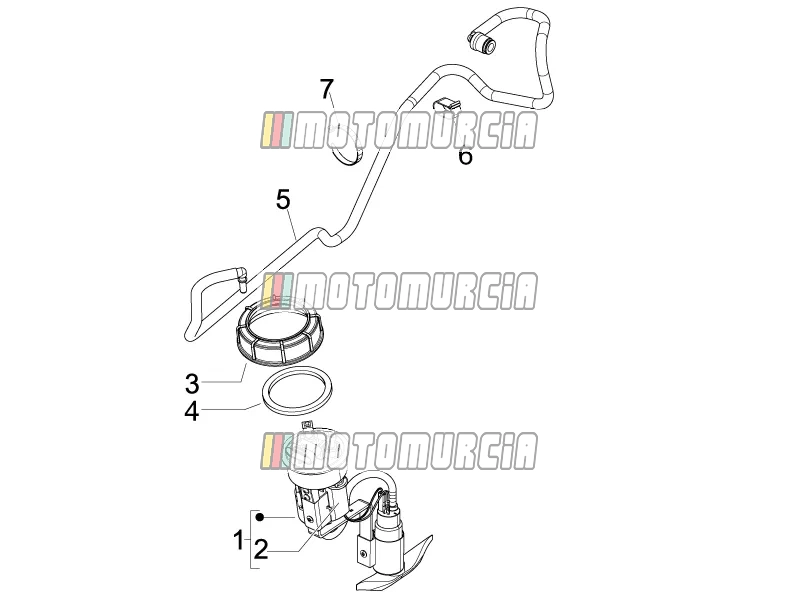

Exploded view — Supply System

‹ Back to model

Piaggio Beverly 300 ie Tourer 2012

Piaggio Beverly 300 ie Tourer 2012

Supply System

Products

1 Fuel pump Available 640517

Petrol Pump Piaggio Group · 640517 Available

€ 351,65

2 Fuel filter Available 639357

Petrol Filter Piaggio Group · 639357 Available

€ 186,61

3 Ring nut Available 576546

Tank Cap Piaggio Group · 576546 Available

€ 8,40

4 Gasket Available 656003

Gasket Piaggio Group · 656003 Available

€ 26,78

5 Fuel feed pipe 623952 No longer available

623952 Fuel feed pipe
No longer available

6 Non return spring L=12 Available CM006905

Clamp length: 12mm Piaggio Group · CM006905 Available

€ 5,09

7 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

€ 1,43
