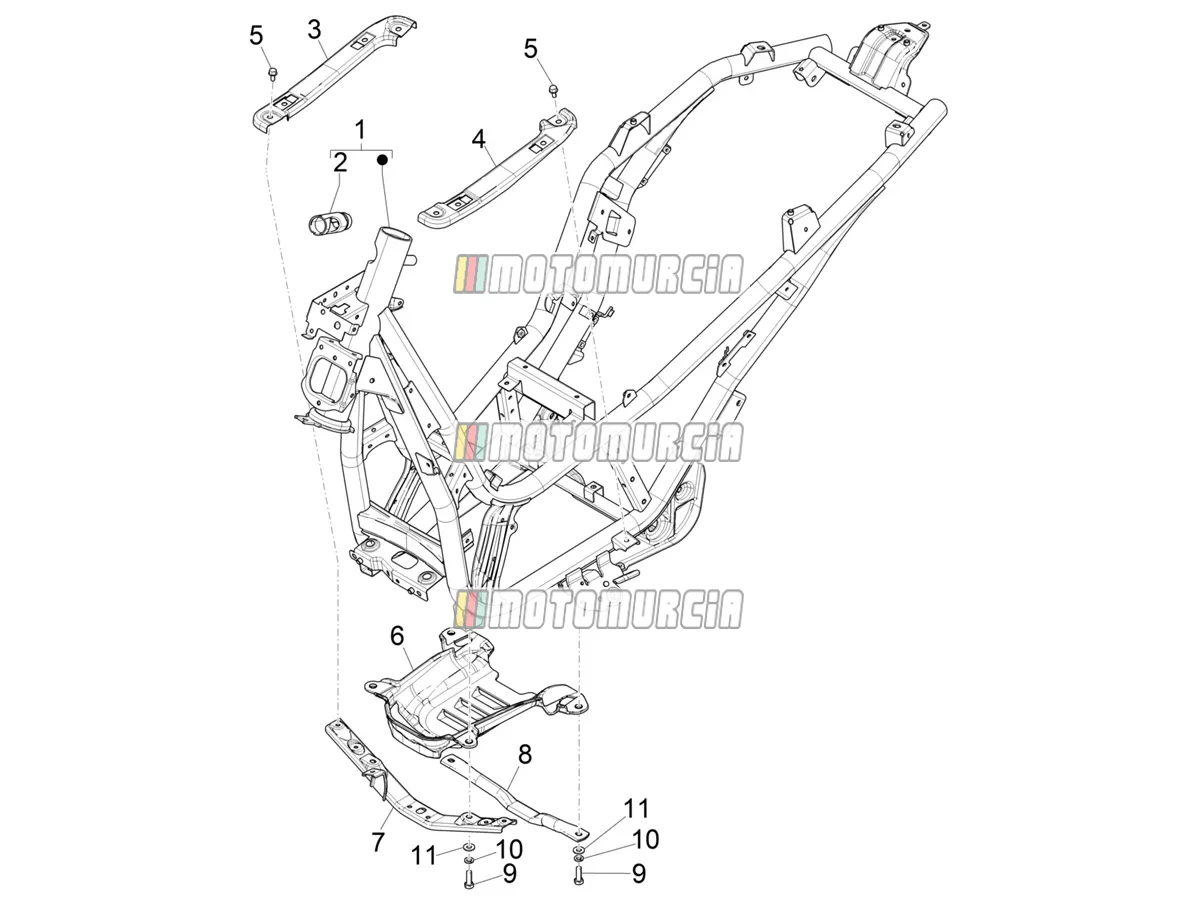

Exploded view — Frame/bodywork
‹ Back to model
Piaggio Beverly 310 E5+ 25° Anniversario 2026
Products
1 * FRAME WITH I.P. Backorder
-
* FRAME WITH I.P. Piaggio Group · 1B012447 Backorder · Shipped in 2–4 weeks€ 1.529,82
2 Lock support Available
-
Lock Mounting Piaggio Group · 1B006491 Available · Shipped in 3–5 working days€ 81,22
3 Pin r.h. Available
-
Cross Member right Piaggio Group · 1B00741445 Available · Shipped in 3–5 working days€ 30,70
4 Pin l.h. Available
-
Cross Member left Piaggio Group · 1B00741545 Available · Shipped in 3–5 working days€ 30,70
5 Screw Available
-
Flanged Screw M6x14 Piaggio Group · B016426 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 1,48
6 Tank bulkhead complete Backorder
-
Sump protection Piaggio Group · 1B008529 Backorder · Shipped in 2–4 weeks€ 48,40
7 Pipes connection cross pin Available
-
Cross Member Piaggio Group · 1B008525 Available · Shipped in 3–5 working days€ 52,32
8 Small carrier connector front pipe Available
-
Cross Member Piaggio Group · 6724355 Available · Shipped in 3–5 working days€ 46,89
9 Screw Available
-
Screw Piaggio Group · 031120 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
10 Washer (spring) Available
-
Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,84
11 Washer Available
-
Shim 8,4x18x2 mm Piaggio Group · 003038 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,43
