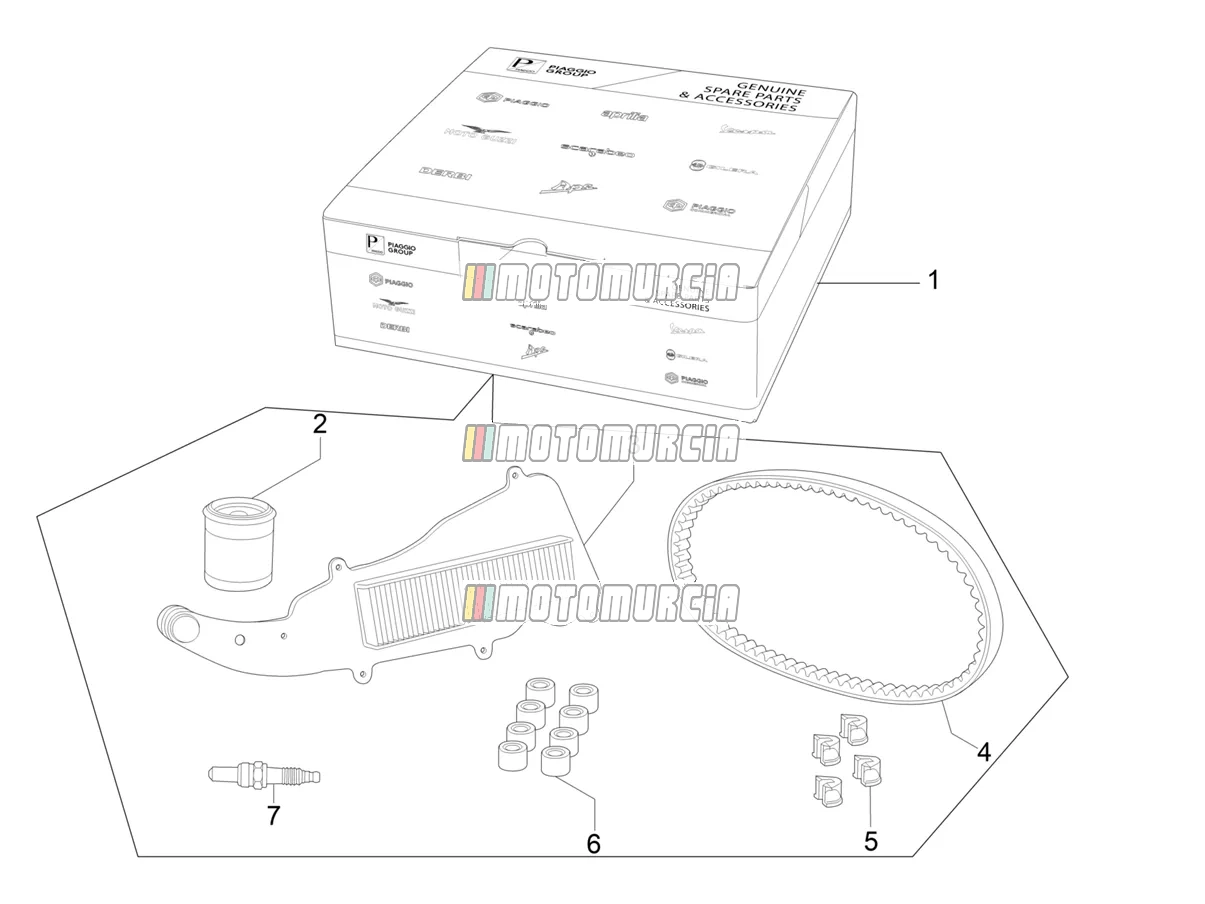

Exploded view — Complete Wear And Maintenance Kit

‹ Back to model

Piaggio Beverly 400 ABS (USA) 2021

Piaggio Beverly 400 ABS (USA) 2021

Complete Wear And Maintenance Kit

Products

1 Maintenance kit Available 1R000532

Inspection kit without brake pads, Piaggio MP3 400 E5/Beverly 400 E5 Piaggio Group · 1R000532 Available

€ 341,28

2 Oil filter Available 880887

Oil Filter Piaggio Group · 880887 Available

€ 5,67

3 Air filter Available 1A023584

Air filter Piaggio Group · 1A023584 Available

€ 65,87

4 V-belt Available 1A016410

V-Belt Piaggio Group · 1A016410 Available

€ 154,11

5 Variator slider Available B014584

Slide Piaggio Group · B014584 · Quantity needed: 4 Available

€ 5,77

6 Roller weights Available 1A019456

Variator roller 25x16 mm, 18,5 g, Content: 1 Stk Piaggio Group · 1A019456 · Quantity needed: 8 Available

€ 4,73

7 Spark plug (MR7BI-8) Available 1A013926

Spark Plugs Iridium, MR7BI-8 Piaggio Group · 1A013926 Available

€ 55,31
