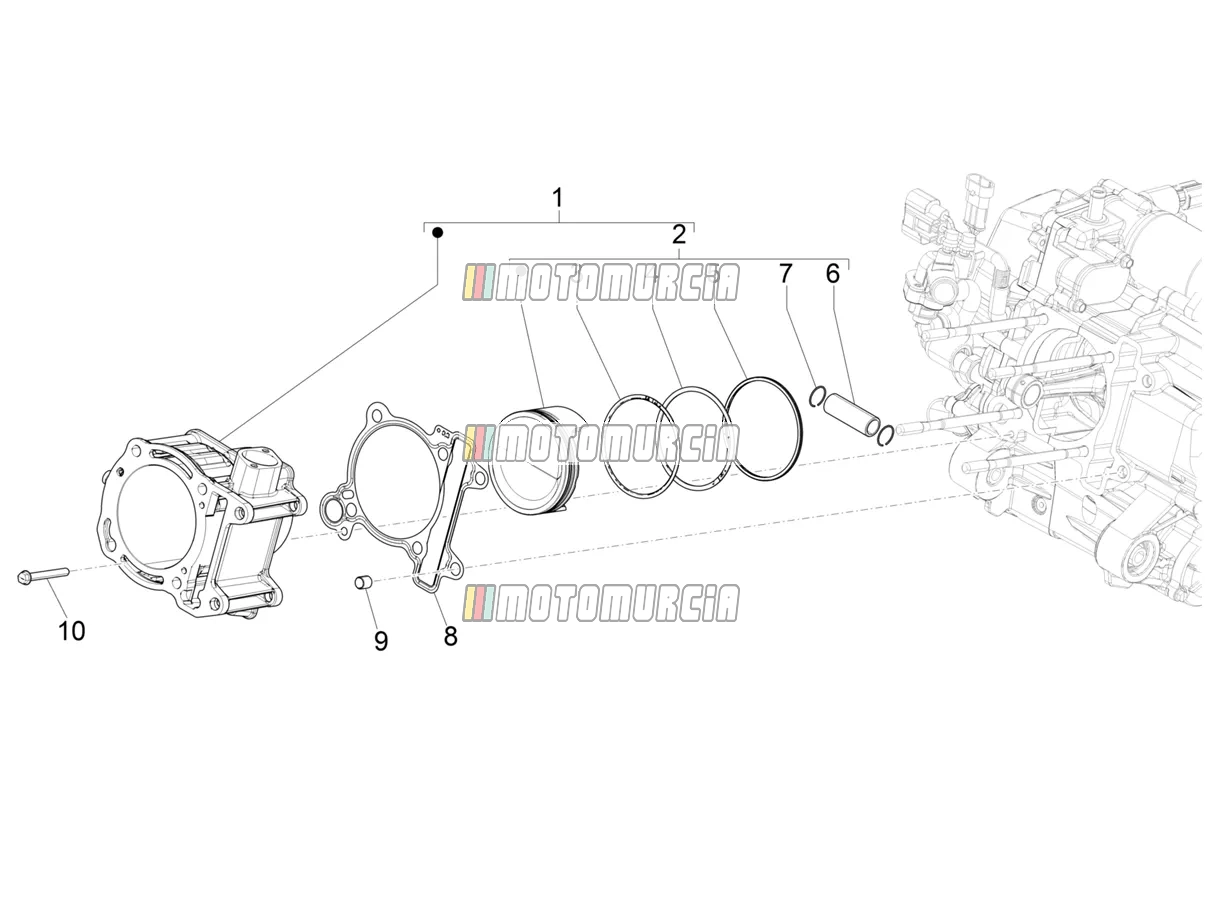

Exploded view — Cylinder-pistston-wrist Pin Unit

Products

1 Cylinder - piston - pin - parts- rings assembly Available 1A020598

•

  Cylinder Piaggio Group · 1A020598 Available

  € 384,10

  Add to cart

2 Piston + piston pin Cat. 2 "N" Backorder 1A0205960N

•

  Piston Cat. 2 Piaggio Group · 1A0205960N Backorder

  € 222,80

  Add to cart
•

  Piston Cat. 3 Piaggio Group · 1A0205960O Backorder

  € 222,80

  Add to cart
•

  Piston Cat. 4 Piaggio Group · 1A0205960P Backorder

  € 222,80

  Add to cart
•

  Piston Cat. 1 Piaggio Group · 1A0205960M Available

  € 222,80

  Add to cart

3 Compression ring Available 1A013936

•

  Piston Ring Piaggio Group · 1A013936 Available

  € 34,61

  Add to cart

4 Compression ring Available 1A004954

•

  Piston Ring Piaggio Group · 1A004954 Available

  € 34,94

  Add to cart

5 Oil scraper section Ø84 Available 1A019607

•

  Piston ring scraper Ø 84,00 mm Piaggio Group · 1A019607 Available

  € 40,69

  Add to cart

6 Piston pin Backorder 1A018461

•

  Piston Pin Piaggio Group · 1A018461 Backorder

  € 22,70

  Add to cart

7 Seeger Available 878897

•

  Piston Clip Piaggio Group · 878897 · Quantity needed: 2 Available

  € 1,45

  Add to cart

8 Crankcase/cylinder gasket 0,4 Available 1A013233

•

  Cylinder Base Gasket thickness: 0,40 mm Piaggio Group · 1A013233 Available

  € 15,33

  Add to cart
•

  Cylinder Base Gasket thickness: 0,30 mm Piaggio Group · 1A013232 Available

  € 13,13

  Add to cart
•

  Cylinder Base Gasket thickness: 0,20 mm Piaggio Group · 1A013231 Available

  € 13,56

  Add to cart

9 40 - Dowel pin Available 435571

•

  Adapter Sleeve Piaggio Group · 435571 · Quantity needed: 4 Available

  € 0,99

  Add to cart

10 5 - Screw (M6x50) Available B016775

•

  Flanged Screw M6x50 Piaggio Group · B016775 Available

  € 1,48

  Add to cart
