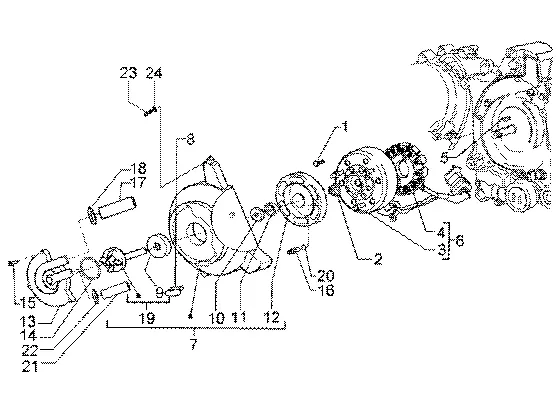

Exploded view — Flywheel Magneto
‹ Back to model
Piaggio BV 200 (U.S.A.) 1998–2005
Products
1 Screw Available
-
Screw M5x22 Piaggio Group · 828662 · Quantity needed: 2 Available€ 1,52
2 Flanged nut M12 Available
-
Standard nut Piaggio Group · B015804 Available€ 8,00
3 Rotor cpl. Available
-
Flywheel Piaggio Group · 584689 Available€ 182,79
4 Stator Available
-
Armature Plate / Stator Plate, Kokusan Piaggio Group · 584690 Available€ 94,69
5 Woodruff key Available
-
Alternator wedge, 12,6x5x3 Piaggio Group · 000267 Available€ 2,77
6 Stator Available
-
Alternator Piaggio Group · 58141R Available€ 248,86
7 Ignition cover
-
8403215 Ignition coverNo longer available
8 Cover Available
-
Lid Piaggio Group · 825529 Available€ 3,17
9 Water pump mechanical seal (20 mm) Available
-
O-ring Set Piaggio Group · 497486 Available€ 14,11
10 Water pump mechanical seal (20 mm) Available
-
O-ring Set Piaggio Group · 497486 Available€ 14,11
11 Bearing
-
82772R Bearing Quantity needed: 2No longer available
12 Pump impeller drive key Available
-
Water Pump Wheel Piaggio Group · 872908 Available€ 14,67
13 Water pump cover Available
-
Water Pump Cover Piaggio Group · 486237 Available€ 28,30
14 Gasket - water pump Available
-
O-Ring Piaggio Group · 485080 Available€ 2,98
16 Special screw Available
-
Screw Piaggio Group · 82869R · Quantity needed: 3 Available€ 17,09
17 Water hose Available
-
Pressure Pipe Piaggio Group · 878666 Available€ 14,41
18 Clamp Available
-
Hose Clamp Piaggio Group · CM001908 · Quantity needed: 2 Available€ 2,35
19 Water pump shaft assy. Available
-
Water Pump Shaft Piaggio Group · 841333 Available€ 105,56
20 Washer Available
-
Washer Piaggio Group · 828535 · Quantity needed: 3 Available€ 0,99
21 Water hose Available
-
Hose Piaggio Group · 434381 Available€ 10,45
22 5 - Clamp Available
-
Clamping Spring Piaggio Group · CM002908 Available€ 1,48
23 Screw Available
-
Allen screw Piaggio Group · 828493 · Quantity needed: 4 Available€ 0,99
24 Washer Available
-
Washer Piaggio Group · 006965 · Quantity needed: 4 Available€ 0,99
