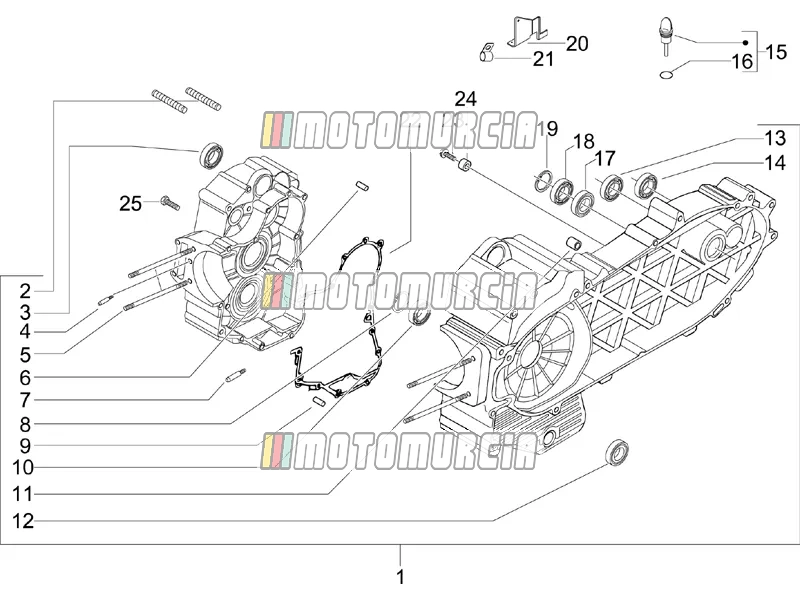

Exploded view — Crankcase

Products

1 Crankcase assy cat4 CM1561025004 No longer available

• CM1561025004 Crankcase assy cat4
  No longer available
•

  Crankshaft Housing Cat. 1 Piaggio Group · CM1568025001 Available

  € 2.310,91

  Add to cart
• CM1568025003 Crankcase assy cat3
  No longer available
•

  Crankshaft Housing Cat. 2 Piaggio Group · CM1568025002 Backorder

  € 556,53

  Add to cart

2 Stud bolt Available 1A003631R

•

  Stud Screw Piaggio Group · 1A003631R · Quantity needed: 4 Available

  € 14,57

  Add to cart

3 Bearing Available 82656R

•

  Ball bearing 6004 2RSH/C3, 20x42x12 mm Piaggio Group · 82656R · Quantity needed: 2 Available

  € 12,74

  Add to cart

4 Nozzle Available 825649

•

  Calibrated nozzle Piaggio Group · 825649 Available

  € 3,92

  Add to cart

5 Stud bolt Available 1A003080

•

  Stud Screw M10x1.25 Piaggio Group · 1A003080 · Quantity needed: 2 Available

  € 4,72

  Add to cart

6 Dowel pin Available B015957

•

  Adapter Sleeve 11x8,1x10 Piaggio Group · B015957 · Quantity needed: 4 Available

  € 1,26

  Add to cart

7 Nozzle Available 484034

•

  Jet Piaggio Group · 484034 Available

  € 8,58

  Add to cart

8 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

9 Dowel pin Available 484993

•

  Adapter Sleeve 5x8 Piaggio Group · 484993 · Quantity needed: 2 Available

  € 1,65

  Add to cart

10 Bearing Available 82668R

•

  Ball bearing 6303 C3H, 17x47x14 mm Piaggio Group · 82668R · Quantity needed: 2 Available

  € 30,73

  Add to cart

11 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

12 Oil seal Available 873932

•

  Shaft Seal 35x47x7 mm Piaggio Group · 873932 Available

  € 21,05

  Add to cart

13 Bearing Available 1A024412R

•

  Ball bearing 20x47x14 mm Piaggio Group · 1A024412R Available

  € 12,79

  Add to cart

14 Bearing Available 83018R

•

  Radial bearing TM6302Y, 15x42x13 mm Piaggio Group · 83018R Available

  € 11,14

  Add to cart

15 Complete oil level dipstick Available 832130

•

  Oil dipstick Piaggio Group · 832130 Available

  € 6,34

  Add to cart

16 Gasket ring Available 827085

•

  Oil seal 14,43x9,19x2,62 mm Piaggio Group · 827085 Available

  € 0,99

  Add to cart

17 Oil seal 25x40x7 Available 873931

•

  Shaft Seal Piaggio Group · 873931 Available

  € 17,47

  Add to cart

18 Bearing Available 825233

•

  Ball bearing 6205 ETN9/C4, 25x52x15 mm Piaggio Group · 825233 Available

  € 12,92

  Add to cart

19 Seeger Available B015959

•

  Circlip 25x26,9x1,2 mm Piaggio Group · B015959 Available

  € 1,48

  Add to cart

20 Bracket Available 834911

•

  Lever Piaggio Group · 834911 Available

  € 18,94

  Add to cart

21 Clamp Available 564629

•

  Clamp Piaggio Group · 564629 Available

  € 3,93

  Add to cart

22 Half crankcase gasket Available 872909

•

  Gasket Piaggio Group · 872909 Available

  € 22,63

  Add to cart

23 Screw Available 434429

•

  Screw M6x70 Piaggio Group · 434429 Available

  € 2,77

  Add to cart

24 Spacer Available 244585

•

  Spacer disc Piaggio Group · 244585 Available

  € 2,18

  Add to cart

25 Screw Available 828909

•

  Flanged Screw M6x65 Piaggio Group · 828909 · Quantity needed: 13 Available

  € 0,99

  Add to cart
