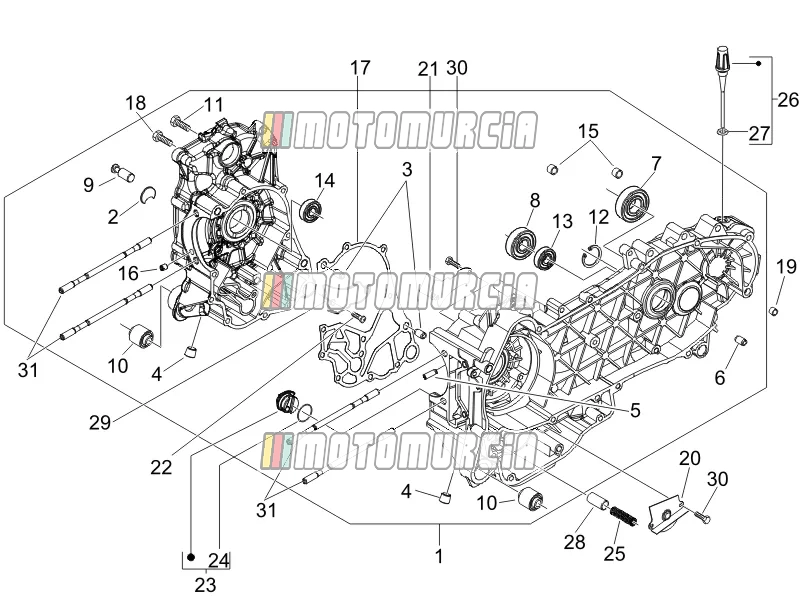

Exploded view — Crankcase

‹ Back to model
Piaggio Carnaby 200 2007 Piaggio Carnaby 200 2007
Crankcase

Products

1 Crankcase assy CM1529035002 No longer available
  • CM1529035002 Crankcase assy
    No longer available
  • Crankshaft Housing Cat. 1 Piaggio Group · CM1529035001 Available
    € 1.049,34
2 Cup Available 840489
3 Dowel pin Available B015956
4 Cover M12x1,5 Available B015433
  • Screw Plug M12x1.5 Piaggio Group · B015433 · Quantity needed: 2 Available
    € 8,86
5 Nozzle Available 484034
  • Jet Piaggio Group · 484034 Available
    € 8,58
6 Bush Ø8xØ12x8 Available 431860
7 Bearing Available 83018R
8 Bearing Available 1A024412R
9 Springs fixing pin Available 483785
  • Bolts Piaggio Group · 483785 Available
    € 5,78
10 Silentblock - engine mount Available 486081
  • Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available
    € 10,29
12 Seeger Available B015959
13 Oil seal Available 82878R
14 Oil seal Available 82898R
15 Dowel pin Available B015957
16 Nozzle D 1.1 Available 844582
  • Jet Piaggio Group · 844582 Available
    € 8,68
17 Gasket - crankcase Available 875111
18 Screw Available B016425
  • Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 11 Available
    € 1,82
19 Dowel pin Available 277916
20 Lower oil bulkhead Available 483767
21 Upper oil bulkhead Available 485047
22 Screw Available 1A003111
  • Screw M5x10 Piaggio Group · 1A003111 Available
    € 3,06
23 Filter door insert Available 845861
  • Filter Insert Piaggio Group · 845861 Available
    € 11,27
24 O-Ring Available 431065
  • Oil seal Piaggio Group · 431065 Available
    € 1,21
25 Spring Available 485655
  • Spring Piaggio Group · 485655 Available
    € 1,65
26 Complete oil level dipstick Available 832130
  • Oil dipstick Piaggio Group · 832130 Available
    € 6,34
27 Gasket ring Available 827085
28 Oil pressure valve Available 829661
29 Plate Backorder 876657
  • Guide Plate Piaggio Group · 876657 Backorder
    € 5,07
30 Screw Available 830061
31 Stud bolt (125 - 200 ccm) Available 1A003629R
  • Stud Screw Piaggio Group · 1A003629R · Quantity needed: 4 Available
    € 12,02

More drawings of this model

View all →
