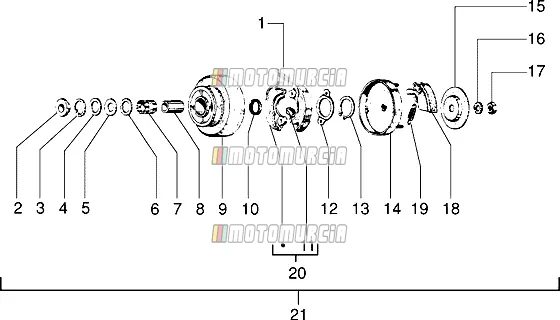

Exploded view — Clutch Unit

Products

1 Spring 121537 No longer available

• 121537 Spring Quantity needed: 2
  No longer available

2 Spacer 104040 No longer available

• 104040 Spacer
  No longer available

3 Circlip 25x26.9x1.2 Available 000674

• 000674 Circlip 25x26.9x1.2


  Circlip 25x26,9x1,2 mm Piaggio Group · B015959 ↻ Replaces 000674, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

4 Washer 103557 No longer available

• 103557 Washer
  No longer available

5 Washer 103556 No longer available

• 103556 Washer
  No longer available

6 Washer 103557 No longer available

• 103557 Washer
  No longer available

7 Drawn cap Available 120668

•

  Needle bearing HK 16/22, 16x22x22 mm Piaggio Group · 120668 Available · Shipped in 3–5 working days

  € 9,41

  Add to cart

8 Bush 1042345 No longer available

• 1042345 Bush
  No longer available
• 2278915 Bush
  No longer available

9 Bush 1651495 No longer available

• 1651495 Bush
  No longer available
• 227936 Pulley
  No longer available

10 Ring 124571 No longer available

• 124571 Ring
  No longer available

11 Buffer 120262 No longer available

• 120262 Buffer Quantity needed: 2
  No longer available

12 Push ring 220441 No longer available

• 220441 Push ring
  No longer available

13 Snap ring Available 006426

•

  Circlip Piaggio Group · 006426 Available · Shipped in 3–5 working days

  € 3,19

  Add to cart

14 Not available 4300555 No longer available

• 4300555 Not available
  No longer available

15 Disc 104488 No longer available

• 104488 Disc
  No longer available

16 Washer 016348 No longer available

• 016348 Washer
  No longer available

17 Nut 015229 No longer available

• 015229 Nut
  No longer available

18 Clutch Available 2498134

•

  Fly Weights Piaggio Group · 2498134 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 21,44

  Add to cart

19 Spring 121753 No longer available

• 121753 Spring Quantity needed: 3
  No longer available
• 289451 Spring Quantity needed: 3
  No longer available

20 Centrifugal weights for starter Available 2498124

•

  Fly Weights Piaggio Group · 2498124 Available · Shipped in 3–5 working days

  € 27,10

  Add to cart

21 Clutches unit 1651505 No longer available

• 1651505 Clutches unit
  No longer available
• 4803594 Drum
  No longer available
