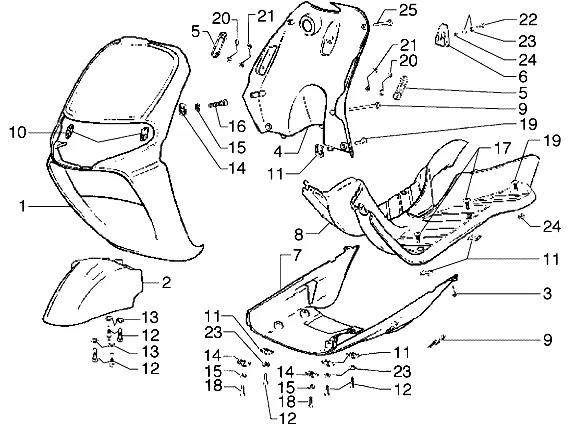

Exploded view — Front Shield-footboard-spoiler

‹ Back to model

Piaggio Diesis 50 1998–2005

Products

Position: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

1 Front fairing 00G015023555 No longer available

00G015023555 Front fairing
No longer available
Front Shield Piaggio Group · 20G01502351 Backorder

€ 290,25
ODN00G01512353 Front fairing
No longer available
00G015123515 Front fairing
No longer available

2 Front mudguard 00G007130215 No longer available

00G007130215 Front mudguard
No longer available
00G007130225 Front mudguard
No longer available
00G00713023 Front mudguard
No longer available
00G007030255 Front mudguard
No longer available

3 Screw Available 00011051601

Thread Screw 5x16 mm Piaggio Group · 00011051601 · Quantity needed: 2 Available

€ 0,99

4 Counter shield 00G06803431 No longer available

00G06803431 Counter shield
No longer available

5 Reflector, amber Available AP8124719

Reflector yellow Piaggio Group · AP8124719 · Quantity needed: 2 Available

€ 17,01

6 Hook for bag ODN00G06301101 No longer available

ODN00G06301101 Hook for bag
No longer available

7 LOWER FRAME SHIELD Backorder 86690100W2N

Spoiler, black Piaggio Group · 86690100W2N Backorder

€ 182,46

8 Footrest 00G01504091 No longer available

00G01504091 Footrest
No longer available

9 Screw Available 00011055001

Thread Screw 5x50 mm, self-tapping Piaggio Group · 00011055001 · Quantity needed: 2 Available

€ 1,19

10 Stop buffer ODN00G05700101 No longer available

ODN00G05700101 Stop buffer Quantity needed: 2
No longer available

11 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 · Quantity needed: 8 Available

€ 2,04

12 Screw Available 00012161600

Screw M6 Piaggio Group · 00012161600 · Quantity needed: 8 Available

€ 0,99

13 Washer Available 00D01200171

Shim Ø 6,00 mm Piaggio Group · 00D01200171 · Quantity needed: 4 Available

€ 1,48

14 Clip nuts (M5) Available 00G04401462

Sheet nut M5 Piaggio Group · 00G04401462 · Quantity needed: 2 Available

€ 1,48

15 Washer gasket Available 847226

Shim Piaggio Group · 847226 · Quantity needed: 2 Available

€ 0,99

16 Screw Available 00000004515

Allen screw M5 Piaggio Group · 00000004515 · Quantity needed: 2 Available

€ 1,44

17 Screw (Spec.) ODN00G01504701 No longer available

ODN00G01504701 Screw (Spec.) Quantity needed: 4
No longer available

18 Screw Available 00012151500

Screw M5 Piaggio Group · 00012151500 · Quantity needed: 2 Available

€ 2,47

19 Screw 00G01503701 No longer available

00G01503701 Screw Quantity needed: 4
No longer available

20 Washer Available 847181

Washer Piaggio Group · 847181 · Quantity needed: 4 Available

€ 21,21

21 Self locking nut 4m70 ODN00000023040 No longer available

ODN00000023040 Self locking nut 4m70 Quantity needed: 4
No longer available

22 Screw ODN00008062500 No longer available

ODN00008062500 Screw
No longer available

23 Washer Available 00000031060

Washer Ø 6,00 mm Piaggio Group · 00000031060 · Quantity needed: 2 Available

€ 0,99

24 Nut Available 00000023060

Standard nut M6 Piaggio Group · 00000023060 · Quantity needed: 3 Available

€ 0,99

25 Screw ODN00011052201 No longer available

ODN00011052201 Screw Quantity needed: 2
No longer available
