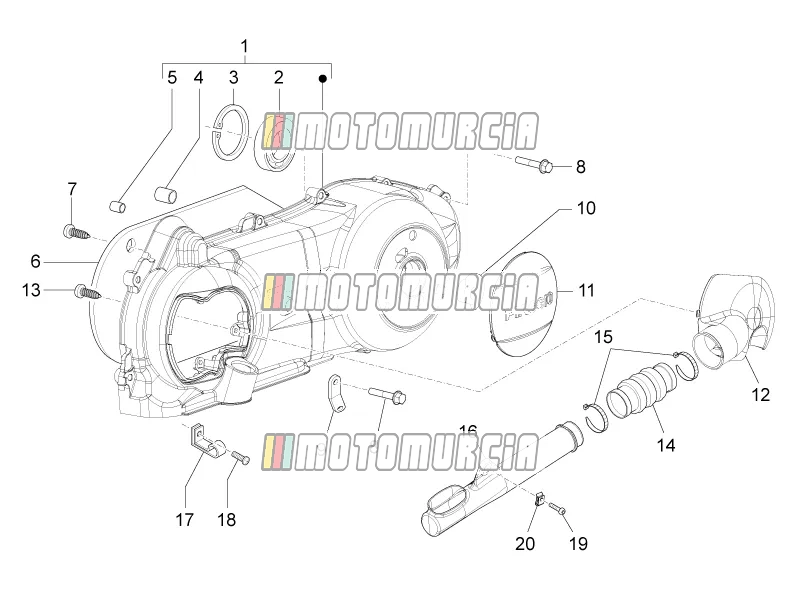

Exploded view — Crankcase Cover - Crankcase Cooling

‹ Back to model
Piaggio Fly 150 2012 Piaggio Fly 150 2012
Crankcase Cover - Crankcase Cooling

Products

1 Transmission cover cpl. Available 8413805
  • Housing cover Piaggio Group · 8413805 Available
    € 119,84
2 Bearing Available 4789853
3 Seeger Available 006635
  • Snap-in Ring Piaggio Group · 006635 Available
    € 1,84
4 Bush Ø8xØ12x8 Available 431860
5 Dowel pin Available B015956
6 Air deflector Backorder 873682
7 Screw Available 430264
8 Screw Available B016792
9 4 - Hose clamp Available 844964
  • Clamp Piaggio Group · 844964 Available
    € 2,27
10 3 - Retainer buffer Available 871458
  • Buffer Piaggio Group · 871458 · Quantity needed: 3 Available
    € 1,89
11 Plug Available CM155110
  • Lid Piaggio Group · CM155110 Available
    € 8,55
12 Cooling Cover Available 876166
13 Screw Available 270793
  • Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 3 Available
    € 0,99
14 Hose Available 672258
15 Clamp Available 709519
  • Clamp Piaggio Group · 709519 · Quantity needed: 2 Available
    € 0,99
16 Belt cooling conduit Available 673825
  • Pipe Piaggio Group · 673825 Available
    € 12,83
17 Clamp Available 482291
  • Clamp Piaggio Group · 482291 Available
    € 1,51
19 Screw Available CM179202
  • Screw Piaggio Group · CM179202 · Quantity needed: 2 Available
    € 1,48
20 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available
    € 2,04
