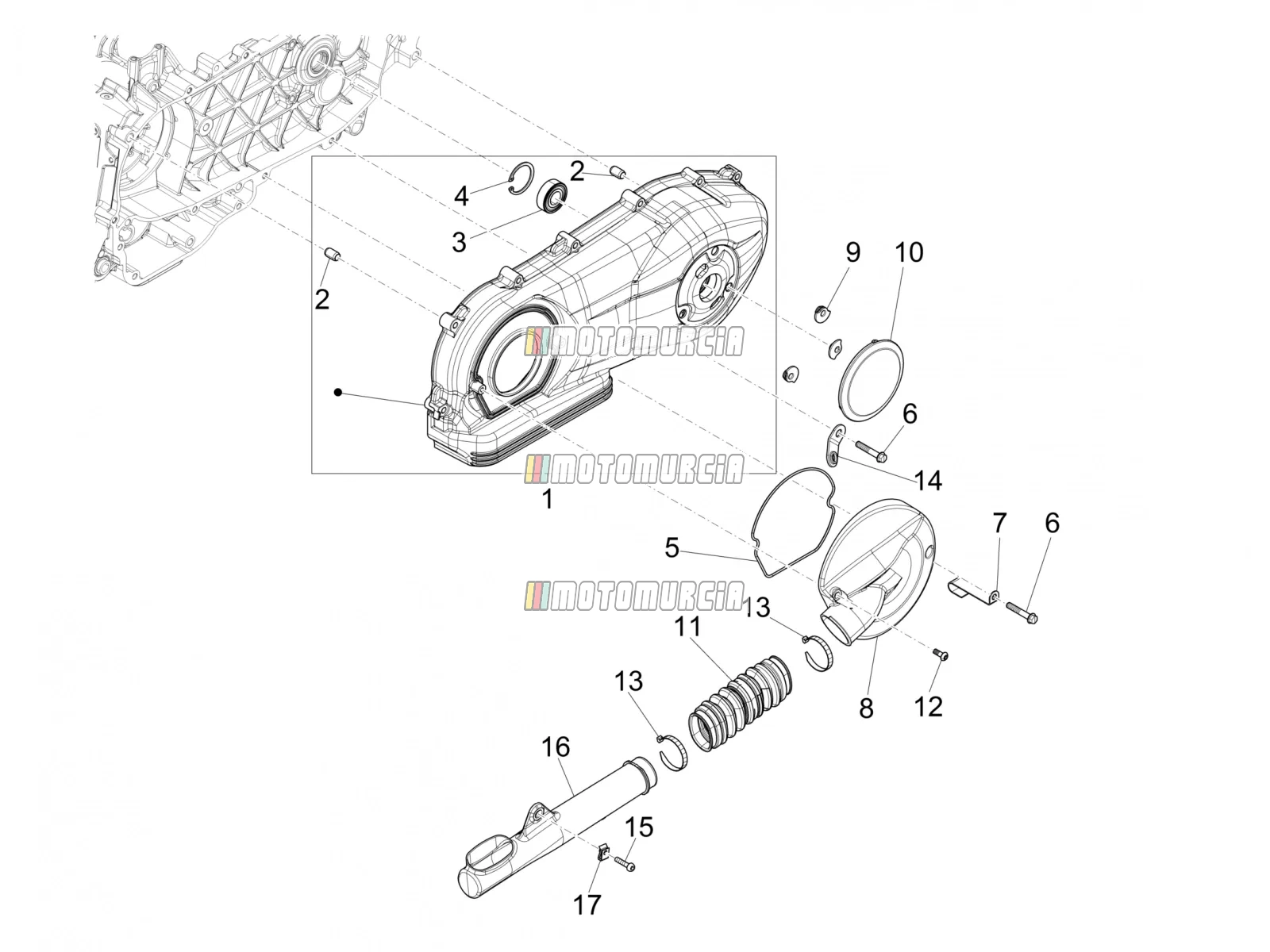

Exploded view — Crankcase Cover - Crankcase Cooling

‹ Back to model
Piaggio Fly 150 3V ie 2013 Piaggio Fly 150 3V ie 2013
Crankcase Cover - Crankcase Cooling

Products

1 Transmission cover cpl. Backorder B0176695
  • Housing cover Piaggio Group · B0176695 Backorder
    € 99,99
2 Dowel pin Available B015956
3 Bearing Available 4789853
4 Seeger Available 006635
  • Snap-in Ring Piaggio Group · 006635 Available
    € 1,84
5 Cover gasket Available B016453
  • Cover Gasket Piaggio Group · B016453 Available
    € 6,03
6 Screw Available 414838
  • Screw M6x35 Piaggio Group · 414838 · Quantity needed: 10 Available
    € 1,48
7 Clamp Available 668643
  • Clamp Piaggio Group · 668643 Available
    € 5,66
8 Cooling Cover Backorder 1A001166
9 3 - Retainer buffer Available 871458
  • Buffer Piaggio Group · 871458 · Quantity needed: 3 Available
    € 1,89
10 Transmission cover Backorder CM166002
  • Lid Piaggio Group · CM166002 Backorder
    € 10,13
11 Hose Available 672258
12 Screw (M5x14) Available B016455
  • Screw M5x14 Piaggio Group · B016455 · Quantity needed: 2 Available
    € 1,48
13 Clamp Backorder 781328
  • Clamp Piaggio Group · 781328 · Quantity needed: 4 Backorder
    € 7,15
14 4 - Hose clamp Available 844964
  • Clamp Piaggio Group · 844964 Available
    € 2,27
15 Screw Available CM179201
  • Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 2 Available
    € 0,99
16 Belt cooling conduit Available 673825
  • Pipe Piaggio Group · 673825 Available
    € 12,83
17 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available
    € 2,04
