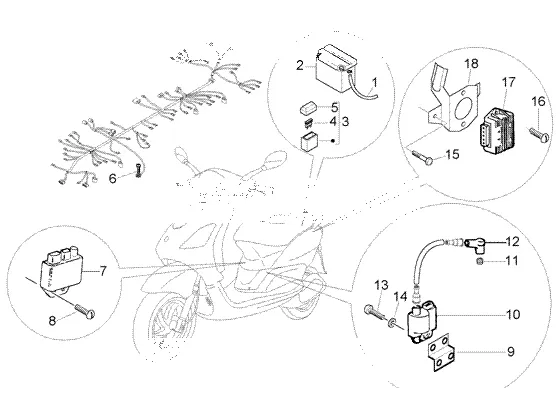

Exploded view — Electrical Device

Products

1 Breather pipe Available 582520

•

  Breather Pipe Piaggio Group · 582520 Available

  € 6,82

  Add to cart

2 Battery Available 584810

•

  Batterie YB9-B, 12 V, 9 A, Standard, without acid pack, 138x77x141 mm Piaggio Group · 584810 Available

  € 81,88

  Add to cart

3 Fuse holder Available 580653

•

  Fuse Box Piaggio Group · 580653 · Quantity needed: 2 Available

  € 14,21

  Add to cart

4 Fuse (7,5A) Available 252945

•

  Fuse 7,5 A Piaggio Group · 252945 · Quantity needed: 4 Available

  € 2,86

  Add to cart
•

  Fuse 15 A Piaggio Group · 290860 Available

  € 2,86

  Add to cart

5 Cover Available 290404

•

  Lid Piaggio Group · 290404 Available

  € 9,08

  Add to cart

7 Device Backorder 584701

•

  Control unit Piaggio Group · 584701 Backorder

  € 387,59

  Add to cart

8 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 · Quantity needed: 2 Available

  € 1,48

  Add to cart

9 Bracket Available 583895

•

  Bracket Piaggio Group · 583895 Available

  € 8,30

  Add to cart

10 Ignition coil Available 58083R

•

  Ignition Coil Piaggio Group · 58083R Available

  € 48,25

  Add to cart

11 Protection collar Available 436919

•

  Protection piece Piaggio Group · 436919 Available

  € 2,47

  Add to cart

12 Spark plug cap Available 969348

•

  Spark Plug Connector for connection nut, L05EA, 90° Piaggio Group · 969348 Available

  € 16,29

  Add to cart

13 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 Available

  € 0,99

  Add to cart

14 Washer Available 012528

•

  Washer Piaggio Group · 012528 Available

  € 1,44

  Add to cart

15 Screw Available 969296

•

  Flanged Screw M6x10 Piaggio Group · 969296 · Quantity needed: 2 Available

  € 1,48

  Add to cart

16 Screw Available 031091

•

  Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 2 Available

  € 0,99

  Add to cart

17 Voltage regulator 58090R5 No longer available

• 58090R5 Voltage regulator
  No longer available

18 Bracket Backorder 582030

•

  Bracket Piaggio Group · 582030 Backorder

  € 11,97

  Add to cart
