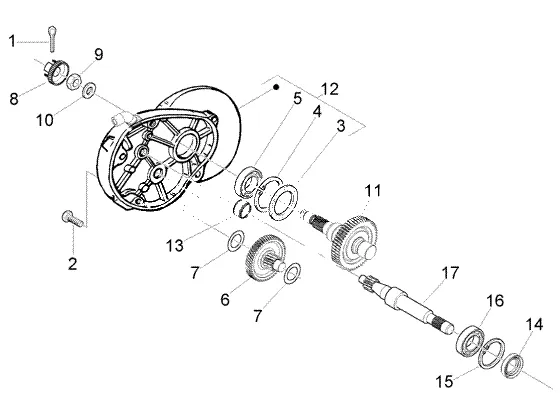

Exploded view — Rear Wheel Shaft

Products

1 Pin, split Available 012789

•

  Split Pin Piaggio Group · 012789 Available

  € 1,66

  Add to cart

2 5 - Screw Available B016805

•

  Flanged Screw M8x45 Piaggio Group · B016805 · Quantity needed: 5 Available

  € 1,48

  Add to cart

3 Gasket ring Available 478498

•

  Shaft Seal Piaggio Group · 478498 Available

  € 6,98

  Add to cart

4 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

5 Bearing Available 434735

•

  Wheel bearing 6204 2RSH, 20x47x14 mm Piaggio Group · 434735 Available

  € 18,77

  Add to cart

6 Transmission shaft Available 4808425

•

  Primary Piaggio Group · 4808425 Available

  € 167,68

  Add to cart

7 Shim washer Available 288639

•

  Washer Piaggio Group · 288639 · Quantity needed: 2 Available

  € 0,99

  Add to cart

8 Nut hold cap Available 1C004746

•

  Covering Cap Piaggio Group · 1C004746 Available

  € 3,94

  Add to cart

9 Nut Available 563728

•

  Standard nut Piaggio Group · 563728 Available

  € 2,77

  Add to cart

10 Flat washer Available 159347

•

  Washer Piaggio Group · 159347 Available

  € 2,70

  Add to cart

11 Wheel axle Backorder 8250845

•

  Wheel Axle Piaggio Group · 8250845 Backorder

  € 208,18

  Add to cart

12 Side cover B0146385 No longer available

• B0146385 Side cover
  No longer available

13 Compensator ring Available 478197

•

  Sleeve Piaggio Group · 478197 Available

  € 4,85

  Add to cart

14 Gasket ring Available 480066

•

  Shaft Seal 28x17x5 mm Piaggio Group · 480066 Available

  € 12,17

  Add to cart

15 Seeger Available 480953

•

  Snap-in Ring Piaggio Group · 480953 Available

  € 1,65

  Add to cart

16 Bearing Available 435363

•

  Ball bearing 6203, 17x40x12 mm Piaggio Group · 435363 Available

  € 11,19

  Add to cart

17 Driven pulley shaft (Z=14) Available 480848

•

  Input Shaft Piaggio Group · 480848 Available

  € 159,60

  Add to cart
